Popis produktu:

Description

Outdoor 8-port Fast Ethernet PoE switch 2 Gigabit uplink combo ports, IP67, IK10, 140W

Outdoor 8 port PoE switch with a range of up to 250 meters for surveillance cameras or access points
All-in-one device: PoE switch, power supply and overvoltage protection in a weatherproof housing
Extensive mode for ranges up to 250 meters in 802.3af PoE mode, switchable
Overvoltage and short circuit protection for every PoE port
Easy outdoor installation and IK10 vandalism protection
Wide temperature range: -40°C – +60°C
Supports PoE 802.3af/at with a range of up to 250 meters at 10Mbps

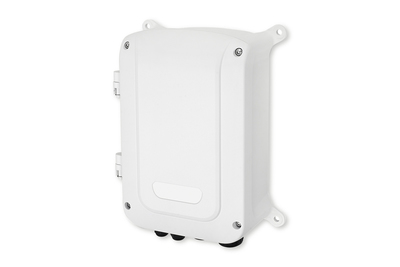

The DIGITUS® outdoor PoE switch is a highquality PoE switch in a weatherproof housing with the IP67 protection class. The housing is very sturdy and conforms to the IK10 vandalism protection class. The PoE switch offers a maximum range of up to 250 meters for PoE 802.3af devices and up to 200 meters for PoE 802.3at devices with a transmission rate of 10Mbps. When using the standard 100m range, the transmission rate is 100Mbps. This outdoor switch serves as an all-in-one device that is ready for use immediately after connecting it to the mains voltage. The device requires no settings to be made thanks to plug and play. If you plug your PoE devices into a free PoE port, the switch will automatically detect power supply and PoE mode. The all-in-one solution for outdoor PoE applications requires no separate power supply and no external overvoltage protection.

Technical Details
PoE ports: 8x 10/100Mbps
PoE port @ Ex mode OFF: 8x 30W PoE ports
PoE port @ Ex mode ON: 2x 30W EXPoE + 6x 30W PoE ports
2 x Combo Gigabit uplink ports: 2 x SFP / 2 x RJ45 (2 x 1000 Mbps)
Bandwith: 5.6 Gbps (Backplane)
Input voltage: 100V/AC - 240V/AC
Backup voltage: 48 – 56V/DC
Output voltage per PoE port: 54V/DC / PoE IEEE 802.3af (max. 15.4W) / PoE IEEE802.3at (max. 30W)
PoE overvoltage protection up to 12kV
AC overvoltage protection up to 40kV
PoE budget: 140W
PoE switch total output: 150W Max.
Extensive mode for ranges up to 250 meters with a transmission rate of 10Mbps
Protection level: IP67
Vandalism protection class: IK10
Dimensions: 315.4 x 245.8 x 118 mm
Weight: 4.3kg
Operating temperature: -40°C – 60°C
Storage temperature: -40°C – 85°C
Operating humidity: 5 – 95% non-condensing
Notice: If you use PoE ports for cross-switch connections, the 12 kv surge protection will not apply.
Additionally you can use port 4 and 5 as uplink ports. The surge protection will not apply in this case.

Package content
Outdoor PoE switch
2x M25, 4x M16 cable glands / 1x Torx screwdriver
1x German / English operating manual
