Popis produktu:

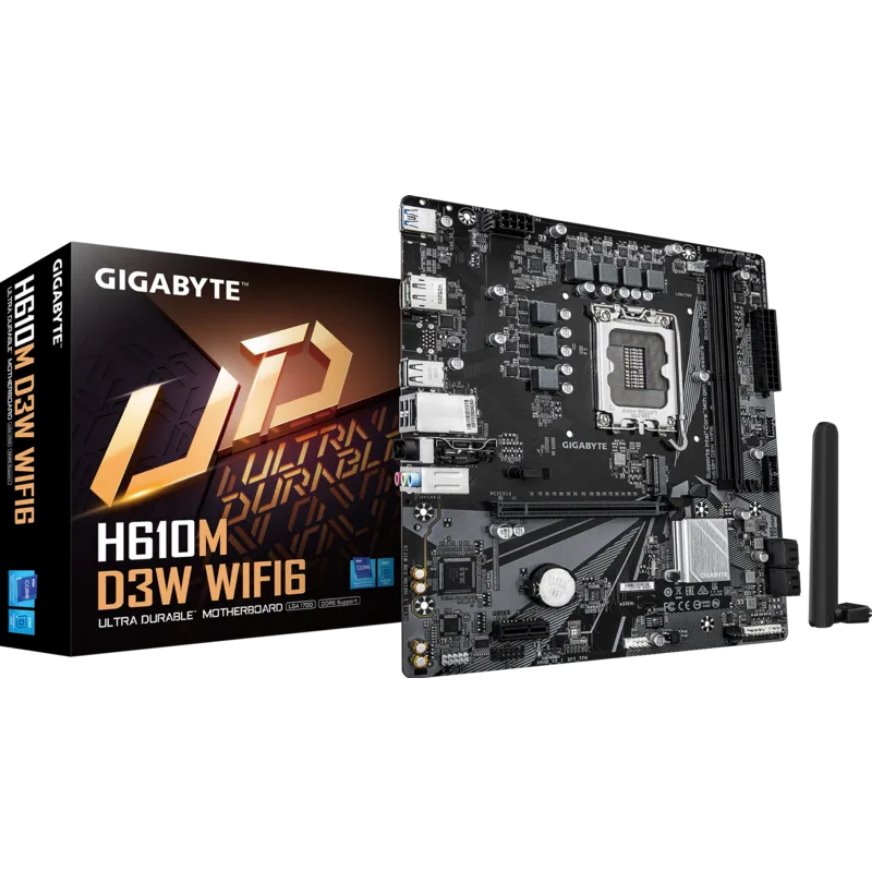

Intel® H610 Motherboard with 5+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, GbE LAN, Wi-Fi 6 802.11ax, Anti-Sulfur Resistor, Smart Fan 6

   Supports Intel® Core™ 14th/ 13th/ 12th processors
   Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
   5+1+1 Hybrid Digital VRM Design
   Fast Networks:Wi-Fi 6 802.11ax, GbE LAN
   NVMe PCIe 3.0 x4 M.2
   DisplayPort / HDMI for Multiple Display
   High Quality Audio Capacitors and Audio Noise Guard
   Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
   GIGABYTE CONTROL CENTER (GCC), Simple and Easy Use
   Anti-Sulfur Resistors Design
   CPU
   LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
   (Go to GIGABYTE's website for the latest CPU support list.)
   L3 cache varies with CPU

   Chipset
   Intel® H610 Express Chipset

   Memory
   14th and 13th Generation Intel® Core™ i9/i7 Processors:
   - Support for DDR5 5600/5200/4800/4400 MT/s memory modules
   13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium®Gold and Celeron® Processors:
   - Support for DDR5 4800/4400 MT/s memory modules
   2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
   Dual channel memory architecture
   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for Extreme Memory Profile (XMP) memory modules
   (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

   Onboard Graphics
   Integrated Graphics Processor-Intel® HD Graphics support:
   - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

   * Support for DisplayPort 1.2 version and HDCP 2.3

   - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support for native HDMI 2.1 TMDS compatible ports.

   (Graphics specifications may vary depending on CPU support.)

   Audio
   Realtek® Audio CODEC
   High Definition Audio
   2/4/5.1/7.1-channel

   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

   LAN
   Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

   Wireless Communication module
   Realtek® Wi-Fi 6 RTL8851BE
   WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
   BLUETOOTH 5.3
   Support for 11ax 80MHz wireless standard
   (Actual data rate may vary depending on environment and equipment.)

   * Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.

   Expansion Slots
   CPU:
   - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
   Chipset:
   - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

   Storage Interface
   Chipset:
   - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
   - 4 x SATA 6Gb/s connectors

   USB
   Chipset:
   - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
   - 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header)
   - 2 x USB 2.0/1.1 ports available through the internal USB header
   Chipset+USB 2.0 Hub:
   - 4 x USB 2.0/1.1 ports on the back panel

   Internal I/O Connectors
   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x CPU fan header
   2 x system fan headers
   2 x addressable RGB Gen2 LED strip headers
   1 x M.2 Socket 3 connector
   4 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x USB Type-C® header, with USB 3.2 Gen 1 support
   1 x USB 3.2 Gen 1 header
   1 x USB 2.0/1.1 header
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
   1 x serial port header
   1 x Clear CMOS jumper

   Back Panel Connectors
   1 x DisplayPort*
   1 x HDMI port*
   1 x USB 3.2 Gen 1 port
   4 x USB 2.0/1.1 ports
   1 x RJ-45 port
   2 x antenna connectors
   3 x audio jacks

   * Actual support may vary by CPU.

   I/O Controller
   iTE® I/O Controller Chip

   H/W Monitoring
   Voltage detection
   Temperature detection
   Fan speed detection
   Water cooling flow rate detection
   Fan fail warning
   Fan speed control

   * Whether the fan speed control function is supported will depend on the fan you install.

   BIOS
   1 x 128 Mbit flash
   Use of licensed AMI UEFI BIOS
   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

   Unique Features
   Support for GIGABYTE Control Center (GCC)

   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

   Support for Q-Flash
   Support for Smart Backup

   Bundled Software
   Norton® Internet Security (OEM version)

   Operating System
   Support for Windows 11 64-bit
   Support for Windows 10 64-bit

   Form Factor
   Micro ATX Form Factor; 24.4cm x 22.0cm
