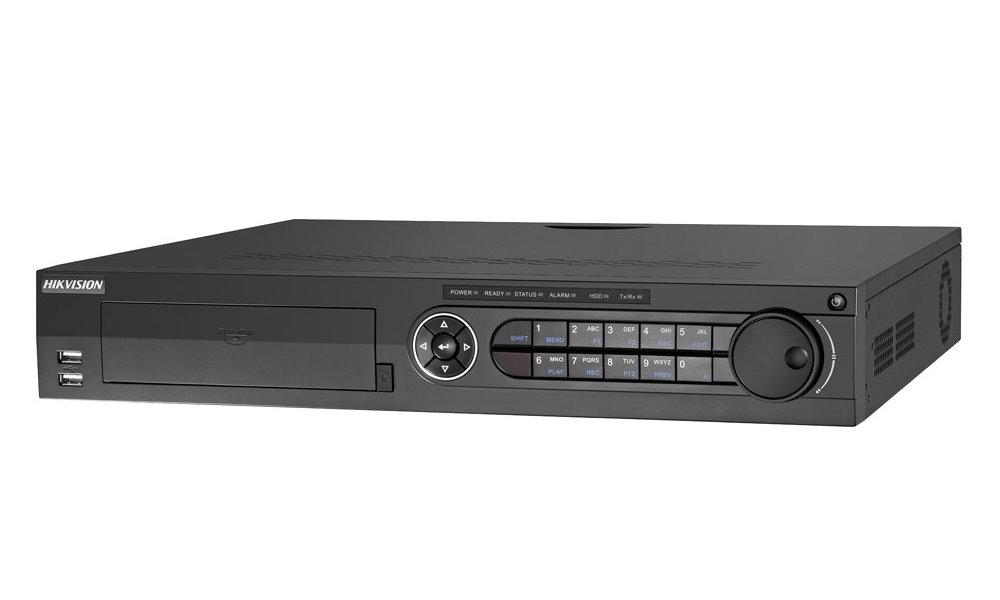

Hikvision DS-7308HQHI-K4 8 Channel 4HDD

Výrobca	HIKVISION
Kód	ITK724399
Part No.	DS-7308HQHI-K4
Dostupnosť po pobočkách	NRE NR BA
DPH	23%
Vaša cena s DPH	502.54 € bez DPH 408.57 €
Vaša cena bez DPH
Garancia ceny	Našli ste inde na internete nižšiu cenu? Informujte nás!
NÁKUP NA SPLÁTKY Kúpiť na splátky. do košíka
Objednať
ověřit dostupnost

zobraziť ďalšie detaily

Hodnotenie produktu

Hodnotené 2x

Záruka koncový zákazník: 2 Roky
Záruka firma: 2 Roky
Výrobca:

HIKVISION

Kód: ITK724399
Part No.: DS-7308HQHI-K4

Pridať k obľúbeným

Tlač

nový - Nastaviť strážneho psa

Vstup do diskusie - počet príspevkov:

Porovnať

Poslať emailom

Našli ste chybu

Hikvision DS-7308HQHI-K4 8 Channel 4HDD

Podrobnosti o produkte

Popis produktu:

H265+;H265;H264+;H264 , 8-ch video&4-ch audio input , Up to 10-ch IP up to 4MP reolution input , CH01-02: 3MP @ 15fps,4MP Lite @15fps ; CH03-08:4MP Lite@ 15fps/ch;1920×1080P @15 fps/ch , 4 SATA interface , Connectable to Turbo HD/HDCVI/AHD/CVBS signal input , HDMI/VGA&CVBS Output , 4K UHD output , 2 × USB 2.0 and 1 × USB 3.0 , 1.5U case , Alarm I/O:16/4 , 1 × Gigabit Ethernet NICs

Video/Audio Input
Audio Input:		4-ch
Video Compression:		H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input:		8-ch,BNC interface (1.0Vp-p, 75 ?)connection
Supported camera types:		Support HDTVI input: 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 Note: The 3 MP signal input is only available for the first channel of DS-7304HQHI-K4, the first 2 channels of DS-7308HQHI-K4, and the first 4 channels of DS-7316HQHI-K4. Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support HDCVI input: 1080p25, 1080p30, 720p25, 720p30 support CVBS input
Video Input Interface:		BNC (1.0 Vp-p, 75?)
Audio Compression:		G.711u
Audio Input Interface:		4-ch, RCA (2.0 Vp-p, 1 K?)
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 K?) (using audio input)

Video/Audio Output
CVBS Output:		1-ch,BNC(1.0Vp-p,75?),resolution:PAL:704x576,NTSC:704x480
HDMI/VGA Output:		HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
Recording resolution:		When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate:		Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bit Rate:		32 Kbps-6 Mbps
Stream Type:		Video/Video&Audio
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 k?) (using the audio input)
Audio Output:		1-ch RCA(Linear, 1k?)
Audio Bit Rate:		64kbps
Dual Stream:		Support
Synchronous Playback:		8-ch

Network management
Remote connections:		128
Network protocols:		TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF

Hard Disk Driver
Interface Type:		4 SATA Interfaces
Capacity:		Up to 10 TB capacity for each disk

External Interface
Network Interface:		1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface:		2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel
Alarm Input:		16-ch
Alarm Output:		4-ch

General
Power Supply:		100 to 240 VAC
Consumption:		≤ 40W(without hard disks)
Working Temperature:		-10 oC ~+55 oC (14 oF ~ 131 oF)
Working Humidity:		10% ~ 90%
Dimensions:		445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch)
Weight:		≤ 5 kg (11.0lb)
