Popis produktu:

Product Ordering Part # What's in the box

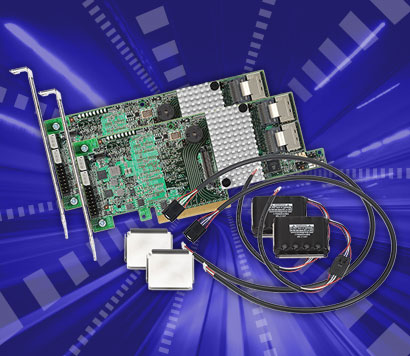

Syncro CS 9271-8i LSI00392 Two (2) Syncro CS 9271-8i HA controllers with CacheVault (each includes CV power module, CV clip and remote cable).
Quick Install Guide
Two (2) LP Brackets
Installation and support CD


Specifications Value
Physical Dimensions MD2 Low profile (6.6" x 2.536")
RAID Levels 0, 1, 5, 6, 10, 50, 60
Drive Support Per Controller 64 virtual drives (64 total in HA domain)
LUN Support Up to 64TB
Cache Protection MegaRAID® CacheVault flash cache protection (included)
Controller Operating Voltage +3.3V, +12V
RAID & HA Management MegaRAID Management Suite™: MegaRAID Storage Manager™, MegaCLI (command-line interface), WebBIOS, SMI-S
SSD Optimization Up to 32 SSDs (6G SAS) in a CacheCade® Read SSD pool
Up to 64 CacheCade virtual drives (The total # of HDD VD + CacheCade VDs in the HA domain must not exceed 64)
Up to 512GB CacheCade Read volume capacity in the HA domain
Host Bus Type x8 lane PCI Express® 3.0
Devices Supported Up to 96 6G SAS and/or NL-SAS dual-ported HDDs and SSDs (w/SCSI-3 PR)
Up to 31 6G SAS enclosure/expander devices
Maximum of 120 dual-ported SAS devices in the HA storage domain. Please see on-line compatibility matrix on lsi.com.
OS Support Microsoft® Windows Server® 2012 and Server 2008 R2, Red Hat Enterprise Linux 6.3 & 6.4, SuSE Linux Enterprise Server 11 SP2 & SP3
Internal Connectors 2 Mini-SAS SFF8087
MTBF 1,251,284 hours
Operating Temperature Maximum ambient: Controller Card with included CacheVault module: 55°C
Regulatory Certifications EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI;C-tick; RoHS; WEEE
Warranty 3 years, free technical support, advanced replacement option
