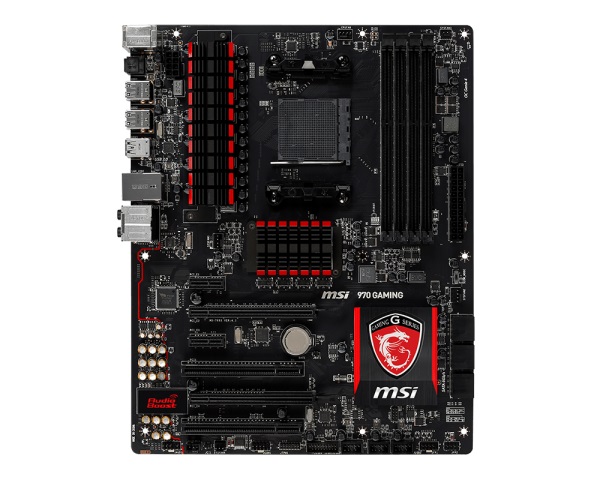

Chipset: AMD® 970 and SB950 Chipset Revize: Výrobce neuvádí Rozměrový formát: ATX Form Factor 30.5 cm x 24.4 cm Podpora pro procesory: AMD®FXTM/ Phenom™ II/ Athlon™ II and Sempron™ Patice procesoru: AM3/ AM3+ Sloty na paměti: 4 x DDR3 memory, Dual channel memory Podpora pro paměti: DDR3 2133(OC)/ 1866/ 1600/ 1333/ 1066 MHz Max.velikost operační paměti: 32 GB Grafická karta: Podporuje 2-Way AMD® CrossFire™ Technology* Zvuková karta: Realtek® ALC1150 Codec,7.1-Channel High Definition Audio (podpora S/PDIF output) Síťová karta: Killer E2205 Gigabit LAN controller Rozšiřující sloty: *2 x PCIe 2.0 x16 slots - PCI_E2 supports up to PCIe 2.0 x16 speed - PCI_E4 supports up to PCIe 2.0 x8 speed *2 x PCIe 2.0 x1 slots *2 x PCI slots RAID řadič: RAID 0, RAID1, RAID5 and RAID 10 SATA: 6 x SATA 6Gb/s ports PATA: Ne FDD konektor: Ne Firewire: Ne USB: *14x USB 2.0 ports (8 ports on the back panel, 6 ports available through the internal USB 2.0 connectors) *4 x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB 3.0 connector) Interní porty: *1 x 24-pin ATX main power connector *1 x 8-pin ATX 12V power connector *6 x SATA 6Gb/s connectors *3 x USB 2.0 connectors (supports additional 6 USB 2.0 ports) *1 x USB 3.0 connector *1 x 4-pin CPU fan connector *2 x 4-pin system fan connectors *2 x 3-pin system fan connectors *1 x Front panel audio connector *2 x System panel connectors *1 x Chassis Intrusion connector *1 x TPM module connector *1 x Serial port connector *1 x S/PDIF-Out connector *1 x Clear CMOS jumper *1 x Slow mode booting switch Externí porty: *1 x PS/2 keyboard/ mouse combo port *8 x USB 2.0 ports *2 x USB 3.0 ports *1 x Optical S/PDIF-Out connector *1 x LAN (RJ45) port *6 x OFC audio jacks BIOS: AMI BIOS Příslušenství: Výrobce neuvádí
