Overview
Details

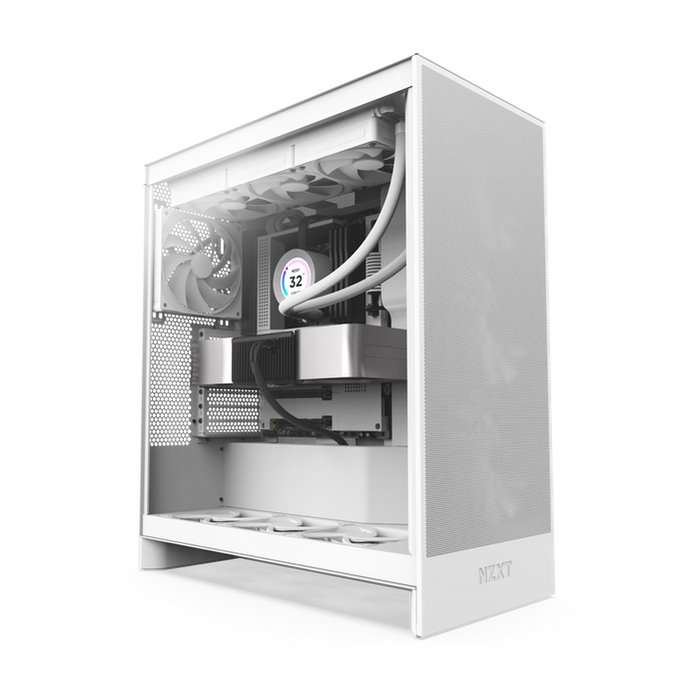

The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.

   Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
   Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling.
   High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
   Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
   Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
   Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
   Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
   Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

Inside the Box

   H7 Flow1

   F120Q Airflow Fan (pre-installed, case version)3

   Installation Accessories1

   Manual1

Tech Specs

Key Specs

   Motherboard Support:E-ATX (Up to 27.7mm), ATX, Micro-ATX, Mini-ITX

   Enclosure Type:Mid-Tower

   Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions

   Height (with feet):544 mm

   Width:244 mm

   Depth:468 mm

   Weight:11.13 kg

Compatibility & Clearance

   CPU Cooler Height:Up to 185 mm

   GPU Length:Up to 410 mm

   PSU Length:Up to 200 mm

   Cable Management:Up to 34.5 mm

   Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 57 mm

Front I/O Ports

   USB 3.2 Gen 1 Type-A:2

   USB 3.2 Gen 2 Type-C:1

   Headset Audio Jack:1

Expansion Slots

   Standard:7

   Vertical:0

Drive Bays

   2.5":2+2

   3.5":2

Fan Support

   Front:3 x 120 mm / 3 x 140 mm (3 x F120Q included)

   Top:3 x 120 mm / 2 x 140 mm

   Rear:1 x 120 mm / 1 x 140 mm

   Filters:High-Performance Mesh

Radiator Support

   Front:Up to 420 mm

   Top:Up to 360mm

   Rear:Up to 140mm

Fan Specs

   Model:F120Q Airflow Fan (Case Version)

   Speed:1,350 ± 150 RPM

   Airflow:60.2 CFM

   Static:1.05 mm - H2O

   Noise:24.1 dBA

   Fan Connector:3-pin

General

   Warranty:2 Years

   Model Number:CM-H72FB-01 (Black) / CM-H72FW-01 (White)

   UPC:810074845557 (Black) / 810074845564 (White)

   EAN:5056547205502 (Black) / 5056547205519 (White)
