Popis produktu:

Key Applications
Multi-Access Edge ComputingOutdoor DU of 5G ApplicationFlex-RAN, Open-RAN vBBU
Key Features
Socket P+ (LGA-4189) support 3rd Gen Intel® Xeon® Scalable processors
8 DIMMs; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM
2x 2.5" drive bays; 1 M.2 NVMe OR 1 M.2 SATA3
6 heavy duty fans with optimal fan speed control; 1 Air Shroud(s)
600W Redundant Power Supplies Level (92%+)

Product SKUs

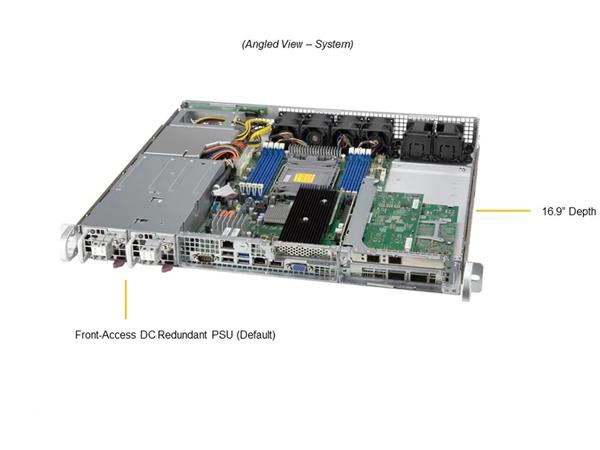

SuperServer SYS-110P-FDWTR (Silver)
Motherboard
Super X12SPW-TF
Processor
CPU
Single Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Core Count
Up to 32C/64T; Up to 48MB Cache per CPU
Note
Supports 85W - 205W TDP CPUs (Air Cooled)
System Memory
Memory
Memory Capacity: 8 DIMM slots
Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Memory Voltage
1.2 V
Error Detection
ECC
On-Board Devices
SATA
SATA3 (6Gbps); RAID 0/1 support
Chipset
Intel® C621A
Network Connectivity
2x 10GbE BaseT port(s)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
USB
2 USB 2.0 port(s) (2 front)
2 USB 3.2 port(s) (2 front)
Video
1 VGA port(s)
Management
Software
IPMI 2.0
KVM with dedicated LAN
Super Diagnostics Offline
SuperDoctor® 5
Supermicro Update Manager (SUM)
Supermicro Power Manager (SPM)
Supermicro Server Manager (SSM)
Redfish API
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
Security
Hardware
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
System Lockdown
PC Health Monitoring
CPU
Monitors for CPU Cores, Chipset Voltages, Memory
FAN
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature
CPU thermal trip support, PEPI
Monitoring for CPU and chassis environment
Chassis
Form Factor
1U Rackmount
Model
CSE-515B-R601W
Dimensions and Weight
Height
1.7" (44.5mm)
Width
17.2" (436.88mm)
Depth
16.9" (429.3mm)
Package
8" (H) x 27" (W) x 24" (D)
Weight
Net Weight: 10 lbs (4.54 kg)
Gross Weight: 15 lbs (6.8 kg)
Available Color
Silver
Front Panel
Buttons
Power On/Off
LEDs
LAN1 activity
LAN2 activity
Power status
Expansion Slots
PCI-Express (PCIe)
1 PCIe 4.0 x16LP slot(s)
2 PCIe 4.0 x16 FHFL slot(s)
Drive Bays / Storage
Drive Bays
2x 2.5" SATA drive bays
M.2
1 M.2 NVMe OR 1 M.2 SATA3
M-Key, 2280/22110
System Cooling
Fans
6 heavy duty fans with optimal fan speed control
Air Shroud
1 Air Shroud(s)
Power Supply
600W Redundant Typical 90%+ Level power supplies
Dimension
(W x H x L)
54.5 x 40 x 220 mm
5V SB
Max: 3A / Min: 0A
Output Type
Backplanes (gold finger)
Certification  Typical 90%+ Level

 [ Test Report ]
Operating Environment
Environmental Spec.
Operating Temperature:
  0°C ~ 40°C (32°F ~ 104°F)
Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
  8% to 90% (non-condensing)
Non-operating Relative Humidity:
  5% to 95% (non-condensing)
