Popis produktu:

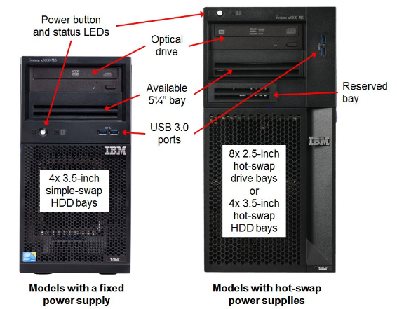

Form factor Two designs: Compact tower (can be a 4U rack form factor using the optional Tower-to-Rack Conversion Kit, 69Y5182). Standard Tower (can be a 5U rack form factor using the optional Tower-to-Rack Conversion Kit, 00J6353).
Processor                         One Intel “Haswell” processor as listed in model table or available CTO:
                                       One 2-core Intel Celeron Processor 2.8 GHz and 1333 MHz memory.
                                       One 2-core Intel Pentium Processor up to 3.4 GHz and 1600 MHz memory.
                                       One 2-core Intel Core i3 Processor up to 3.7 GHz and 1600 MHz memory.
                                       One 2 or 4-core Intel Xeon E3-1200 v3 up to 3.7 GHz & 1600 MHz memory.
                                       Supports EM64T for 32-bit and 64-bit operating systems and applications.
L3 cache                         Integrated in the processor:
                                       Up to 2 MB for Intel Celeron processors.
                                       Up to 3 MB L3 for Intel Pentium processors.
                                       Up to 4 MB L3 for Intel Core i3 processors.
                                        Up to 8 MB L3 for Intel Xeon E3-1200 v3 processors.
Chip set                            Intel C222, formerly known as Intel Lynx Point PCH and Intel Denlow platform.
Memory DIMM slots          Four DDR3 DIMM slots supporting UDIMMs. RDIMMs are not supported.
Memory capacity              Up to 32 GB with 8 GB DDR3 UDIMMs and four populated DIMM slots.
Memory protection            ECC.
Disk drive bays                 Compact tower: Up to four 3.5" simple-swap bays; Standard tower: Up to four 3.5" hot-swap bays (HDDs) or eight 2.5" hot-swap bays (HDDs or SSDs)
Maximum internal storage Up to 12 TB with 3 TB 3.5" SATA HDDs.
RAID support                    Software RAID 0, 1, or 10 with ServeRAID C100 controller, upgradeable to RAID 5. Optional hardware RAID with ServeRAID H1110 (RAID 0, 1, 1E, or 10) or M1115 (RAID 0, 1, 10, optional RAID 5, or 50) or
                                        M5110 (RAID 0, 1, 10, optional 5, 50, 6, or 60, and optional cache with flash backup). Additional upgrades for M5110. For compact tower: using the hardware RAID adapter also requires a RAID upgrade kit (00J6352).
Optical drive bays             One 5.25" HH bay, support for DVD-ROM or multiburner. Half-High SATA DVD-ROM or multiburner included in standard models (model specific).
Tape drive bays                One 5.25" HH bay, support for DDS, RDX, or LTO drive.
Network interfaces            Integrated two-port Gigabit Ethernet (Broadcom BCM5717). One port is shared with the IBM Integrated Management Module (IMM).
PCI expansion slots           Four PCI Express slots:
                                        Slot 1, PCIe 3.0 x16 (x8 wired), full-height, half-length.
                                        Slot 2, PCIe 3.0 x8 (x8 wired), full-height, half-length.
                                        Slot 2, PCIe 2.0 x8 (x4 wired), full-height, half-length.
                                        Slot 4, PCIe 2.0 x4 (x1 wired), full-height, half-length.
Ports Front:                      Two USB 3.0 ports. Rear: Four USB 2.0, one DB-15 video, one DB-9 serial, two RJ-45 Gigabit Ethernet network ports (one dedicated and one shared with the IMM2 management processor). Internal: One USB 2.0 port for internal USB tape drive.
Cooling                             Compact tower: Up to two speed-controlled non-redundant fans. A second fan is required if two or more adapters are installed (Thermal Solution Fan kit, 46W9177, optional). Optional Operating Temperature Enhancement Kit, 00Y8197, to enable the server to operate in a 40°C environment with lower acoustic noise.
                                        Standard tower: Up to two speed-controlled non-redundant fans. A second fan is required if two or more adapters are installed (Thermal Solution Fan kit, 00Y8200, included in standard models). Optional Operating Temperature Enhancement Kit, 00FK940, to enable the server to operate in a 40°C environment with lower acoustic noise.
Power supply                    Compact tower: One fixed (non-hot-swap) power supply, model dependent: Either 300 W ac 80 PLUS Bronze power supply or 350 W ac power supply.
                                       Standard tower: Up to two 430 W hot-swap 80 PLUS Silver redundant power supplies.
Hot-swap parts                 Compact tower: None.
                                        Standard tower: Disk drive bays and power supplies.
Systems management       UEFI, IBM Integrated Management Module II (IMM2), basic light path diagnostic tests, Automatic Server Restart, IBM Systems Director, and IBM ServerGuide. Optional IMM Advanced FoD Upgrade for remote presence (graphics, keyboard and mouse, and virtual media).
Video                                Matrox G200eR2 with 16 MB memory that is integrated into the IMM2. Maximum resolution is 1600x1200 at 75 Hz with 16 M colors.
Security features               Power-on password, administrator password, and Trusted Platform Module.
Operating systems supported Microsoft Windows Server 2008 R2, 2008, 2012, 2012 R2; Red Hat Enterprise Linux 5, 6, 7; SUSE Linux Enterprise Server 11; VMware ESX 5.1, 5.5; 4690 OS (no USB 3.0 support for RHEL 5.1 or VMware ESX 5.1, 5.5).
Limited warranty               One-year customer replaceable unit and onsite limited warranty with 9x5/ next-business-day (NBD) response time.
Service and support         Optional service upgrades available through IBM ServicePac® offerings: 24x7/NBD or four hours onsite repair, 1-year or 2-year warranty extension, remote technical support for IBM hardware and selected IBM and third-party (Microsoft, Linux, VMware) software.
Dimensions                      Compact tower: Height: 360 mm (14.2 in.), width: 180 mm (7.1 in.), depth: 480 mm (18.9 in.)
                                       Standard tower:Height: 439 mm (17.3 in.), width: 217 mm (8.6 in.), depth: 569 mm (22.4 in.)
Weight                            Compact tower: Minimum configuration: 10 kg (22.0 lb), maximum configuration: 13 kg (28.7 lb)
                                       Standard tower: Minimum configuration: 19.6 kg (43 lb), maximum configuration: 22 kg (48.5 lb)

The x3100 M5 servers are shipped with the following items:

Statement of Limited Warranty.
Important Notices.
Documentation CD that contains the Installation and User's Guide.
IBM Systems Director 6.2 Base for x86 DVD-ROM.
Country-specific models might have one country-specific power cord.
