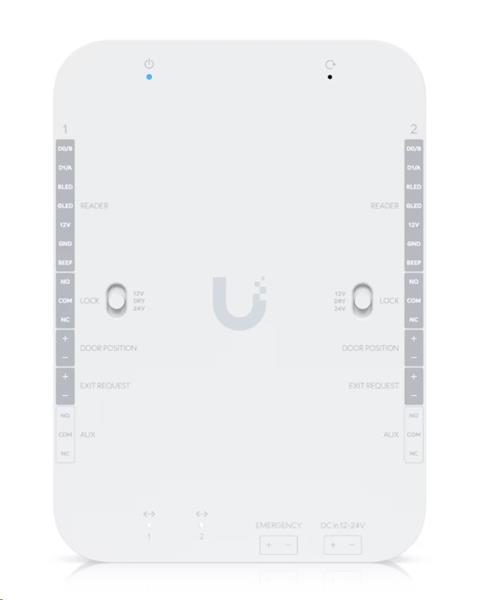

Ubiquiti DC-powered hub that supports Wiegand and OSDP readers and provides entry and exit control for UA-Retrofit-Hub-2
Ubiquiti DC-powered hub that supports Wiegand and OSDP readers and provides entry and exit control for UA-Retrofit-Hub-2
| Výrobca |
Ubiquiti |
|
|---|---|---|
| Kód | ITA391248 | |
| Part No. | UA-Retrofit-Hub-2 | |
| Dostupnosť po pobočkách |
NRE
NR
BA |
|
| DPH | 23% | |
| Vaša cena s DPH |
233.37 €
bez DPH 189.73 €
|
|
| Vaša cena bez DPH | ||
| Garancia ceny | Našli ste inde na internete nižšiu cenu? Informujte nás! | |
|
|
||
| Objednať |
|
|
Záruka koncový zákazník: 24 Mesiacov
Záruka firma: 24 Mesiacov
Výrobca:
Kód: ITA391248
Part No.: UA-Retrofit-Hub-2
Záruka firma: 24 Mesiacov
Výrobca:
Ubiquiti
Kód: ITA391248
Part No.: UA-Retrofit-Hub-2
Ubiquiti DC-powered hub that supports Wiegand and OSDP readers and provides entry and exit control for UA-Retrofit-Hub-2
Obchod si vyhradzuje právo na zmenu ceny až po potvrdenie objednávky. Obrázok má len ilustračný charakter.
Diskusia (0)
Poslať info
- +Akcia
- +JARNÉ POMÔCKY
- +PC, NOTEBOOKY
- +MOBILY, TABLETY, HODINKY
- +PC KOMPONENTY
- +PERIFÉRIE
- +HERNÁ ZÓNA
- +ČIERNA TECHNIKA
- +MALÁ BIELA TECHNIKA
- +VEĽKÁ BIELA TECHNIKA
- +SOFTWARE, E-KNIHY
- +MICROSOFT SOFTVÉR
- +ŠPORT, ZDRAVIE
- +ZÁHRADA, HOBBY
- +NÁBYTOK
- +FOTOVOLTAIKA
Naposledy navštívené
| Kód | Názov produktu | Vaša cena |
|---|
Podrobnosti o produkte
Popis produktu:
Technical Specifications
Overview
Dimensions
140 x 120 x 45 mm
(5.5 x 4.7 x 1.8")
Supported Doors
2
Maximum User Count
10,000
Input Terminals
(2) Third-party Wiegand Reader / UniFi Retrofit Reader
(2) Door exit request
(2) Door position
(1) Emergency
Power Method
12/24V DC
NDAA Compliant
Yes
Mechanical
Weight
420 g (14.8 oz)
Enclosure Material
Polycarbonate
Mount Material
SGCC steel
Mounting
Din-rail (Included)
Hardware
Digital Input
(2) Third-party Wiegand Reader / UniFi Retrofit Reader
(2) Door exit request
(2) Door position
(1) Emergency
Dry Output Relay
Lock: rated 30V DC, up to 1A
Aux: rated 30V DC, up to 1A
Powered Output Relay
12V Lock: 12V DC, up to 1A
24V Lock: 24V DC, up to 0.5A
Indoor and Outdoor Use
Indoor only
Ambient Operating Temperature
-10 to 40° C
(14 to 104° F)
Ambient Operating Humidity
5 to 90% noncondensing
Networking Interface
(2) 10/100 MbE RJ45 ports
Power Supply
DC 12/24V
Max. Power Consumption
50W
LEDs
W/B Learn More
Buttons
(1) Factory reset
(2) 12V/Dry/24V switch
Recommend Max. Cable Length
UA-Retrofit-Reader (250mA)
18 UACC-Cable-DoorLockRelay length: 152.4 m (500 ft)
UA-Lock-Electric
(400mA)
24 AWG length: 25 m (82 ft)
22 AWG length: 42 m (138 ft)
20 AWG length: 66 m (217 ft)
18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)
24 AWG length: 20 m (66 ft)
22 AWG length: 32 m (105 ft)
20 AWG length: 51 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)
24 AWG length: 12 m (29 ft)
22 AWG length: 20 m (98 ft)
20 AWG length: 30 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks
(1A)
24 AWG length: 9 m (30 ft)
22 AWG length: 15 m (49 ft)
20 AWG length: 24 m (79 ft)
18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
Certifications
CE, FCC, IC
Software
Management Application
Access
Software Information
The software version can be checked at https://unifi.ui.com
