Popis produktu:

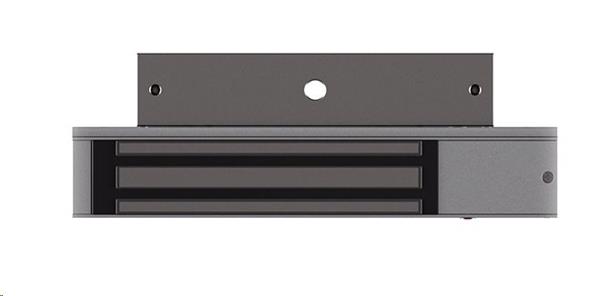

Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub.

Holds up to 270 kg or 540 kg (600-1,200 lb)


Can be installed on a wide variety of door types*

Technical Specifications
Overview
Dimensions
UA-Lock-Magnetic-270kg
Lock body: 250 x 42.5 x 26 mm(9.8 x 1.7 x 1" )
Install plate: 250 x 25x 5 mm (9.8 x 1 x 0.2" )
Armature: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4")

UA-Lock-Magnetic-540kg
Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6")
Install plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2")
Armature: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6")
Weight
UA-Lock-Magnetic-270kg
Lock body: 1 kg (2.2 lb)
Install plate: 70 g (0.15 lb)
Armature: 600 g (1.3 lb)

UA-Lock-Magnetic-540kg
Lock body: 2.9 kg (6.4 lb)
Install plate: 145 g (0.3 lb)
Armature: 1.4 kg (3.1 lb)
Enclosure Material
Device/brackets: aluminum
Armature: steel
Lock Features
Lock Type
Fail safe
Support Door Type
UA-Lock-Magnetic-270kg: Single door
(Wooden/metal/glass)

UA-Lock-Magnetic-540kg: Single door
(Wooden/metal)
DPS
Embedded
Holding Force
UA-Lock-Magnetic-270kg: 270 kg (600 lb)

UA-Lock-Magnetic-540kg: 540 kg (1,200 lb)
Current Power
500mA ±10%
Support Voltage Range
12V DC ±10%
Wiring
(1) Lock 12V/NC (red)
(1) Lock 12V/COM (black)
(1) DPS/+ (white)
(1) DPS/- (yellow)
Mounting
UA-Lock-Magnetic-270kg
L bracket: for outward opening door thickness < 42 mm (< 1.7")
Z bracket: for inward opening door, used with L bracket
U bracket: for glass door thickness ? 17 mm (? 0.7") and door gap ? 5 mm (? 0.2")

UA-Lock-Magnetic-540kg
L bracket: for outward opening door thickness < 42 mm (< 1.7")
Z bracket: for inward opening door, used with L bracket
LED Indicator
Green: unlocked
Red: locked
Ambient Storage Temperature
-20 to 70° C (-4 to 158° F)
Ambient Operating Temperature
-10 to 60° C (14 to 140° F)
Ambient Operating Humidity
5 to 90% noncondensing
NDAA Compliant
Yes
Certifications
FCC, IC, CE
