Popis produktu:

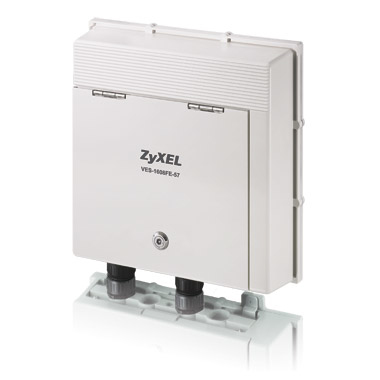

Zyxel VES-1608FE-57A VDSL2 DSLAM 8-port VDSL2 environmental harden Switch (ISDN) Profile 30a (AnnexB)

Benefits
Environmentally hardened with 30a profile support
The VES-1608FE-57 supports 30a profile with 100 Mbps throughput in both upstream and downstream traffics. With two Gigabit Combo ports to connect the upper layer network, the VES-1608FE-57 can support non-blocking interconnection from the subscriber ports to the network interface ports, and its environmental hardened design makes it possible for most outdoor deployment and application scenarios.

Triple Play ready
The VES-1608FE-57 supports IGMP snooping to prevent unnecessary forwarding of multicast traffic to all subscribers, and thus optimizes bandwidth utilization for multicast applications such as broadcast video. The VES-1608FE-57 also supports multicast VLAN features to distribute the source to all the VLANs that request the video stream. With built-in splitter over ISDN, VES-1608FE-57 allows operators to provide triple-play services over the same copper wire.

Complete QoS for service differentiation
The VES-1608FE-57 supports not only 802.1x port-based access control for subscriber authentication, but also defines a limited number of MAC addresses that can access the network from a particular port. With rate limiting on the subscriber ports for services with 64 Kbps increments, service providers are allowed to offer tiered services.

System Specifications
Fixed rate and rate adaptive
Support DMT MCM (Multi-Carrier Modulation) defined ITU-T Rec. G993.2
Power back off
Standard RFI configuration
Resynchronization
ADSL/POTS band off
Interleave delay setting
Support the VDSL2 profiles including 8a, 8b, 8c, 8d, 12a, 12b 17a and 30a profiles as specified in ITU-T Rec. G.993.2
The profiles can be programmable by command and automatically adapted according to the line condition on per VDSL2 line basis
The transmitter signal complies with the PSD mask specified in ITU-T Rec. G993.2
Support enable/disable UPBO of shape the VDSL2 downstream signal spectrum to mitigate far-end crosstalk
Support the capability of impulse noise protection (INP) as defined in ITU-T Rec. G.993.2
Loop Diagnostics (SELT & DELT)

Hardware Specifications
8 quick connectors for 8-port VDSL2 subscribers (with surge protection)
8 quick connectors for ISDN interface (with surge protection)
One console port for local management (DB-9)
Two 100/1000Base-TX (RJ-45) or two mini GBIC (SFP) for uplink and cascading
Auto-Negotiation
Auto-MDI/MDI-X
Compliant with IEEE 802.3/802.3u
Back pressure flow control for half-duplex
IEEE 802.3x flow control for full-duplex
Out of band Mgmt interface: RJ45 header with 10/100M UTP, support Auto MDI/MDIX
One RJ-45 alarm contact
AC universal Input connector
AC outlet (optional) with an extension cord to fit various power connector in different
Power Requirement

Power rating: 100 - 240V AC, 50/60 Hz
Power consumption: 38 Watt

Physical Specifications
Item dimensions (WxDxH): 380 x 390 x 104 mm (14.96" x 15.35" x 4.09")
Item weight: 7,000 g (15.47 lb)
Packing dimensions (WxDxH): 560 x 523 x 275 mm (22.04" x 20.59" x 10.82")
Packing weight: 10,500 g (23.2 lb)

Environmental Specifications
Operating environment

Temperature: 0°C ~ 50°C
Humidity: 10% ~ 95% (non-condensing)
Storage environment

Temperature: -40°C ~ 70°C
Humidity: 5% ~ 95% (non-condensing)

Certification
RoHS
K.20
ETSI300-019
Safety
EN60950-1
CSA60950-1
UL60950-1
IEC60950-1
EMC
FCC Part 15 Class A
EN55022 Class A
ETSI300-386
