Popis produktu:

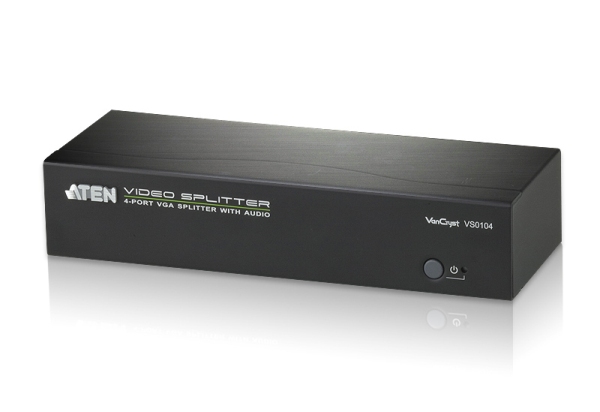

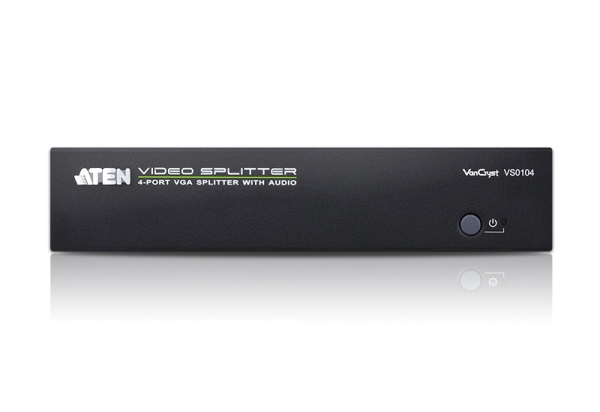

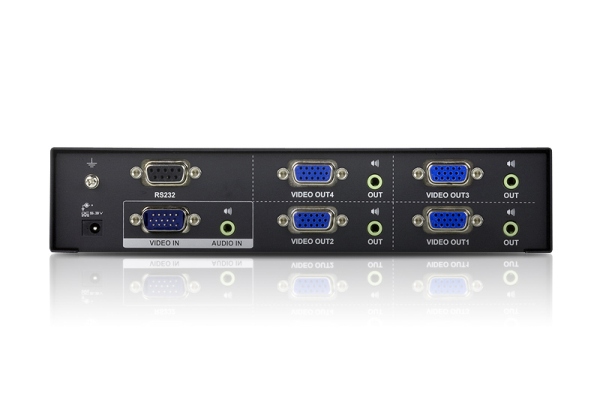

The ATEN VS0104 4-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video & audio signal to be distributed to four output displays with independent stereo control. The splitter support up to 450MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920x1440.

Furthermore, for complete systems integration, serial control is standard through the VS0104 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC.

The VS0104 is perfect for conference rooms,training facility & multi-display broadcasting, with cascadable support up to three levels allowing a single video signal to be sent across up to 64 video displays while sustaining the highest quality possible.

Features:
   One video input to 4 video outputs
   Superior video quality – up to 1920 x 1440 @ 60Hz
   Supports up to 450MHz bandwidth for high performance video
   Long distance transmission – up to 65m *
   Supports VGA, SVGA, UXGA, WUXGA, and multisync
   EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
   Expandable – provides up to 64 video displays
   Features RS-232 serial port for command controls **
   RS-232 chain control – use RS-232 commands to control cascaded devices via VGA cable
   Supports stereo audio
   Plug-and-play – no software installation required

   Note:
   * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality
   ** The VS0104 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

Package Contents

   1x 4-Port VGA Splitter with Audio
   1x 0AD6-1605-09EG Power Adapter
   1x User Instructions
