Popis produktu:

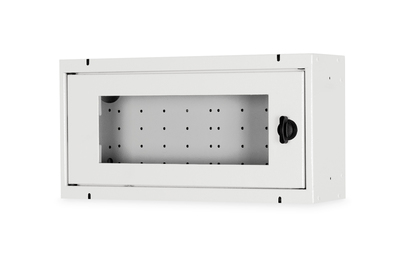

Home automation wall mounting cab., 200x400x100 mm surface mount, frames glass door, grey (RAL 7035) color grey (RAL 7035)

Description
Home automation wall mounting cab., 200x400x100 mm surface mount, frames glass door, grey (RAL 7035)

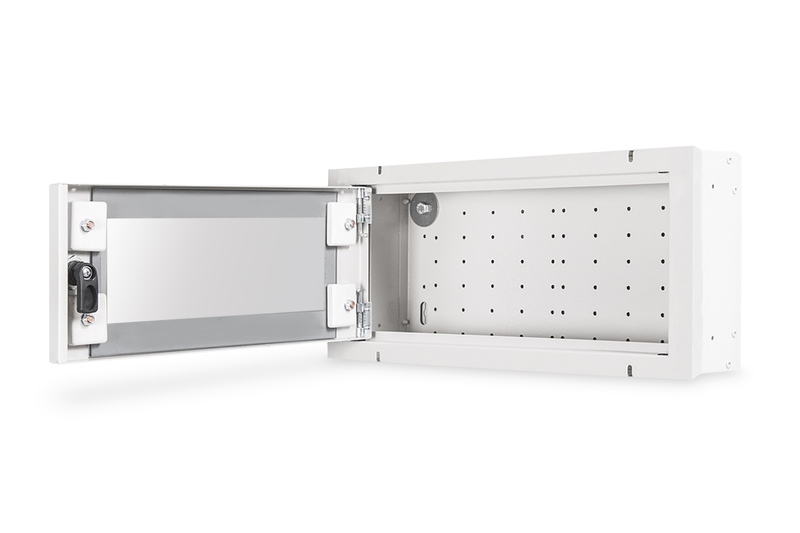

Perforated rear wall for mounting of equipment in the inside
Rear wall with special holes for wall mounting
With the Home Automation Wall Mounting Cabinets you can easily organize your home management. Inside of the sturdy housing you can fix various accessories and mounting plates which offer space for active- and passive network components. With this, the individualization of e.g. cabling of your WLAN router, your switches or patch panels, is given to your choice. The cable management takes place via cut outs on the top- and bottom side of the housing. Plastic covers with breaking points ensure optimized possibilities for organizing your cables. The cabinets get delivered as surface mounting version. With optional frames you can convert your housing into a flush mounting version.

Technical Details
Safety class rating IP20
1,1 mm strong sheet steel with a high loading capacity, powder coated
Lockable safety-glass door with steel frame
120° door opening angle on the front door
1-point-locking-mechanism on the front door
2x cable entry each on top- and bottom side (105x45 mm) with plastic covers
Ventilation slots for active and passive ventilation and exhausting
Mounting method: Surface mounting
Colour: Grey
Width: 400
Height: 200
Depth: 100
RAL-number: 7035
With mounting plate: no
Built-in depth: 75
Number of rows: 1
Type of cover: Door
EMC-version: no
Extension possible: yes
Internal depth: 75
DIN-rail: no
Material housing: Steel
Width in number of modular spacings: 400
Degree of protection (IP): IP20
Transparent cover/door: yes
With lock: no
Cover model: With notch
