Popis produktu:

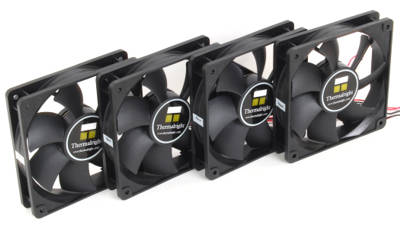

Features:

Japanese imported Fluid Dynamic Bearing Technology to reduced noise and vibration. Work best with Thermalright's heatsinks for that perfect balance of performance and silence.
60,000 hours under normal room temperature. Longer life expectancy than other leading brands.
High rate of Air Flow even under low RPM.
7V of power usage; can be adjusted via fan control device.
Four speed variation to choose from (1,000 RPM, 1,300 RPM, 1,600 RPM, and 2,000 RPM).

TR-FDB-1000 (1000RPM)
Dimension 120*120*25mm
Bearing Type FDB (Fluid Dynamic Bearing)
Rated Voltage 12.0 VDC
Operating Voltage Range 10.8~13.2 VDC
Rated Current 0.130 Amp +10% MAX /0.11AMP
Rated Power 1.56 watt
Rated Speed 1000 RPM ± 10%
Airflow                38.9 CFM
Noise Level 15.8 dB/A
Life Expectancy 60000 HOURS AT 40°c / 65%
Net weight 156 GRAMS
Connector 3 pin

TR-FDB-1300 (1300RPM)
Dimension 120*120*25mm
Bearing Type FDB (Fluid Dynamic Bearing)
Rated Voltage 12.0 VDC
Operating Voltage Range 10.8~13.2 VDC
Rated Current 0.130 Amp +10% MAX /0.11AMP
Rated Power 1.56 watt
Rated Speed 1300 RPM ± 10%
Airflow                50.0 CFM
Noise Level 24.1 dB/A
Life Expectancy 60000 HOURS AT 40°c / 65%
Net weight 156 GRAMS
Connector 3 pin

TR-FDB-1600 (1600RPM)
Dimension 120*120*25mm
Bearing Type FDB (Fluid Dynamic Bearing)
Rated Voltage 12.0 VDC
Operating Voltage Range 10.8~13.2 VDC
Rated Current 0.200 Amp +10% MAX /0.11AMP
Rated Power 2.4 watt
Rated Speed 1600 RPM ± 10%
Airflow                63.7 CFM
Noise Level 28.0 dB/A
Life Expectancy 60000 HOURS AT 40°c / 65%
Net weight 156 GRAMS
Connector 3 pin

TR-FDB-2000 (2000RPM)
Dimension 120*120*25mm
Bearing Type FDB (Fluid Dynamic Bearing)
Rated Voltage 12.0 VDC
Operating Voltage Range 10.8~13.2 VDC
Rated Current 0.370 Amp +10% MAX /0.11AMP
Rated Power 4.44 watt
Rated Speed 2000 RPM ± 10%
Airflow                80.5 CFM
Noise Level 38.0 dB/A
Life Expectancy 60000 HOURS AT 40°c / 65%
Net weight 156 GRAMS
Connector 3 pin
