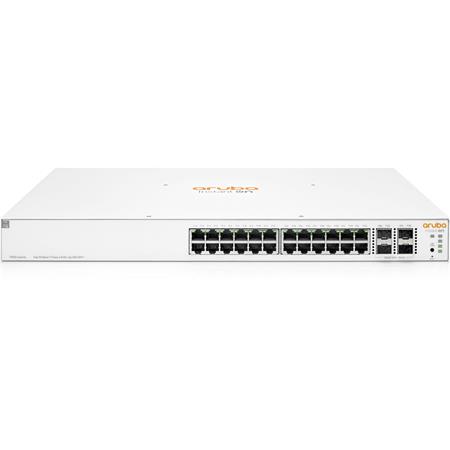

Aruba IOn 1930 24G 4SFP+ 370W Sw JL684B

Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
1G/10G SFP+ ports on 24-and 48-port models for fiber connectivity.
Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
Option to manage your switches through local web GUI.
Limited Lifetime Warranty.

Product Differentiator (long)Advanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 24 10/100/1000 RJ-45 and 4 SFP 1/10GbE ports. Provides 370 W Class 4 PoE power.

Power Consumption Description439.0 W maximum, 20.9 W idle

Input Voltage100 - 127 / 200 - 240 VAC

External I/O Ports24 RJ-45 10/100/1000 ports, 4 SFP 1/10GbE ports

Switching Capacity128 Gbps

Throughput95.23 Mpps, maximum

Memory and ProcessorARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer

PoE Capability370 W Class 4

Management FeaturesAruba Instant On Portal, Web browser, SNMP Manager

Warranty Standard StatementLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration

Weight (imperial)8.1 lb

Weight (metric)3.67 kg

Product Dimensions (imperial)1.73 x 17.42 x 10.42 in

Product Dimensions (metric)4.39 x 44.25 x 26.47 cm
