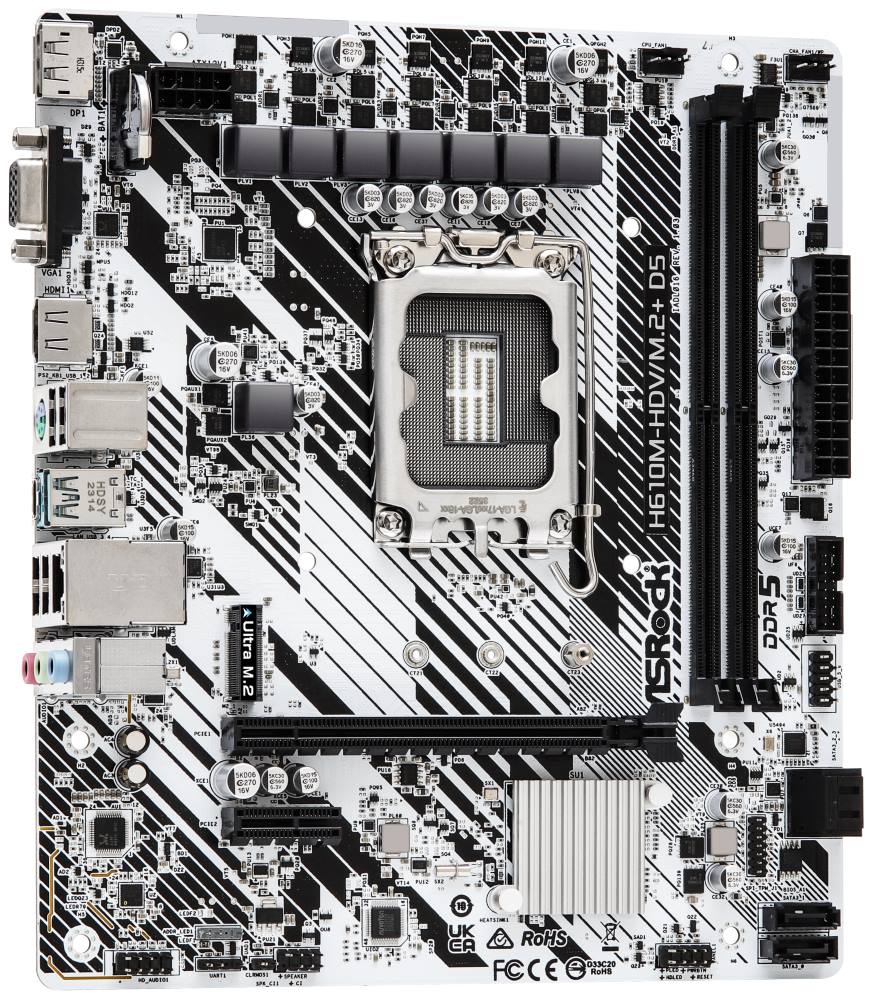

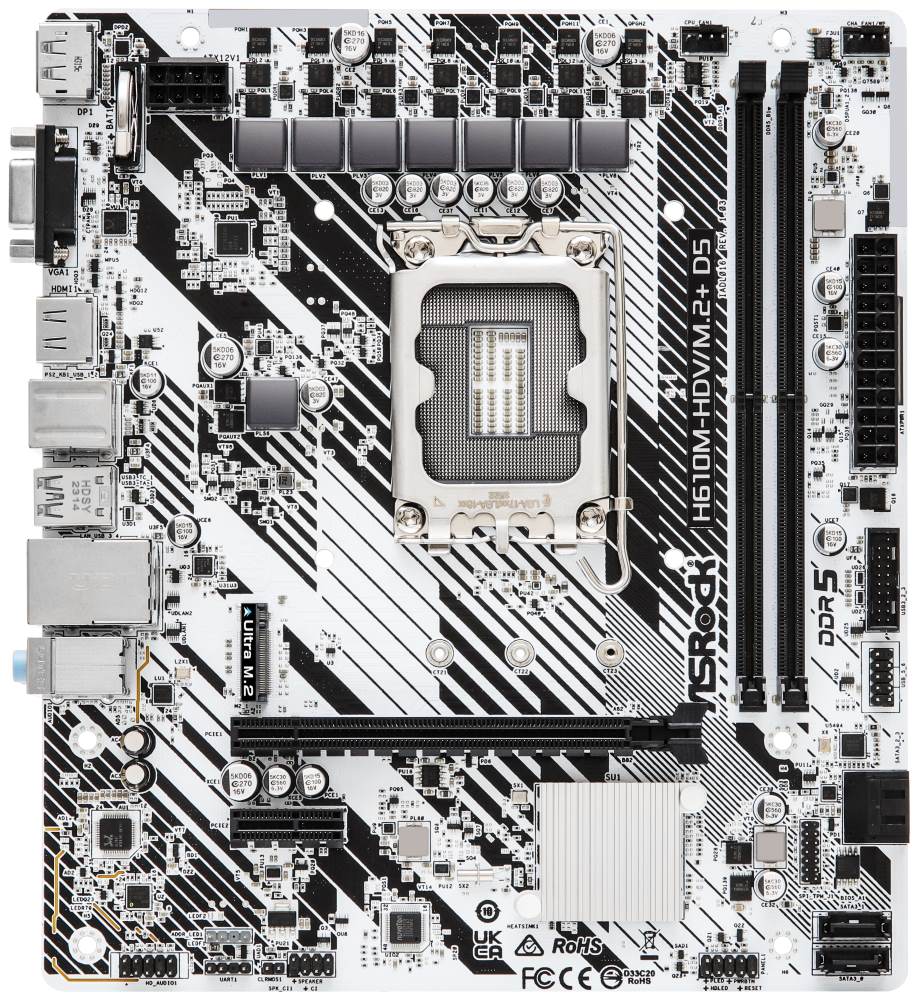

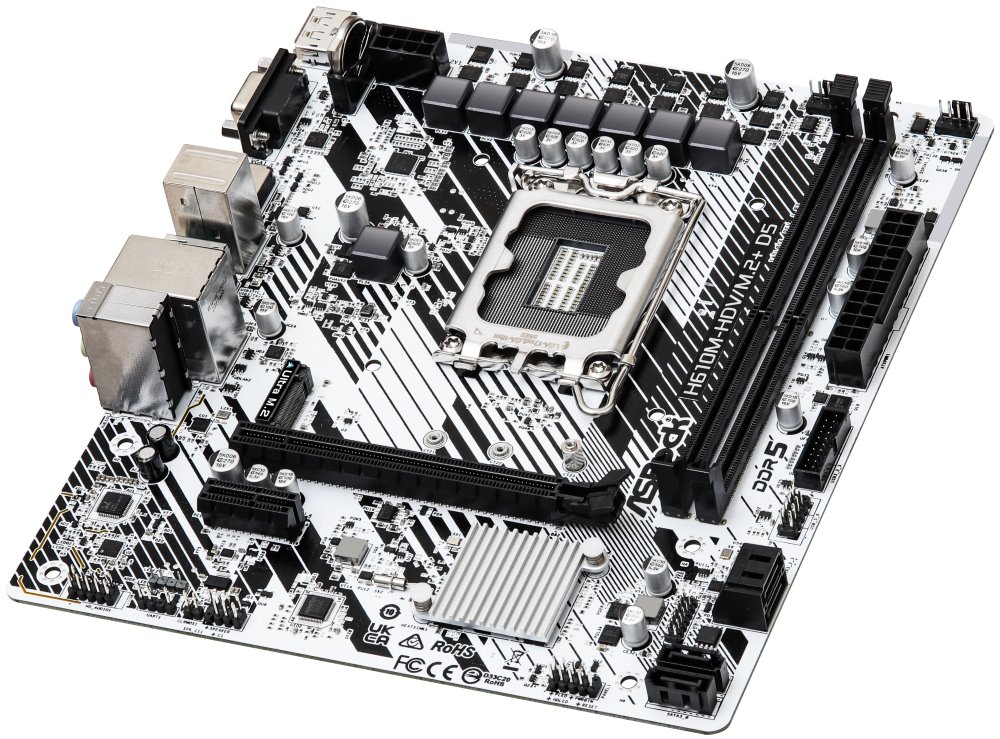

Popis produktu:

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
6+1+1 Power Phase
Supports DDR5 5600MHz
1 PCIe 4.0 x16, 1 PCIe 3.0 x1
Graphics Output Options: HDMI, DisplayPort, VGA
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
1 USB 3.2 Gen1 Type-C (Rear), 3 USB 3.2 Gen1 Type-A (1 Rear, 2 Front) ,6 USB 2.0 (4 Rear, 2 Front)
Realtek Gigabit LAN
Supports ASRock Auto Driver Installer


CPU

- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology



Chipset

- Intel® H610



Memory

- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- 13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600*
- 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800*
- Max. capacity of system memory: 96GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0

* Actual support may vary by CPU.



BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support



Graphics

- Intel® Xe Graphics Architecture (Gen 12)*
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.



Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)



LAN

- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H



Slots

CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2)*

*Supports NVMe SSD as boot disks



Storage

Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks



USB

- 1 x USB 3.2 Gen1 Type-C (Rear)
- 3 x USB 3.2 Gen1 Type-A (1 Rear, 2 Front)
- 6 x USB 2.0 (4 Rear, 2 Front)

* All USB ports support ESD Protection



Connector

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x Addressable LED Header*
- 1 x CPU Fan Connector (4-pin)**
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

*Support in total up to 5V/3A, 15W LED Strip
** CPU_FAN1 supports the fan power up to 1A (12W).
*** CHA_FAN1/WP supports the fan power up to 2A (24W).
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

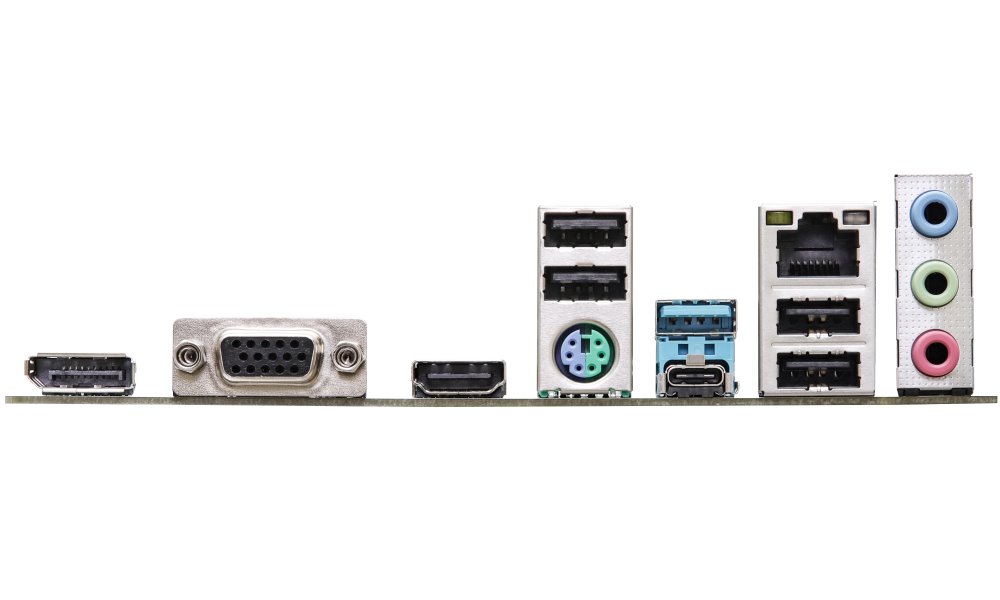

Rear Panel I/O

- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 1 x USB 3.2 Gen1 Type-A Port
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone



Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.



Unique Feature

Superb Productivity
- Dual Channel DDR5
Rock-Solid Durability
- 6+1 Power Phase
EZ Update
- ASRock Auto Driver Installer



Operating System

Windows® 11, Windows® 10 64-bit



Accessories

- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket



Form Factor

- Micro ATX Form Factor: 22.0 cm x 19.3 cm
