Popis produktu:

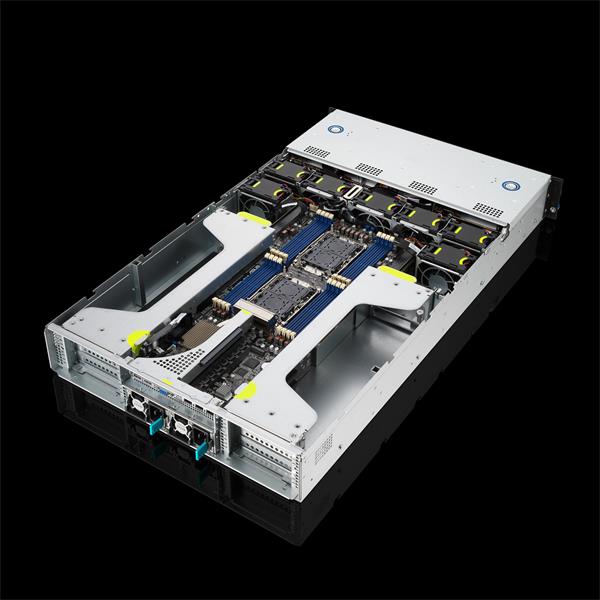

2U GPU server powered by dual-socket 3rd Gen Intel Xeon Scalable processors that supports up to 16 DIMM, four dual-slot GPU, 4 M.2, eight NVMe (by SKU), total eleven PCIe 4.0 slots, one OCP 3.0 (by SKU) and ASUS ASMB10-iKVM.


Processor / System Bus

2 x Socket P+ (LGA 4189)
3rd Gen Intel® Xeon® Scalable Processors Family(205W)
Core Logic

Intel® PCH C621A
Memory

Total Slots :
16 (8-channel, 1DPC)
Capacity :
Up to 4,096GB DIMM
Up to 6,144GB DIMM+PMem (200 series)
Memory Type :
DDR4 3200 RDIMM / LRDIMM / LRDIMM 3DS
Memory Size :
256GB, 128GB, 64GB, 32GB, 16GB
512GB, 256GB, 128GB Intel® Optane™ DC Persistent Memory 200 Series (DCPMM)
* Refer to support page for more information
Expansion Slots

Rear
- 4 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards or
  8 x PCIe x16 slots (Gen4 x8 link, FH,FL) for single-slot GPU cards*
- 2 x PCIe x16 slots (Gen4 x16 link, LP,HL)
Front
- SKU-1:
1 x PCIe x8 slot (Gen4 x8 link, LP,HL)
4 x M.2 sockets (Gen4 x4 link, up to 22110 module)
- SKU-2:
1 x PCIe x8 slot (Gen4 x8 link, LP,HL)
1 x OCP3.0 slot (Gen4 x16 link)
- SKU-3:
8 x 3.5” NVMe support
Storage

Storage Controller :
Intel® PCH C621A

Optional kits Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card
ASUS PIKE II 3108-8i 8-port SAS 12G RAID card
Drive Bays

8 x 3.5" Hot-swap Storage Bays
(SKU-1 & SKU-2 Backplane Supports 6 x SATA/SAS + 2 x SATA/SAS/NVMe Devices**)
(SKU-3 Backplane Supports 8 x SATA/SAS/NVMe Devices)
1 x M.2 socket (Gen3 x4 link or SATA mode, up to 2280 on-motherboard)
Networking

2 x 1GbE LAN ports (RJ45, Intel I350-AM2)
Multi-GPU Support

Please find the latest GPU support from https://servers.asus.com/support/gpu
Front I/O Ports

4 x USB 3.2 Gen1 ports
Rear I/O Ports

2 x USB 3.2 Gen1 ports
1 x VGA port
2 x 1GbE LAN ports (RJ45)
1 x Management port (RJ45)
Switch/LED

Front :
1 x Power Button/LED
1 x Location Button/LED
2 x LAN LED
1 x Message LED
1 x HDD Access LED
Rear :
1 x Power Button/LED
1 x Location LED
1 x Message LED
1 x HDD Access LED
OS Support

Please find the latest OS support from https://servers.asus.com/support/os
Management Solution

ASUS Control Center Enterprise (in-band)
ASMB10-iKVM (out-of-band/BMC AST2600)
Regulatory Compliance

BSMI, CB, CE, RCM, FCC(Class A)
Dimensions

800 x 440 x 88.9mm
Form Factor

2U
Weight

Net Weight: 34 Kg.
Gross Weight: 44 Kg.
Power Supply

1+1 Redundant 1600W 80 PLUS Platinum Power Supply C-14 power inlet
Rating: 100-127Vac/200-240Vac,12.9A/9.5A,50-60Hz

1+1 Redundant 2200W 80 PLUS TITANIUM Power Supply C-20 power inlet
Rating: 100-127Vac/200-240Vac,14A/12.6A,47-63Hz
Environment

Operation temperature: 10? ~ 35?
Non operation temperature: -40? ~ 70?
Non operation humidity: 20% ~ 90% ( Non condensing)
Note

*We also provide special GPU riser cards (with PCIe-switch) could support 8 single-slot GPU cards (x16 link for each). If customers need the customization, please contact ASUS sales representative for detail.

**Users need to remove Slimline cables from the front PCIe riser board & OCP3.0 slot board, and re-connect the cables to the backplane to support up to 8 x NVMe devices.
