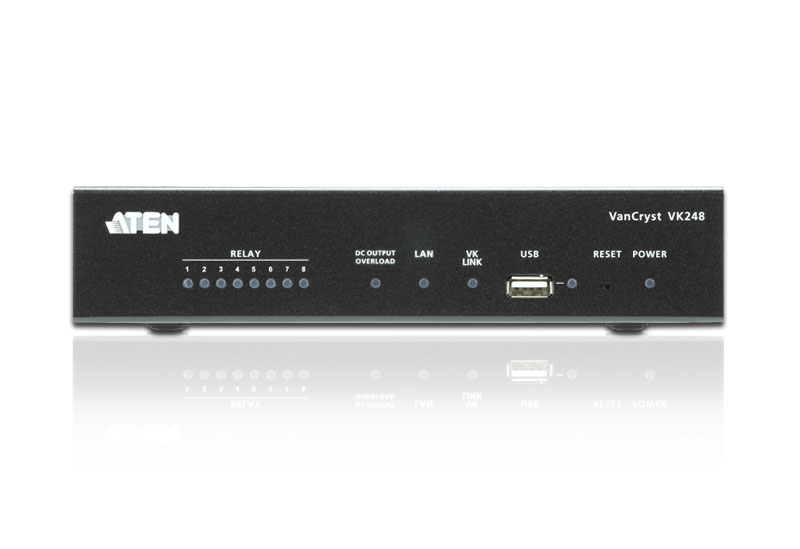

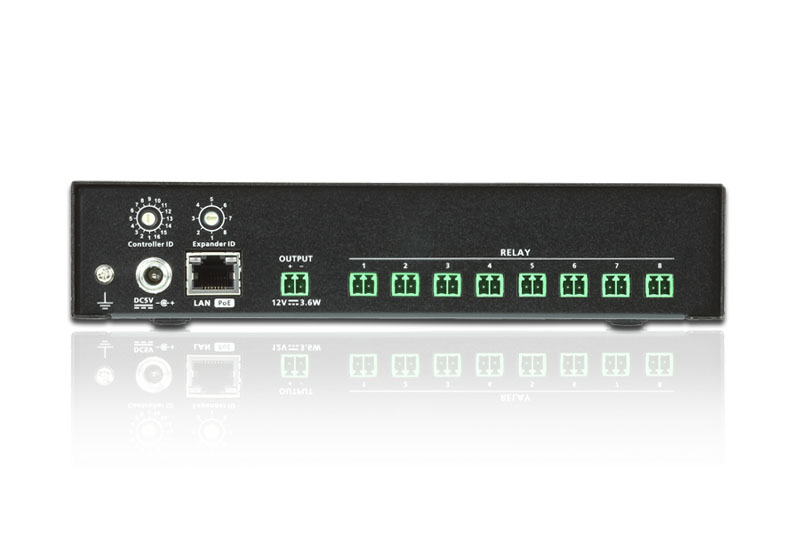

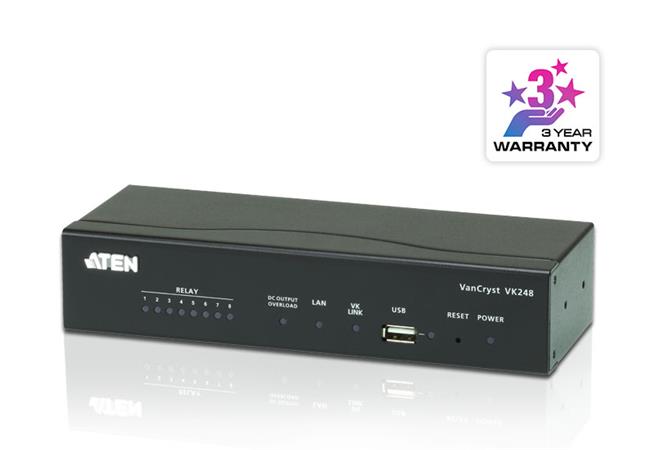

ATEN 8-Channel Relay Expansion Box VK248-AT

The VK248 8-Channel Relay Expansion Box provides an additional eight channels of relay output for a flexible expansion of the ATEN Control System. This allows users to control additional devices such as screen, projector lifts and blinds in environments where more devices are required. With the advantage of an Ethernet-based connection, the expansion box easily connects to the VK2100 Control Box via a LAN connection from a variety of locations across a network.

Features:

Provides 8 relay channels to expand the ATEN Control System
Up to eight VK248 expansion boxes can be added to a single Control Box
Flexible Deployment: Connects to a Control Box via an Ethernet connection
ID Switch pairs the VK248 with a controller to instantly configure the network settings
Provides DC power to power an AC relay module or other device
Supports Power over Ethernet (PoE) or DC power supply
Firmware upgradable through USB or Web interface


Package Contents
1x VK248 8-Channel Relay Expansion Box
1x Mounting Kit
9x Terminal Blocks
1x User Instructions
