Popis produktu:

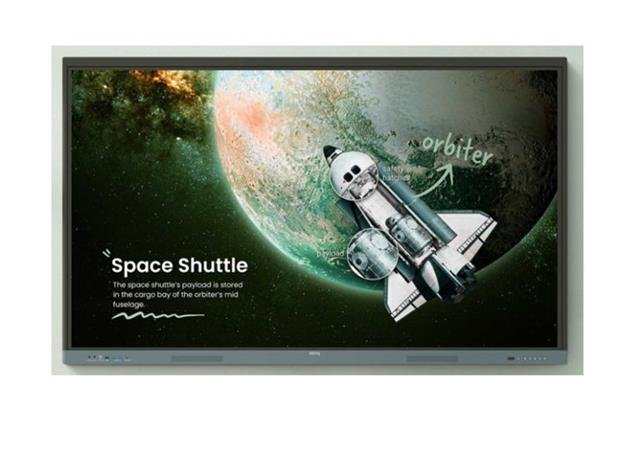

Panel
Screen size 86"
Resolution UHD 3840 ~ 2160
Brightness 500 nits
Typical contrast ratio 1200:1
Dynamic contrast ratio 30,000:1
Viewing angle (H/V) 178‹/178‹
Response time 8 ms
Backlight life 50,000 hrs
Panel surface AG, Haze 25%
Operating hours 18 hours / 7 days
Orientation Landscape

System
Memory | Storage 8 GB I 128 GB
OS Android 16.0 (EDLA)
GPU Arm Mali-G57 MC2
CPU Octa-Core (A78 ~ 2 + A55 ~ 6)
NPU 10 TOPS

Power
Power supply AC 100-240 V, 50/60 Hz
Power consumption
Typical 101.2 W "
Standby <0.5 W
AC power switch Yes
ENERGY STARR Yes
Wake up LAN / HDMI / VGA

Touch
Technology Precision IR
Number of touch points up to 50
Interface USB Type-B ~ 2

Glass
Thickness 3.2 mm
Hardness 9H tempered
AG coating Yes

ClassroomCareR Technology
Eye care: flicker-free & low blue light    Yes (TUV-certified)
Air quality sensors & air ioniser    No
Germ-resistant screen   No

Environment
Operating temperature 0‹C ~ 40‹C
Operating humidity 20% ~ 80% RH non-condensing

Connectivity
Input   VGA ~ 1, HDMI 2.0 ~ 3, DP 1.2a ~ 1, Mic (3.5mm) ~ 1, PC Audio ~ 1
Output   HDMI 2.0 ~ 1, SPDIF (Optical) ~ 1, Earphone ~ 1
USB Type-A ~ 6 (3.0 ~ 4 / 2.0 ~ 2), Type-B ~ 2 (2.0), Type-C ~ 3 (3.0 ~ 1 [5-in-1: data, video,
audio, touch, PD 65 W] / 3.0 ~ 1 [5-in-1: data,video, audio, touch, PD 15 W] / 2.0 ~ 1 [data])
RS-232 (In) ~ 1
RJ45 (LAN) ~ 2 (Android / OPS) up to 1000Mbps
Wireless connectivity Optional WD02AT (Wi-Fi 6, Bluetooth 5.2)
OPS slot (for slot-in PC) ~ 1
Micro SD reader ~ 1

Built-in peripherals
Speaker 25 W ~ 2
Subwoofer 20 W ~ 1
Microphones 8-mic array, up to 12 m pickup range

Physical
Dimensions (W ~ H ~ D) 1950.4 ~ 1174 ~ 87.6 mm
Weight (product | shipping) 59.5 kg | 76 kg
Bezel width (T | B | L | R) 35.1 | 47.1 | 14.8 | 14.8 mm
Wall mounting (VESA) (screw type/max length)
VESA 800 ~ 600 mm ( 4 ~ M8 ~ 25L), wall mount kit included

Accessories
Remote control ~ 1
Stylus ~ 2 (PT06)
Cables VGA (¨ Specifications subject to change without notice. 3 m) ~ 1, HDMI (3 m) ~ 1 , USB-B for touch (3 m) ~ 1
