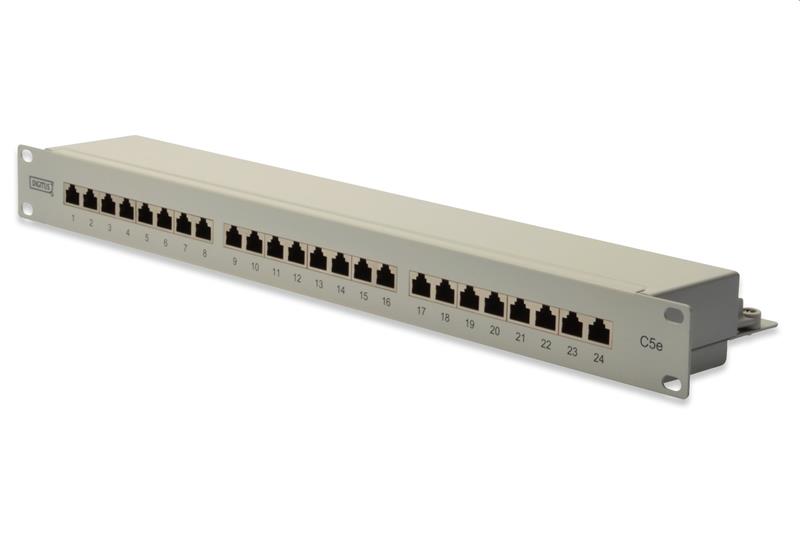

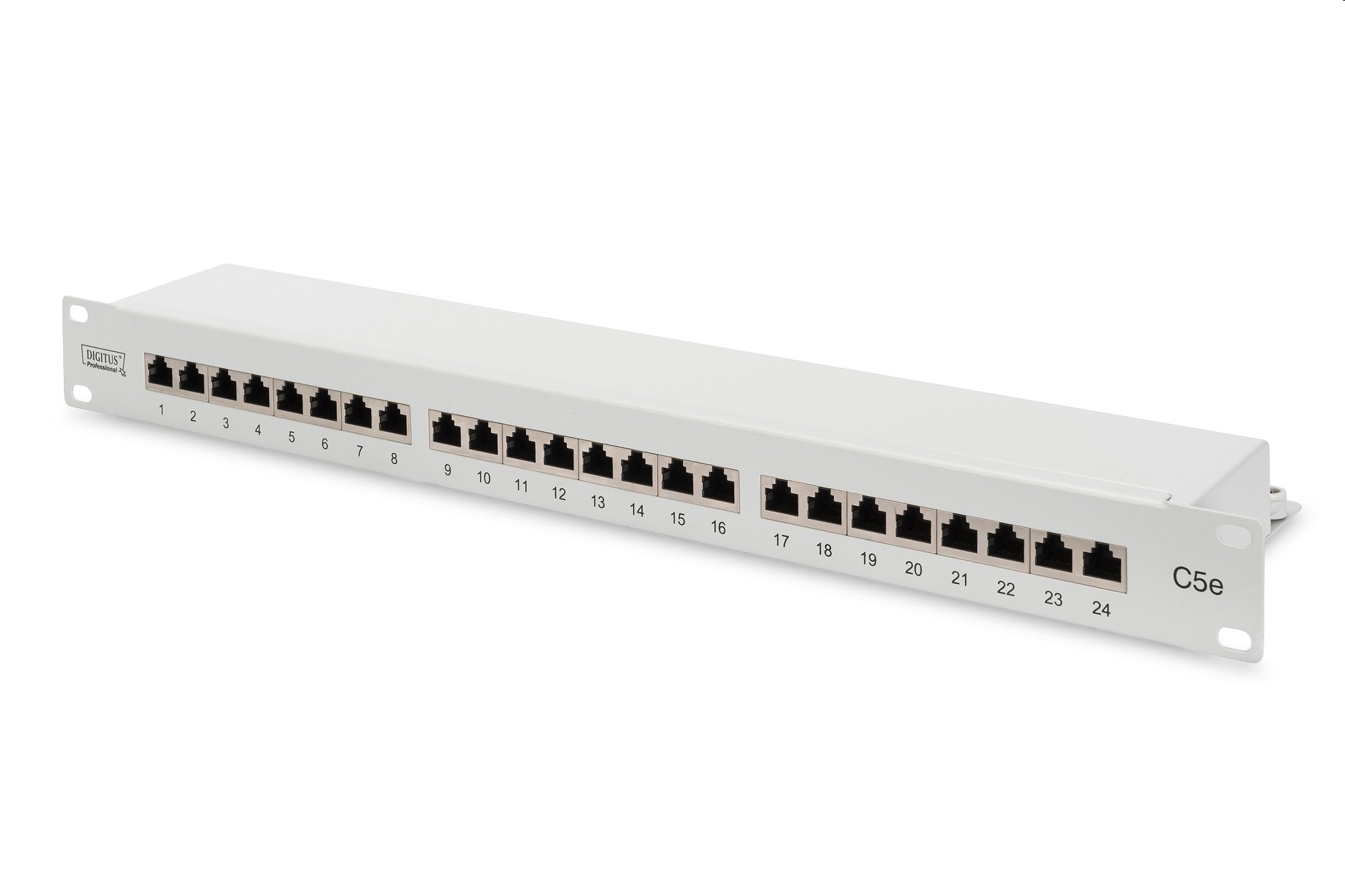

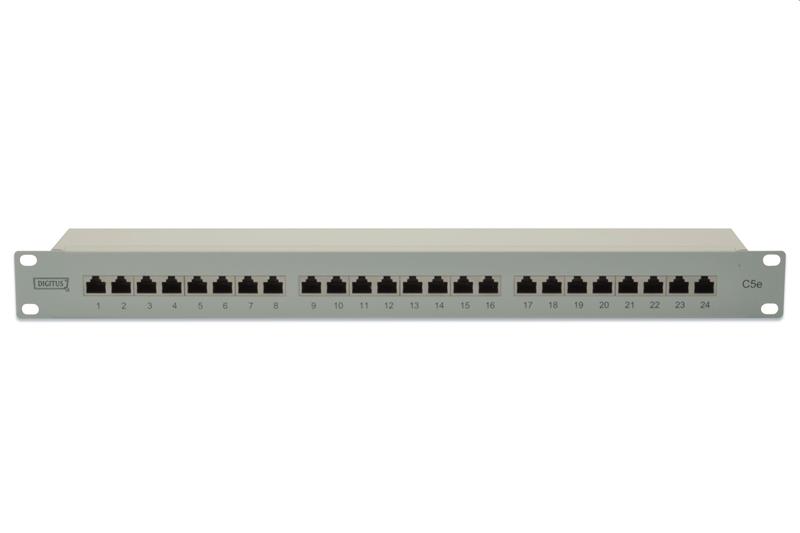

DIGITUS 19" patch panel 24port 1U Cat5E, STP, Krone LSA+, vyväz. lišta, sivý RAL7035 DN-91524S

CAT 5e, Class D patch panel, shielded, 24-port RJ45, 8P8C, LSA, 1U, rack mount, grey, 482x44x109

Future-oriented standards and high-end quality for your network.

Easy wire installation possible due to color coded LSA strips
Shielding provides optimized performances
19" design with 24x shielded RJ45 ports

TECHNICAL DETAILS
Transmission properties: Category 5e
Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for 483 mm (19") cabinet mounting
RJ45 female, 8P8C
Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
Cable fixing with smart cable ties
Central ground connection
360° shield coverage
Mechanical properties:
Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Ground wire: Not included
Conductor plate: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Color: light grey, RAL 7035
Ports: 24
Units: 1
Category: CAT 5e
