Description

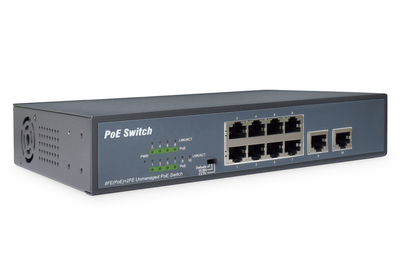

Fast Ethernet PoE af/at 8 port switch + 2 uplinks 120W PoE power budget, rack mountable

Network Switch with integrated Power over Ethernet (PoE) solution for an optimal, cost effective and fast integration in small or medium-sized networks
8-port 10/100Base-TX with PoE support
2-port Fast Ethernet uplink
Meets the network standards IEEE 802.3, IEEE802.3u, IEEE802.3q, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
The VLAN mode provides a port-based VLAN function that prevents multicast or broadcast requests from interfering with each other
The Extensive mode offers range extension of up to 250 m at 10 Mbps
Maximum PoE power of 120 watts

Technical Details
8-port 10/100Base-TX with PoE support
2-port Fast Ethernet uplink
Meets the network standards IEEE 802.3, IEEE802.3u, IEEE802.3q, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
With integrated DIP switch to enable VLAN or extensive  mode
Extensive mode for ranges up to 250 meters with a transmission rate of 10Mbps
PoE current output 55 V DC, max. 30 W per port
PoE power supply mode A, PIN 1/2(+), 3/6(-)
Supports non-blocking, non-head-of-line forwarding
Supports back pressure and bandwidth control in each port
Store and forward technology for optimized data transfer
Automatic speed and half/full duplex recognition/adjustment
Auto MDI/MDI-X function
Backplane with 2 Gbps
Supports up to 8K MAC addresses
Integrated power supply unit
Maximum PoE power of 120 watts
Maximum output line 125 watts
Fanless design

Package content
8 Port Fast Etherent PoE Switch + 2 Uplinks
Quick start guide
Power Cable
Mounting accessories
