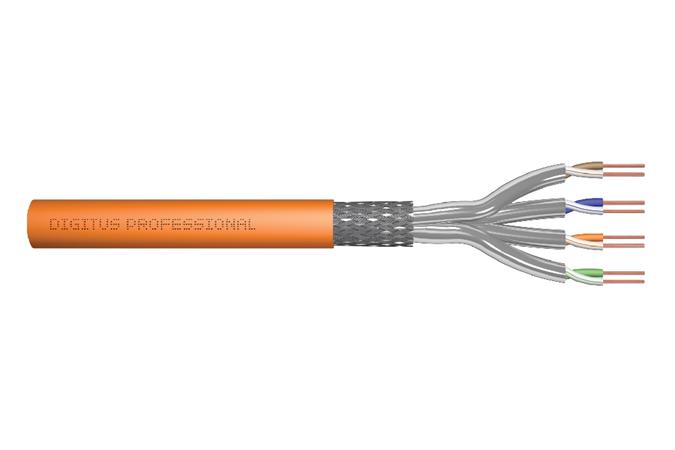

DIGITUS CAT 7 S-FTP PiMF installation cable, raw, AWG 23/1, LSZH, 1200MHz, Color orange 100m ring

4 x 2 x AWG23 S-FTP CAT7 1200MHz LSZH, installation cable

Suitable for building structured cabling in the secondary and tertiary area.
For installation of cable lines of class F, 1000 MHz.
Conforming to ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1

Physical description
• Basic Conductor: solid AWG 23/1, bare annealed copper (0.57mm nom.)
• Insulation: SFS-PO
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: blue x white, orange x white, green x white, brown x white
• Individual pair shield: Aluminium foil, providing 100% coverage, foil face out
• Overall shield: tin-coated copper wire braid, 35% nom. coverage
• Outer jacket: low-smoke, zero-halogen, flame retardant, non corrosive compound for indoor use
• Outer jacket thickness: 0.6mm nom.
• Color: orange RAL 2000
• Overall diameter: 7.5mm nom.
• Copper (kg/km): 28

Mechanical properties
• Bend radius: dynamic: 8xD mm min., static: 4xD mm min.
• Storage temperature: -20°C to +75°C
• Temperature installation range: 0°C to +50°C
• Temperature operating range: -20°C to +60°C
• Flame tests: IEC 60332-1 (fire), IEC 60754 (gas), IEC 61034 (smoke)
• Pulling force: 150N max.
• Caloric value: 650 KJ/m
• Total weight: 68 Kg/Km nom.

Electrical properties @ 20°C
• Mean impedance: 100±5 Ohm @ 1-600 MHz
• Vp: 57-77% nom.
• Capacitance. 40 pF/m nom. @ 1 KHz
• Capacitance unbalance to ground: 1.6 pF/m nom. @ 1 KHz
• Insulation resistance: 0.5 GOhm · Km min.
• DC resistance: 72 Ohm/Km max. (2% max. resistance unbalance)
• DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
• Voltage resistance: 72Vdc max.
• Coupling attenuation: 85dB min. @ 30-100 MHz, 82-20Log(f/100)dB min. @ 100-1000 MHz
• PS-ANEXT loss: 92.5-15Log(f) dB min. @ 1-600 MHz (67 dB max.)
• PS-AACRF: 78.2-20Log(f) dB min. @ 1-600 MHz (67 dB max.)
• Phase delay: 534+36/f1/2 nS/100m max. @ f=1-1000 MHz
• Delay skew: 25 nS/100m max.
