Digitus DIN-Rail adapter for 1x Keystone Modules IP20, inclusive labeling field, dust cover, earthing spring, s AN-25186

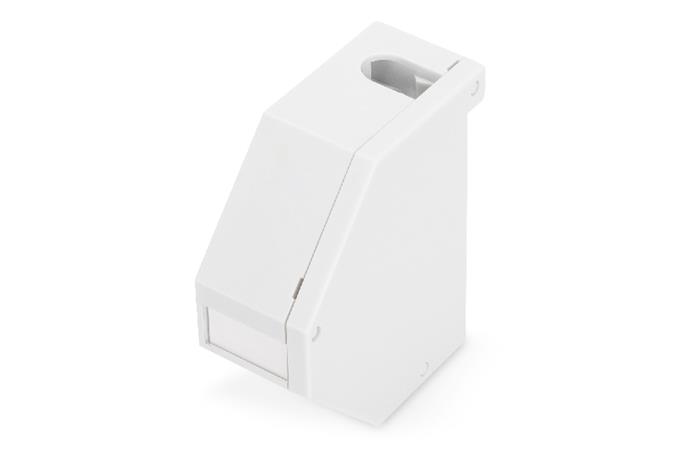

DIN-Rail adapter for 1x Keystone Modules IP20, inclusive labeling field, dust cover, earthing spring, side cover

Fast installation and high functionality for every distribution cabinet

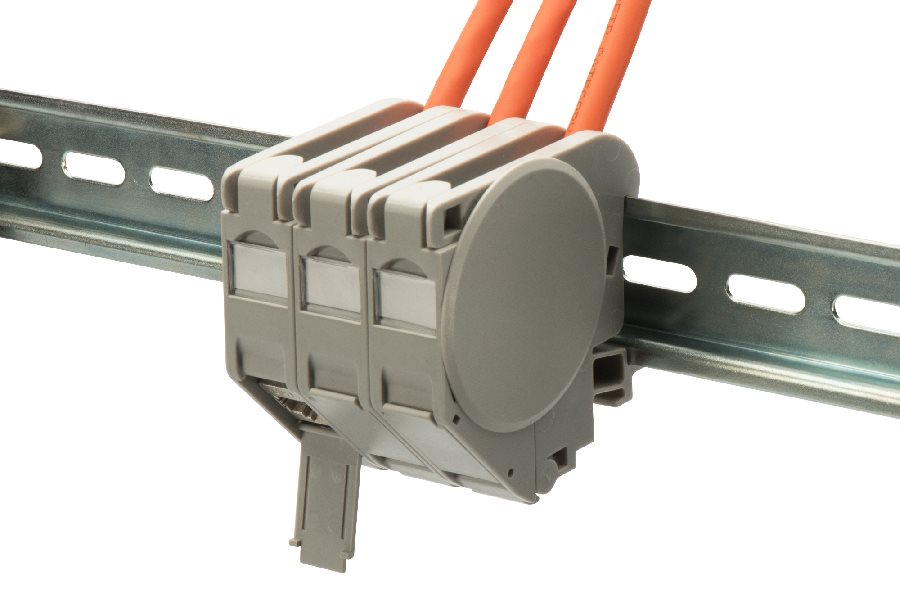

The Keystone Module is mounted in a Housing on a DIN-Rail. The distance of the DIN-Rail to the back plate of the
cabinet should be about 10 mm. Up to 12 Keystone Modules can be installed in a row in the distribution panel. IP20
protection is guaranteed, when the Keystone Housing is mounted with site covers. The delivery does not contain
Keystone Modules.
l Layout keystone entry: 45° vertical outlet
l Area of application: Electrical distribution box
l Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
l General properties:
l Suitable for installation on DIN-Rail in electrical distribution boxes
l Integrated dust cover
l Lateral cover caps included
l Protection class IP20
l Technical properties:
l Housing material: ABS UL-94V-0
l Physical properties:
l Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
