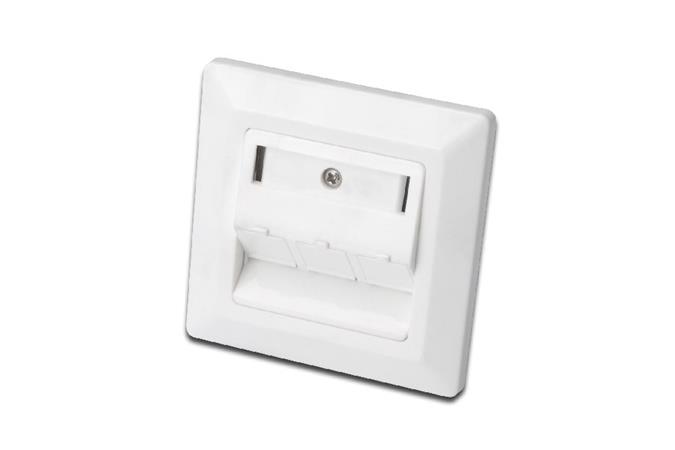

Digitus Faceplate for Keystone Jacks,3x RJ45 dust cover, 80/80 + central plate, pure white, separate ground connection

DIGITUS Faceplate for Keystone Jacks,3x RJ45 dust cover, 80/80 + central plate, pure white, separate ground connection

The DIGITUS® Faceplates are suitable for the connection of all DIGITUS® Keystone Modules. Included dust protection
shutters provide a perfect protection. Their connection way of the module is 45° vertical (German and British Layout) or
90° horizontal (French Layout).
l Layout keystone entry: 45° outlet
l Area of application: Cavity socket, trunking, surface mount box
l Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
l General properties:
l Suitable for installation in trunking, flush and surface mount
l Central ground connection
l Integrated dust cover
l Plastic label field
l Design compatible to current switch ranges of switch manufacturers
l Technical properties:
l Wall outlet material: Die-cast metal
l Central plate material: ABS UL 94V-0
l Frame material: ABS UL 94V-0
l Surface mount box material: ABS UL 94V-0
l Physical properties:
l Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
