Popis produktu:

CAT 5e Keystone Jack, unshielded RJ45 to LSA, tool free connection

Future-oriented standards and high-end quality for your network.

The Cat 5e keystone module supports transmission speeds of up to 1 GBit/s & 100 MHz in connection with cat. 5e or higher network installation cables

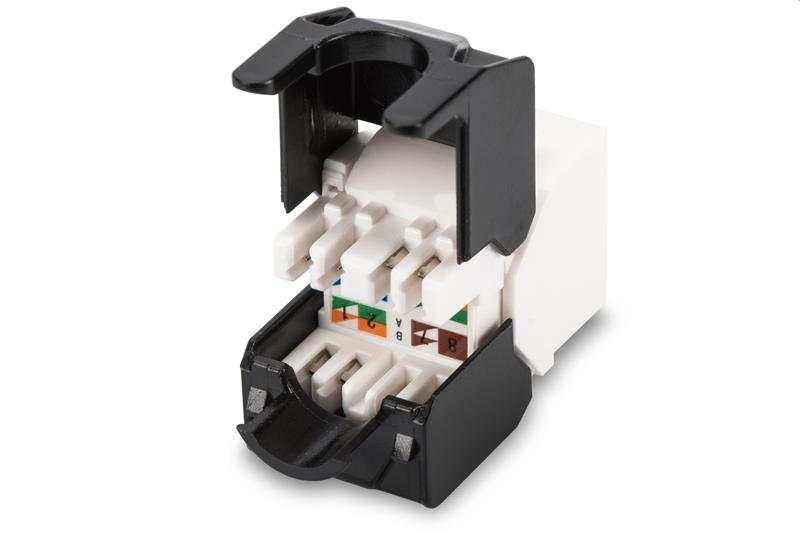

Cable fixation is accomplished using integrated locking caps that can be opened at any time without tools in order to use the keystone module multiple times, for example with field applications

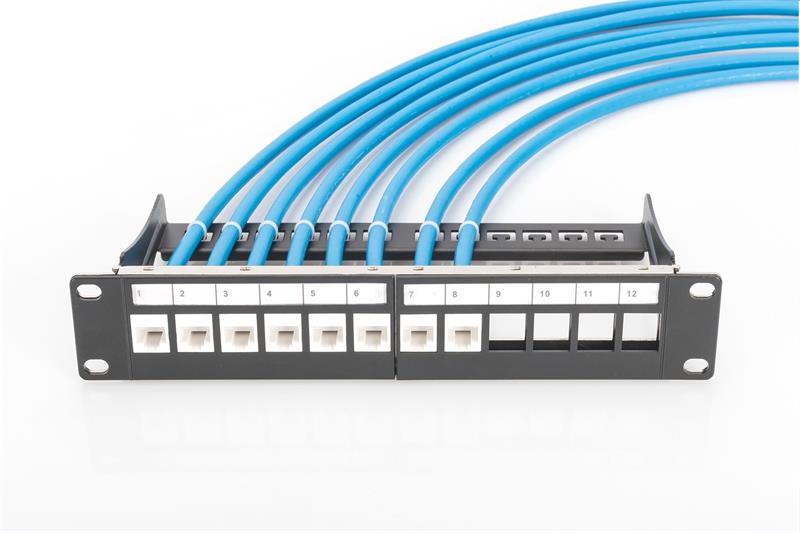

In connection with a modular patch panel and modular network junction boxes, the cat. 5e keystone modules are perfect for structured building cabling
The mounting connection of the keystone module in category 5e / class D makes tool-free installation possible for network cables with conductor cross-sections between AWG 26/7 and 22/1
Stable plastic locking lever on the top of the keystone jack - LSA strips are color-coded in accordance with EIA/TIA 568 A&B - The tensile load between the jack and the plug is 7.7 kg

DESCRIPTION

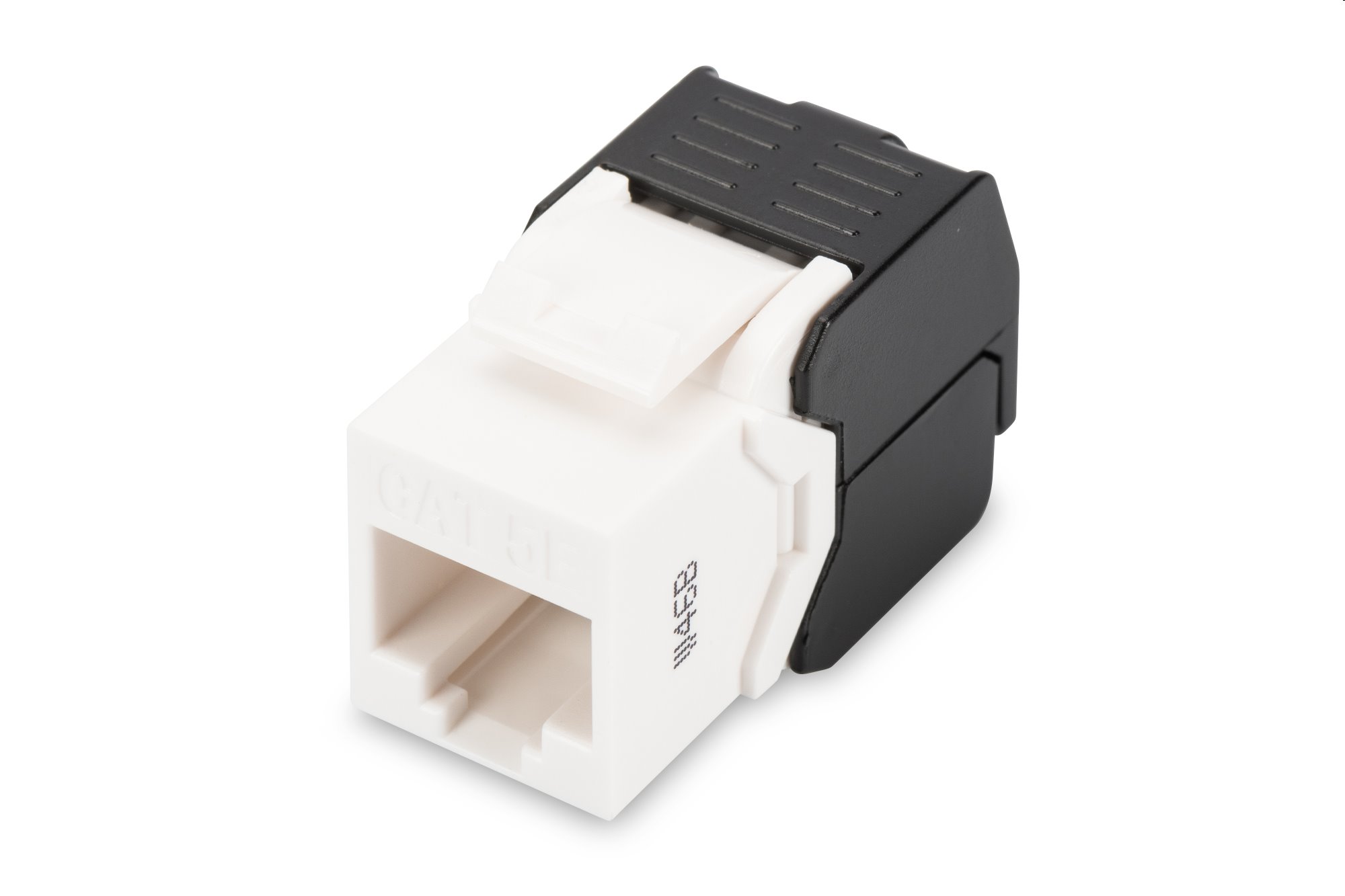

The "DN-93502" from DIGITUS® is an unshielded CAT 5e Keystone Module with tool free installation which provides best performance and link quality for your network. The cable installation takes place via LSA, color coded acc. EIA/TIA 568 A&B.

TECHNICAL DETAILS
Transmission properties: Category 5e
Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for 483 mm (19") cabinet mounting
RJ45 female, 8P8C
Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
Cable fixing with smart cable ties
Tool-free installation
Technical properties:
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact
LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
