Popis produktu:

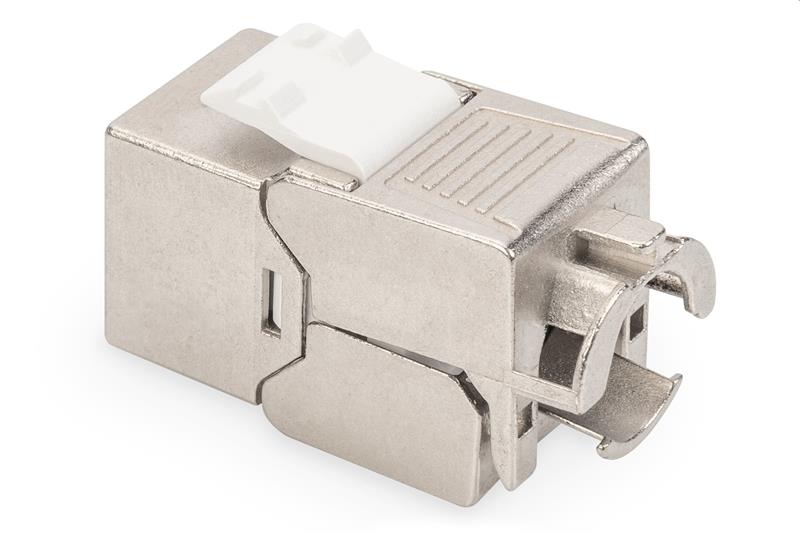

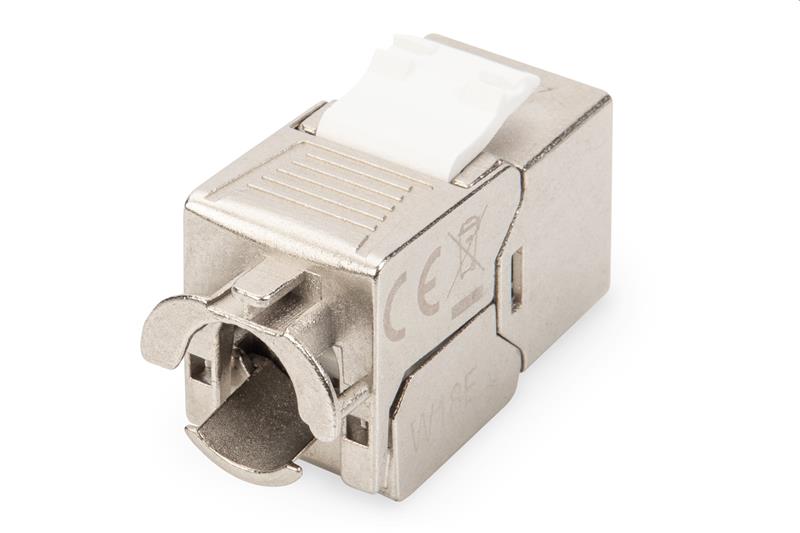

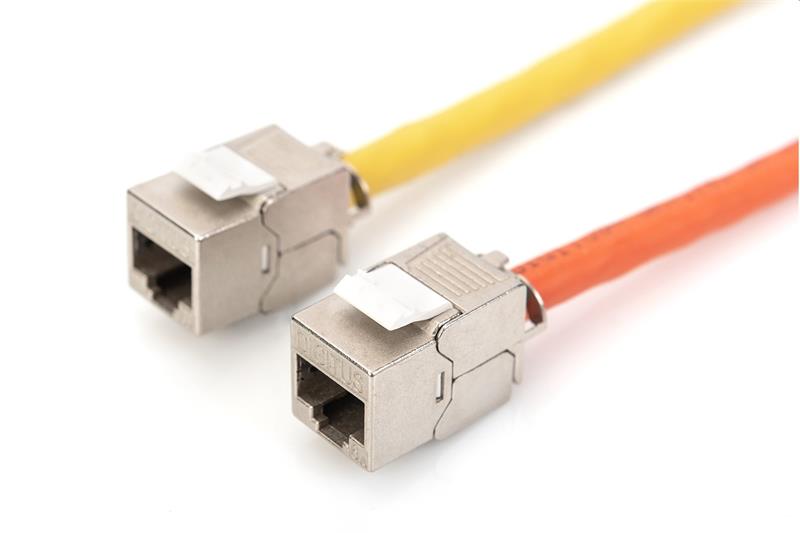

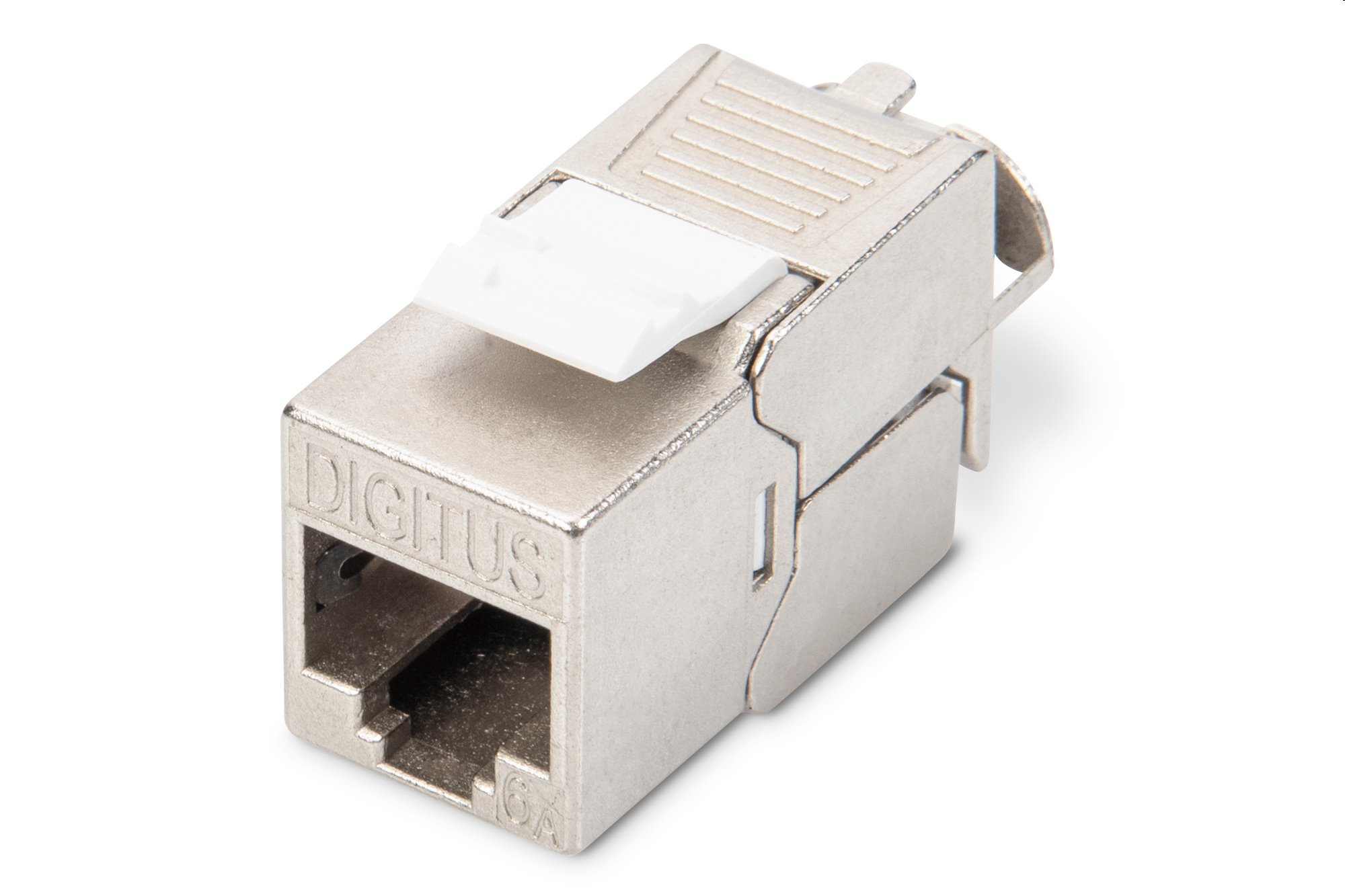

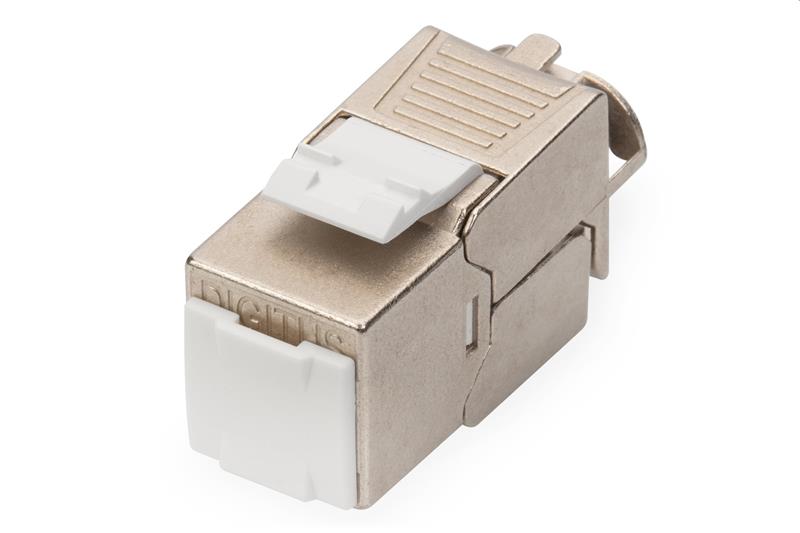

CAT 6A Keystone Jack, shielded,Re-embedded tool free connec., set 24 pcs

Quick and safe wire terminations without any special tool

The cat. 6A keystone module with 360 ° shielding supports transmission speeds of up to 10 GBit/s & 500 MHz in connection with cat. 6A or higher network installation cables
In connection with a modular patch panel and modular network junction boxes, the cat. 6A keystone modules are perfect for modern, structured building cabling
The mounting connection of the keystone module in category 6A / class EA makes tool-free installation possible for network cables with conductor cross-sections between AWG 26/7 and 22/1
Keystone jack with RJ45 jack is GHMT certified - design compatible with standard network sockets - LSA rails color-coded in accordance with EIA/TIA 568 A&B

DESCRIPTION

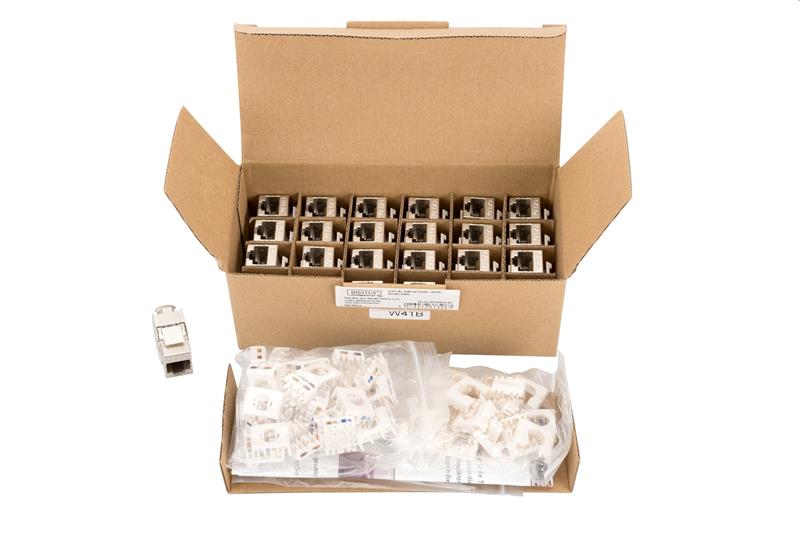

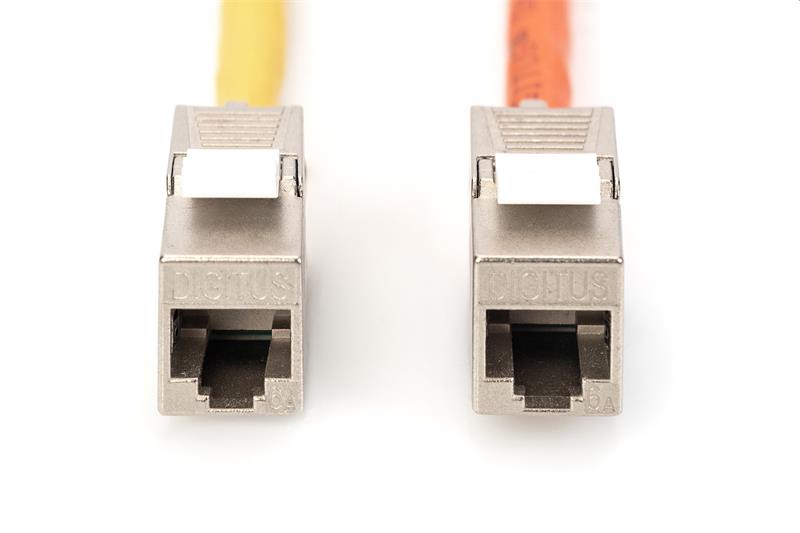

The shielded cat. 6A keystone module set DN-93615-24 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The compact design makes series installation of 24 pieces possible in a 483 mm (19”) 1U panel. Tool-free installation uses LSA rails color-coded in accordance with EIA/TIA 568 A&B. Its compact design also means that the module fits in design-compatible modular junction boxes.

TECHNICAL DETAILS
Category 6A 10G Base-T, 500 MHz
ISO/IEC 11801 3rd edition, EN 50173-1
Suitable for PoE/PoE+/4PPoE (IEEE 802.3af, 802.3at, 802.3bt)
Suitable for distribution panel and junction box mounting
RJ45 jack, 8P8C

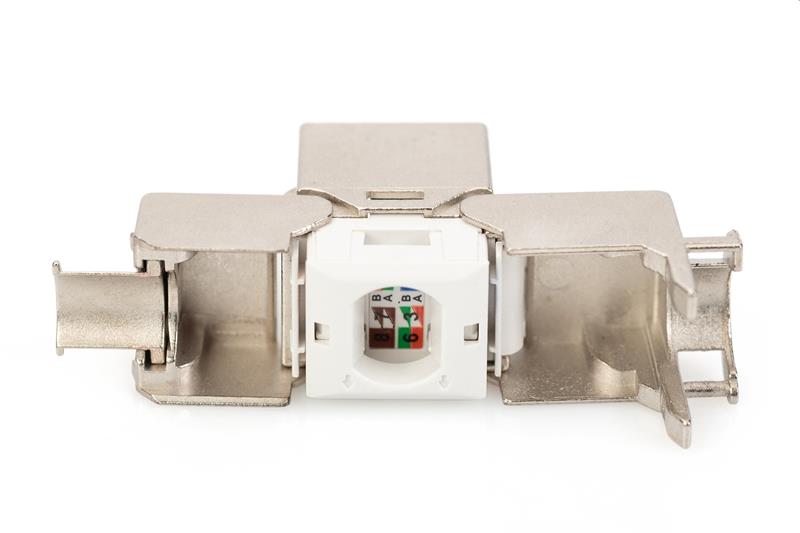

Cable installation via insulation-displacement connectors, color coded in accordance with EIA/TIA 568 A & B
Cable grip and cable fixation using intelligent cable manager
Tool-free mounting connection

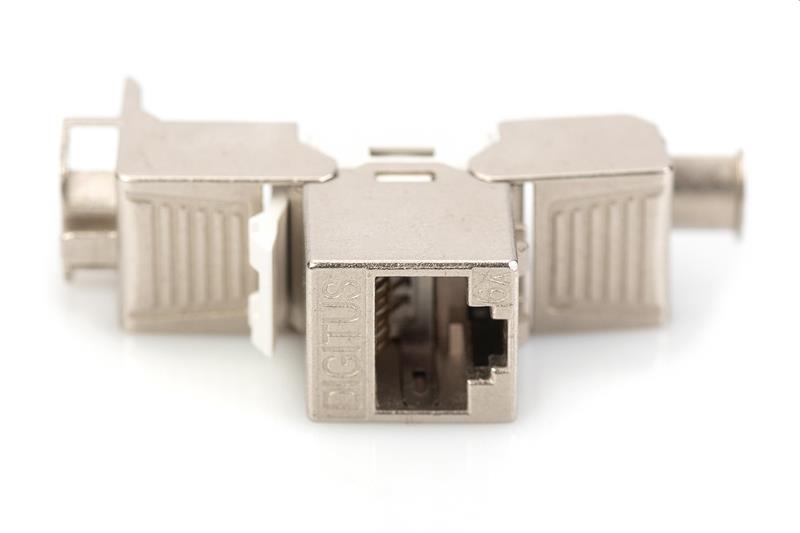

360° shield contact
Case material: Zinc die-cast – nickel-plated
Contact material: Phosphor bronze
Contact coating: Nickel, gold-plated 0.5 µ
Insertion force: Max. 30N (as per IEC 60603-7-51)
Holding force: 7.7 kg between jack and plug
Operating temperature range: -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
Mating cycles: ? 750 (ISO/IEC 11801, IEC 60603-7-51)
Copper cable diameter: AWG (26/7 – 22/1), stranded and solid wire

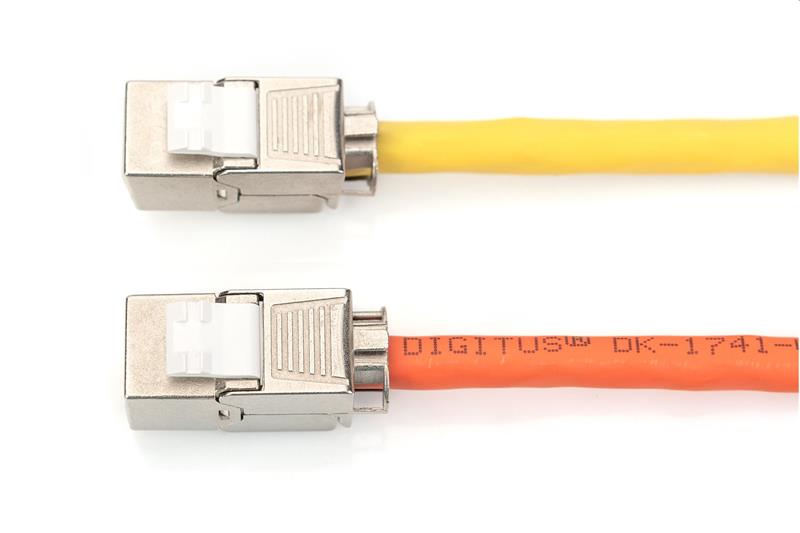

Tested with AWG 22/1 solid installation cable
(DIGITUS® DK-174X-A-VH-X; AWG 22/1 cat. 7A installation cable)
Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Tool-free installation using LSA insulation-displacement connectors color coded in accordance with EIA/TIA 568 A & B
Intelligent cable manager (resealable)
Dimensions (HxWxD): 21.0 x 14.5 x 34.5 mm
Weight: 19.5 g
Weight: 22 g
