Popis produktu:

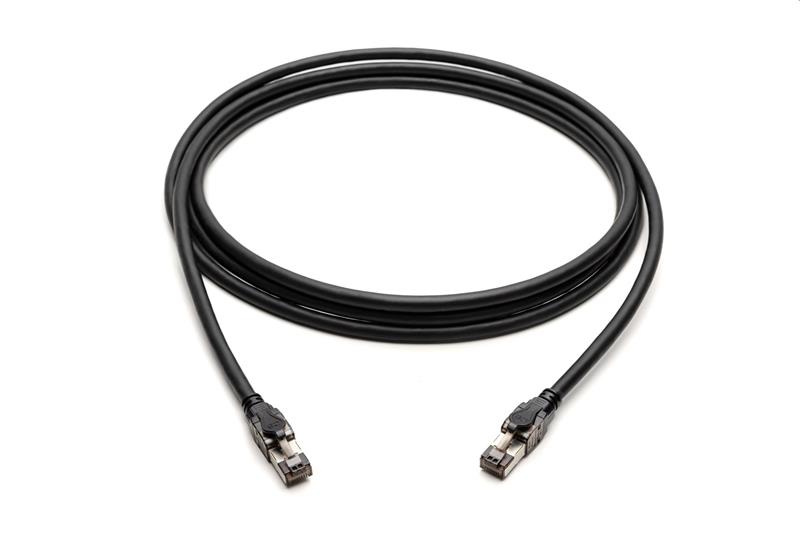

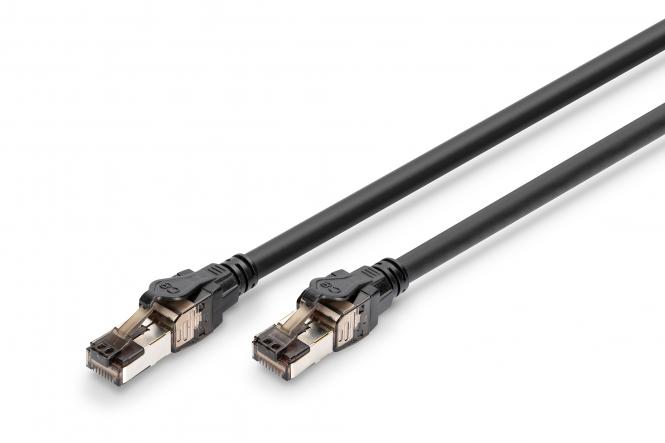

CAT 8.1 S-FTP patch cord, Cu, LSZH AWG 24/7, length 0.5 m, color black

The high-end network solution according to the CAT 8.1 standard

Highest performance: The CAT 8.1 patch cable with connector supports transmission rates of up to 40 Gbit/s at 2000 MHz for maximum network performance

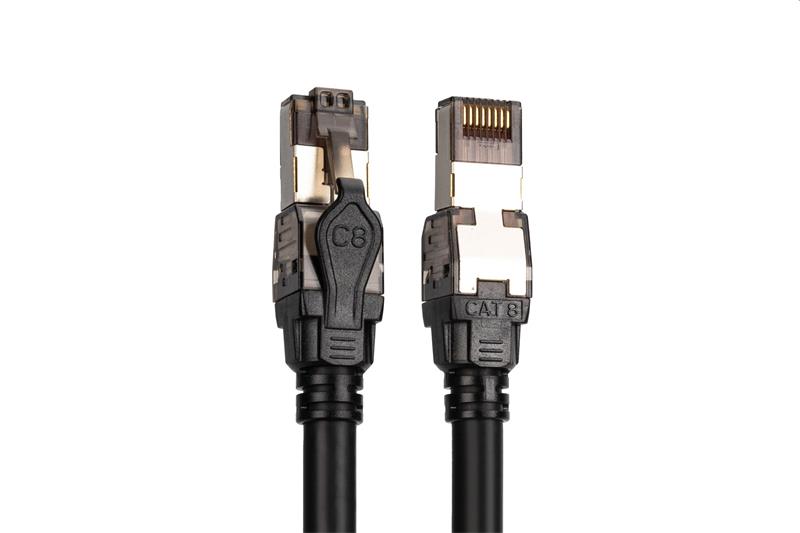

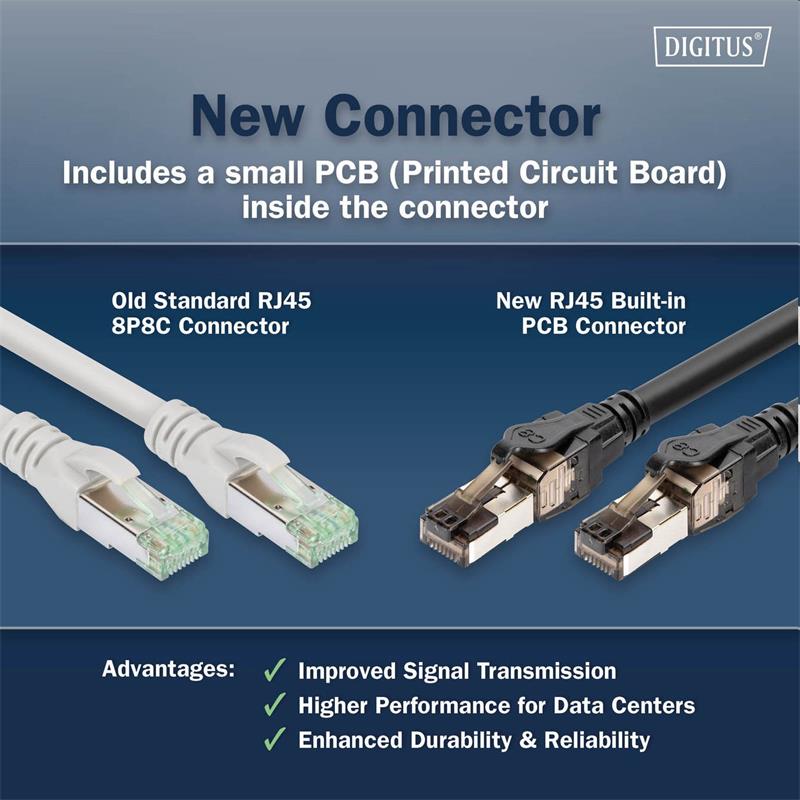

New connector: RJ45 connector with integrated PCB for improved signal integrity and long-term stability
Future-proof compatibility: Ideal for high-speed data centers, server rooms and industrial applications
Supports the IEEE 802.3af (PoE), 802.3at (PoE+) and 802.3bt (PoE++ Type 3 & Type 4) standards

The DIGITUS® Category 8.1 Class I patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 8.1 standard. They guarantee that the cable installation complies with the ISO & EN Channel specification and offer excellent performance in DIGITUS® CAT 8.1 cabling. The performance has been tested up to 2,000 MHz, including performance characteristics such as near-end crosstalk ("NEXT"). The DIGITUS® patch cables have been specially developed to fully meet all requirements in the various application areas. Each cable is equipped with a molded anti-kink grommet with strain relief. The grommet also has a latching lever protection, which prevents the cable from getting caught and the latching lever from breaking off the plug.


Technical details
2 x RJ45 plug connector (PCB)
RJ45 plug connector 3 µ nominal gold-plated over 60 µ nickel-primed contact pins
FO-PE (foamed polyethylene) insulation
Total diameter 8.0 mm ± 0.2 mm
Bending radius 15x OD
Wiring standard EIA/TIA 586B
Color code orange x white, green x white, blue x white, brown x white
Pin assignment 1:1
Contact resistance 750 mating cycles
Contact resistance 30 m? maximum
Unbalanced resistance 3% maximum
Insulation resistance 2500 VDC for 3 seconds
Uninsulated resistance 150 M?/km minimum
Operating temperature -20 °C to +60 °C
NVP 72%
Flame resistance IEC 60332-1
Smoke emission IEC 61034
Typical applications IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T
Standards ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-5
