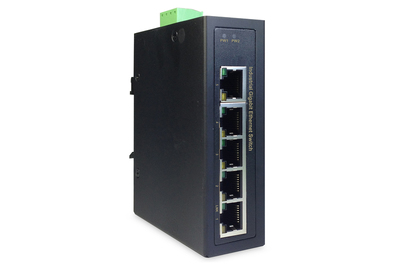

DIGITUS Professional Industrial 5-Port Gigabit Switch DN-651107

Industrial 5-Port Gigabit Switch 5 x 10/100/1000Base-TX Ethernet Ports

Description
Industrial 5-Port Gigabit Switch 5 x 10/100/1000Base-TX Ethernet Ports
Standard / Din Rail mounting dual purpose
Industrial 5-Port Gigabit Switch
5 x 10/100/1000Base-TX Ethernet Ports
Extended operating temperature range, -40 °C ~ +85 °C
The DIGITUS® Industrial Gigabit Switch is designed for harsh environments, where it is exposed to moisture, temperature fluctuations, and vibrations. With a temperature range of -40°C to 85°C, the Industrial Gigabit Switch can be used under the most adverse conditions. It ensures a constant availability in highly sensitive areas such as transport, production, traffic and safety monitoring. The simple plug and play system allows the Industrial Gigabit Switch to be quickly integrated into the respective environment. With its Gigabit connectivity the Industrial Gigabit Switch is a flexible, cost-effective solution for the industrial environment.

Technical Details
5 x 10/100/1000Base-TX Ethernet Ports
Automatic cable detection - Auto MDI / MDI-X function
Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3ab Gigabit Ethernet
IEEE802.3x Flow Control und Back Pressure
Store and forward technology for optimized data transfer
Automatic speed and half/full duplex recognition/adjustment
Backplane with 10Gbps
Supports up to 8K MAC addresses
Compact, robust metal housing
Excellent short circuit protection
Lightning and overvoltage protection
DIN rail (top hat rail) and wall mounting possible
Redundant power supply: 12~56 V DC / 18~36V AC, redundant power supply with reverse polarity protection function
Extended operating temperature range, -40 °C ~ +85 °C
Removable terminal connection
Power Consumption: 2.76 W
MTBF: 500,000 hrs.
EN 50155 (EN 60068-2-6) Vibration
EN 50155 (EN 60068-2-27) Shock
EN 50155 (EN 60068-2-32) Free Fall

Package content
Industrial 5-Port Gigabit Switch
Quick start guide
