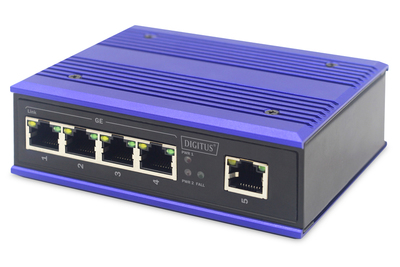

DIGITUS Professional Industrial 5-Port Gigabit Switch DN-651118

Description

Industrial 5-Port Gigabit Switch DIN rail, extended temp. range

Robust and durable industrial solutions with standard and DIN Rail mounting
Industrial 5-Port Gigabit Switch
5 x 10/100/1000Base-TX Ethernet Ports
DIN rail mountable
The DIGITUS® Industrial Gigabit Switch is designed for harsh environments where it is exposed to moisture, temperature fluctuations and vibration. With a temperature range of -40°C to 85°C, the Industrial Gigabitt Switch can be used under the most adverse conditions. It ensures a constant availability in highly sensitive areas such as transport, production, traffic and safety monitoring. The simple plug and play system allows the Industrial Gigabit Switch to be quickly integrated into the respective environment. With its Gigabit connectivity, the Industrial Gigabit Switch is a flexible, cost-effective solution for the industrial environment.

Technical Details
5 x 10/100/1000Base-TX Ethernet Ports
Automatic cable detection - Auto MDI / MDI-X function
Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE802,3z 1000BaseTX
IEEE802.3x Flow Control und Back Pressure
Store and forward technology for optimized data transfer
Automatic speed and half/full duplex recognition/adjustment
Backplane with 10Gbps
Supports up to 4K MAC addresses
Compact, robust metal housing
Excellent short-circuit protection
Lightning and overvoltage protection
DIN rail (top-hat rail) and wall mounting possible
Redundant power supply: 12~48 V DC, redundant power supply with reverse polarity protection function
Extended operating temperature range, -40 °C ~ +85 °C
Removable terminal connection

Package content
Industrial 5-Port Gigabit Switch
quick start guide
