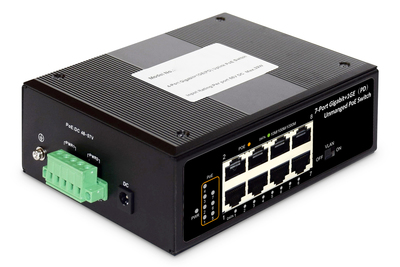

DIGITUS Professional Industrial 7-port Gigabit PoE+ switch with 1x PD port DN-651113

Description

Industrial 7-port Gigabit PoE+Switch+1 PD-port IEEE802.3af/at, DIN rail, extended temp.range

Rugged and durable industrial solutions with integrated Power over Ethernet (PoE) function
Industrieller 7-Port Gigabit PoE+ Switch mit 1 x PD-Port
7x 10/100/1000Base-TX Ethernet PoE ports
1x 10/100/1000Base-TX Ethernet PD (Power Delivery) port
DIN rail mounting possible
The DIGITUS® industrial Gigabit PoE switch is intended for harsh environments where it is exposed to moisture, temperature fluctuations, and vibrations. With a temperature range of -20°C to +70°C, the industrial Gigabit PoE switch can be used under the most adverse conditions. The PoE capable devices can be powered via the PoE ports with IEEE802.3af/at support with up to 30 W per port. The switch can be powered via PoE using the PD (Power Delivery) port. This eliminates the need to connect a power supply to the switch. A constant availability in the highly sensitive areas such as transport, production, traffic and security surveillance is ensured. The simple plug-and-play system allows a fast integration of the industrial Gigabit PoE switch into the respective environment. With Gigabit connectivity and SFP uplink ports, the industrial Gigabit PoE switch provides a flexible, cost-effective solution for the industrial environment.

Technical Details
7x 10/100/1000Base-TX Ethernet PoE ports
1x 10/100/1000Base-TX Ethernet PD (Power Delivery) port
Supports IEEE802.3af/at/bt as PD input power supply up to 95 W
Automatic Cable detection - Auto MDI / MDI-X function
Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3z Gigabit Ethernet
Backplane 16G
MAC address memory 4K
Compact, sturdy metal enclosure
Excellent short-circuit protection
Lightning protection and overvoltage protection
DIN rail (top hat rail) and wall mounting possible
Redundant power supply: 48-57 V/DC, redundant power supply with polarity reversal protection function
Extended operating temperature range, -20 °C to +70 °C
Removable terminal connection

Package content
Industrial 7-port Gigabit PoE+ switch with 1x PD port
Quick start guide
