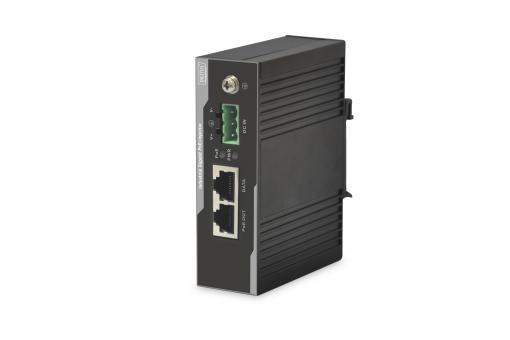

DIGITUS Professional Industrial Gigabit PoE+ Injector 802.3 af/at DN-651112

Industrial Gigabit PoE+ Injector 802.3 af/at 60W power output, DIN rail and wall mount design, -40~75oC

Description
Industrial Gigabit PoE+ Injector 802.3 af/at


High Power output with 60 watts


Industrial Gigabit PoE+ Injector 802.3 af/at
Meets the 802.3af/at PoE standard
48~55V output voltage, 60W

The Digitus PoE Injector allows you to minimize cabling during installation of PoE-ready devices such as IP network cameras. Data supply and power supply to the devices is accomplished using a single Ethernet cable. This makes laying a separate power cable unnecessary and allows you to extend your network to places where there are no outlets or power cables. The Injector is fully compliant with the IEEE802.3at Ultra PoE standard and delivers an output power of 60 W.

Technical details
Meets the 802.3af/at PoE standard
48~55 volt output voltage, 60 watts
RJ45 LAN input
LAN (RJ45) output, power supply via pin: 4/5(+), 7/8(-) and 3/6(+), 1/2(-)
Cable connection: 10/100/1000 Mbps
The output has a current limit, a short-circuit protection and an automatic terminal device detection and classification
Power consumption: 3W max.
Operating temperature: -40°C - 75°C
Less than 0.3W idle consumption
Compact, robust metal housing
Excellent short circuit protection
Lightning and overvoltage protection
DIN rail (top hat rail) and wall mounting possible


Package content
Industrial Gigabit PoE+ Injector 802.3 af/at
Quick start guide
