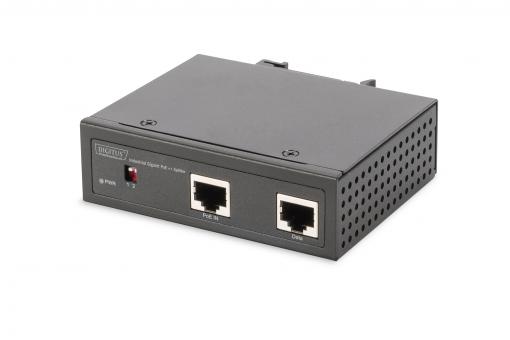

DIGITUS Professional Industrial Gigabit PoE++ Splitter, 802.3bt DN-651111

Industrial Gigabit PoE++ Splitter, 802.3bt selectable power output: 12VDC,16VDC,24VDC,48VDC, Operating temp.: -40o to +75o

Description
Industrial Gigabit PoE++ Splitter, 802.3bt





Gigabit Splitter with up to 95W PoE feed
Flexibly adjustable output voltage: 12VDC, 16VDC, 24VDC, 48VDC
Gigabit data output for network connection

The DIGITUS® Industrial Gigabit PoE Splitter is designed for harsh environments, in which it is exposed to moisture, temperature variations and vibrations. With a temperature range of -40°C to 75°C, the Industrial Gigabit PoE Splitter can be used under the most adverse conditions. It ensures a constant availability in highly sensitive areas such as transport, production, traffic and safety monitoring. The simple plug-and-play system allows a fast integration of the Industrial Gigabit PoE Splitter into the respective environment. The DIGITUS® DN-651111 is an unmanaged Plug & Play Industrial Gigabit PoE Splitter in a rugged IP30 protected aluminum housing. The Gigabit connectivity, as well as the selectable voltage that can be provided for non-PoE compatible devices, make the Industrial Gigabit PoE Splitter a flexible, cost-effective solution for the industrial environment. The supply voltage can be selected in the range of 12VDC, 16VDC, 24VDC or 48VDC. The IEEE802.3bt standard allows PoE feed of up to 95W. Two parallel current outputs are provided for terminal devices.

Technical details
Gigabit Splitter with up to 95W PoE feed
Flexibly adjustable output voltage: 12VDC, 16VDC, 24VDC, 48VDC
Gigabit data output for network connection
Backward compatible with IEEE802.3af/at standard
Store and forward technology for optimized data transfer
Auto MDI/MDI-X function
Diagnostic LEDs for status and activity monitoring
Operating temperature: -40°C to +75°C


Package content
Industrial Gigabit PoE++ Splitter, 802.3bt
Quick start guide
