DIGITUS Professional Network Rack Unique Series - 800x800 mm (WxD) DN-19 26U-8/8-1

The DIGITUS® Professional Unique Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany

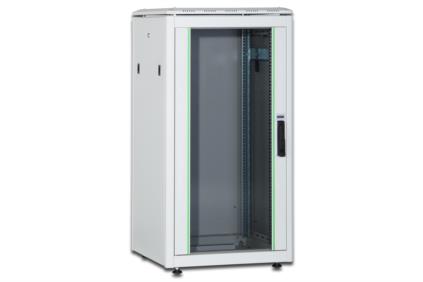

26U network rack, Unique, 1342x800x800 mm, color grey (RAL 7035)

The Network Racks of the Unique Series were designed for the user friendly installation of active- and passive network components accompanied by a neat cable management. Each rack consists of up to 1.5 mm strong steel sheet material which ensures a very good stability as a robust steel construction due to special plate curving technique. The color is created by powder coating in grey (RAL 7035) and black (RAL 9005). For certain conditions, where the set-up location is difficult to reach, the rack can be disassembled. Doors can be easily detached and the door stop can be changed from right to left. The roof is present with an added lid which contains air ventilation slots for a better air circulation. Furthermore the roof is ready for the mounting of an air ventilation unit. Each network rack contains 2 pairs (4 pieces) of 483 mm (19”) profile rails inside which are galvanized and with height unit marking (countable from both directions). They are variable in depth and connected with additional depth support bars to realize extensive 483 mm (19”) equipment installations. An important aspect for each installation is the cable management. The base of each rack is equipped with a sliding cable entry panel with rubber sealing. Racks from 26U are equipped with two cable entries with brush strips on the rear side above- and underneath the door. For cabinets with 800 mm width, the possibilities of cable management get enhanced with additional cable entries with brushes left and right in the top and base chassis. Furthermore there are mounted vertical cable ducts with shutter left and right to the 483 mm (19”) profile rails in the front (on cabinets from 32U and 800 mm width). An extensive portfolio of accessories for cable management, shelves, etc. will help to meet many requirements in daily use.


The DIGITUS® Professional Unique Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany
Safety class rating IP20
Complete metal frame front door with safety glass
Lock system with pivot lever on front door (ready for profile half cylinder; adapter included)
120° door opening angle on front- and rear doors
Double wing opening rear door
1-point-locking-mechanism on all doors
Side panels are lockable and removable
incl. 4 pieces of leveling feet already pre-configured under the rack
483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
483 mm (19“) profile rails are adjustable in depth and with height unit marking
Built-in depth support bars for more stability
Sliding cable entry with rubber sealing on the base
Cable entry with brush strip at the top and bottom of the cabinet rear side
Top and base with brushed cable entries left and right
Special roof construction for fan unit with added lid which can be unmounted
Several earthing points for rack components
Incl. installation set (screws, cage nuts, washers)
Rack is completely mounted
Cabinet type: Network cabinet
Front door: Glass door
Color: light grey, RAL 7035
Load capacity: 800 kg
Units: 26
Width: 800 mm
Depth: 800 mm
Dimensions (HxWxD): 1342,800,800 mm
