DIGITUS Zásuvka Profi STP 2 port, Cat5E pod omietku, LSA, biela DN-9001-N


Kód:

ITA160516

Part No.:

DN-9001-N

Záruka:

24 Mesiacov

Výrobca
Digitus
DPH
23%
Vaša cena s DPH
6.31 €
Vaša cena bez DPH
5.13 €

 bez DPH


Záruka
24 Mesiacov
Objednať

Certifikovaný partner

Rýchle doručenie

Široký sortiment

Osobný odber tovaru



Popis produktu

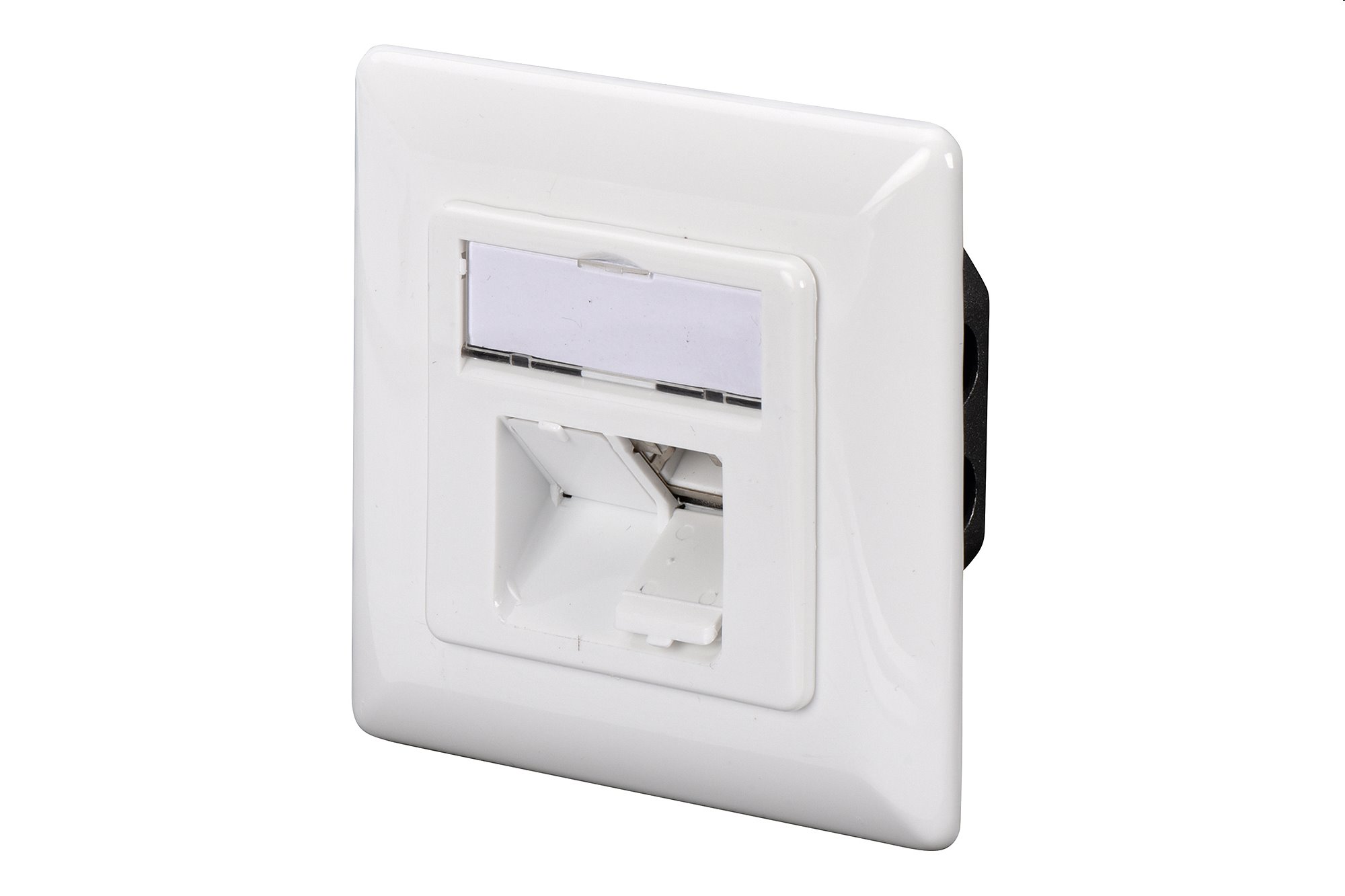

CAT 5e wall outlet, shielded, 2x RJ45 8P8C, LSA, color pure white, flush mount

Full compatible design

Flush mount design and horizontal cable entry provide a neat installation
Ensured safety due to completely shielded RJ45 sockets and LSA strips
The sockets are angled by 40° which makes the plug in of patch cables very easy

DESCRIPTION
The shielded CAT 5e network outlets from DIGITUS® are certificated to CAT 5e EIA/TIA 568 and ISO/IEC 11801, EN 50173. The cable installation takes place via LSA strips, color coded acc. EIA/TIA 568 B with horizontal cable entry. All network outlets from DIGITUS® are available flush mount or surface mount.


TECHNICAL DETAILS
Transmission property: Category 5e
Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for installation in trunking, surface and flush mount
RJ45 female, 8P8C

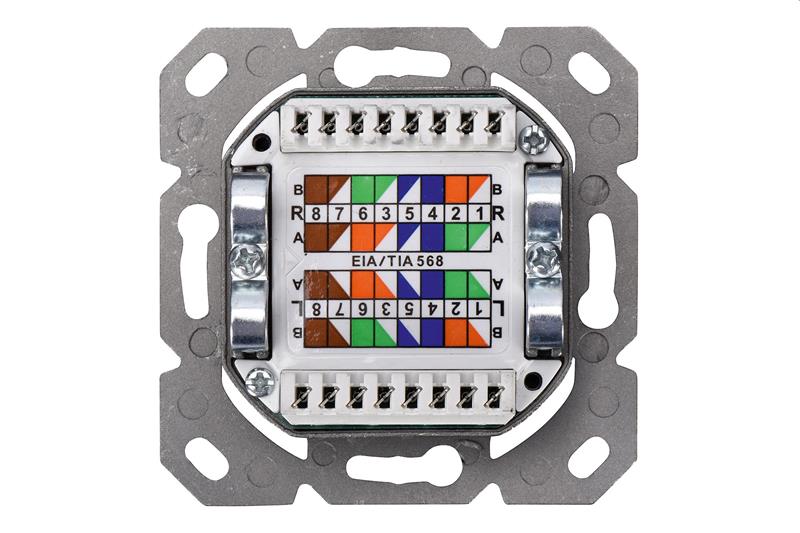

Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
Integrated strain relief for installation cables
Complete shielding of RJ45 sockets and LSA strips due to zinc die-cast housing
Strain relief 40°-angled female for patch cord
Central plate: 50 x 50 mm
Frame: 80 x 80 mm
Central plate with integrated dust covers
Design compatible to common switch ranges
Technical properties:
Housing material: Die-cast metal
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Not compatible with R&M freenet patch cords
Colour: White RAL9003
