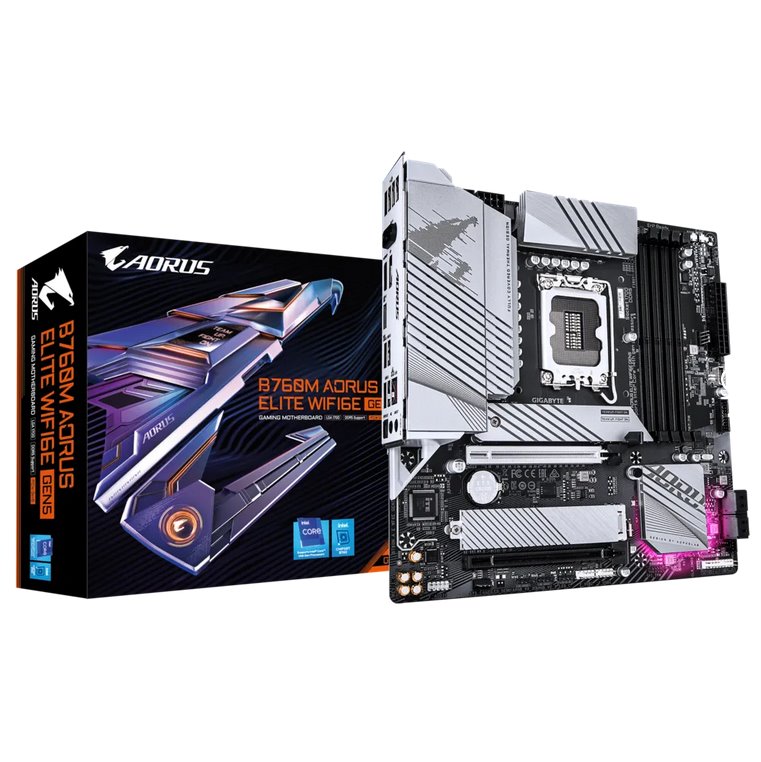

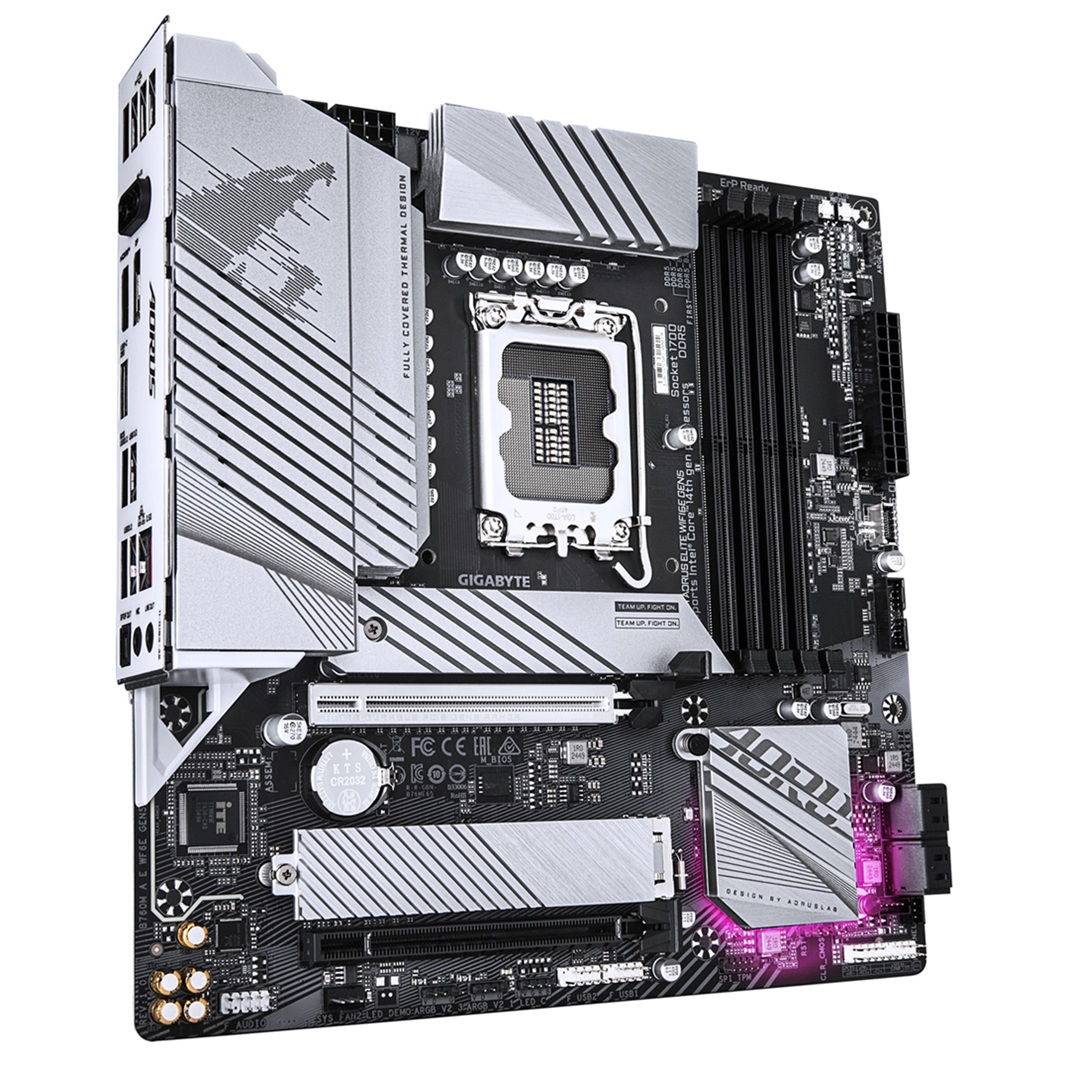

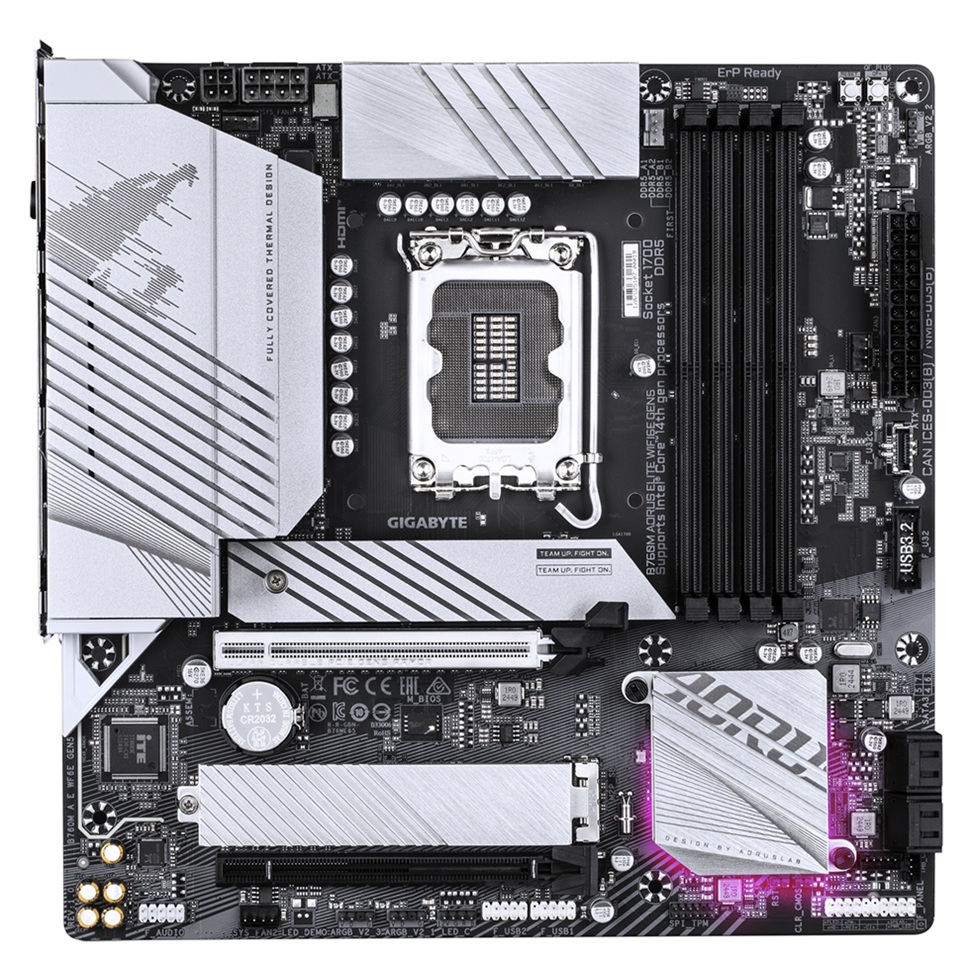

Gigabyte AORUS B760M ELITE WIFI6E GEN5, Intel B760, LGA1700, 4xDDR5, mATX B760M A E WF6E GEN5

Key Features

   PCIe Gen5 Performance : Perfect Sync to Win
   Supports Intel® Core™ 14th/ 13th /12th processors
   Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
   WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
   WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal
   EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
   EZ-Latch Plus : M.2 Connectors with Quick Release & Screwless Design
   PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support
   Unparalleled Performance : Twin 12*+1+1 Phases Hybrid VRM Solution
   Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
   Fast Networks : 2.5GbE LAN & Wi-Fi 6E 802.11ax
   Extended Connectivity : Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s, DP, HDMI
   Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
   Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
   Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
   High-Res Audio : ALC1220 & High-End Audio Capacitors

   CPU
   LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™,Pentium® Gold and Celeron® Processors
   (Go to GIGABYTE's website for the latest CPU support list.)
   L3 cache varies with CPU
   Chipset
   Intel® B760 Express Chipset
   Memory
   14th and 13th Generation Intel® Core™ i9/i7 Pocessors:
   - Support for DDR5 5600/5200/4800/4400 MT/s memory modulesjk
   13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
   - Support for DDR5 4800/4400 MT/s memory modulesjk
   4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryjk
   Dual channel memory architecture
   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for Extreme Memory Profile (XMP) memory modules
   (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
   Onboard Graphics
   Integrated Graphics Processor-Intel® HD Graphics support:
   - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support for native HDMI 2.1 TMDS compatible ports.

   - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

   * Support for DisplayPort 1.2 version and HDCP 2.3

   (Graphics specifications may vary depending on CPU support.)
   Audio
   Realtek® Audio CODEC
   High Definition Audio
   2/4/5.1/7.1-channel

   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

   Support for S/PDIF Out
   LAN
   Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
   Wireless Communication module
   Intel® Wi-Fi 6E AX210
   - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
   - BLUETOOTH 5.3
   - Support for 11ax 160MHz wireless standard
   (Actual data rate may vary depending on environment and equipment.)
   Expansion Slots
   CPU:
   - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

   * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

   Chipset:
   - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
   Storage Interface
   CPU:
   - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
   Chipset:
   - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
   - 4 x SATA 6Gb/s connectors
   RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
   USB
   Chipset:
   - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
   - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
   - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
   - 1 x USB 3.2 Gen 1 port on the back panel
   - 4 x USB 2.0/1.1 ports available through the internal USB headers
   Chipset+USB 3.2 Gen 1 Hub:
   - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
   Chipset+USB 2.0 Hub:
   - 4 x USB 2.0/1.1 ports on the back panel
   Internal I/O Connectors
   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x 4-pin ATX 12V power connector
   1 x CPU fan header
   3 x system fan headers
   3 x addressable RGB Gen2 LED strip headers
   1 x RGB LED strip header
   2 x M.2 Socket 3 connectors
   4 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x USB Type-C® header, with USB 3.2 Gen 2 support
   1 x USB 3.2 Gen 1 header
   2 x USB 2.0/1.1 headers
   2 x Thunderbolt™ add-in card connectors
   1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
   1 x Q-Flash Plus button
   1 x reset button
   1 x reset jumper
   1 x Clear CMOS jumper

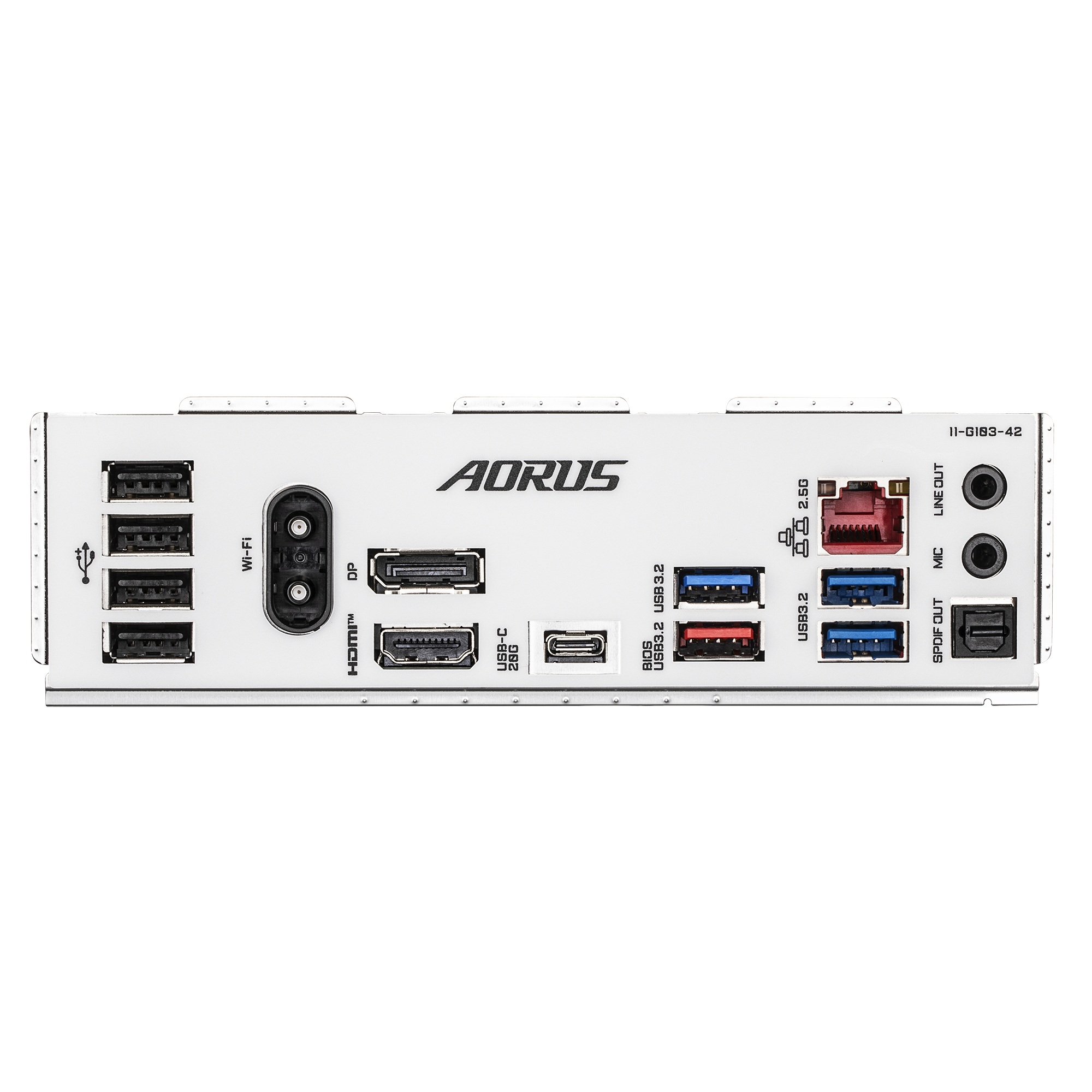

   Back Panel Connectors
   2 x antenna connectors (2T2R)
   1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
   1 x USB 3.2 Gen 2 Type-A port (red)
   3 x USB 3.2 Gen 1 ports
   4 x USB 2.0/1.1 ports
   1 x HDMI port (Note)
   1 x DisplayPort (Note)
   1 x RJ-45 port
   1 x optical S/PDIF Out connector
   2 x audio jacks

   (Note) Actual support may vary by CPU.
   I/O Controller
   iTE® I/O Controller Chip
   H/W Monitoring
   Voltage detection
   Temperature detection
   Fan speed detection
   Water cooling flow rate detection
   Fan fail warning
   Fan speed control

   * Whether the fan speed control function is supported will depend on the fan you install.
   BIOS
   1 x 256 Mbit flash
   Use of licensed AMI UEFI BIOS
   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
   Unique Features
   Support for GIGABYTE Control Center (GCC)

   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

   Support for Q-Flash
   Support for Q-Flash Plus
   Bundled Software
   Norton® Internet Security (OEM version)
   LAN bandwidth management software
   Operating System
   Support for Windows 11 64-bit
   Support for Windows 10 64-bit
   Form Factor
   Micro ATX Form Factor; 24.4cm x 24.4cm
