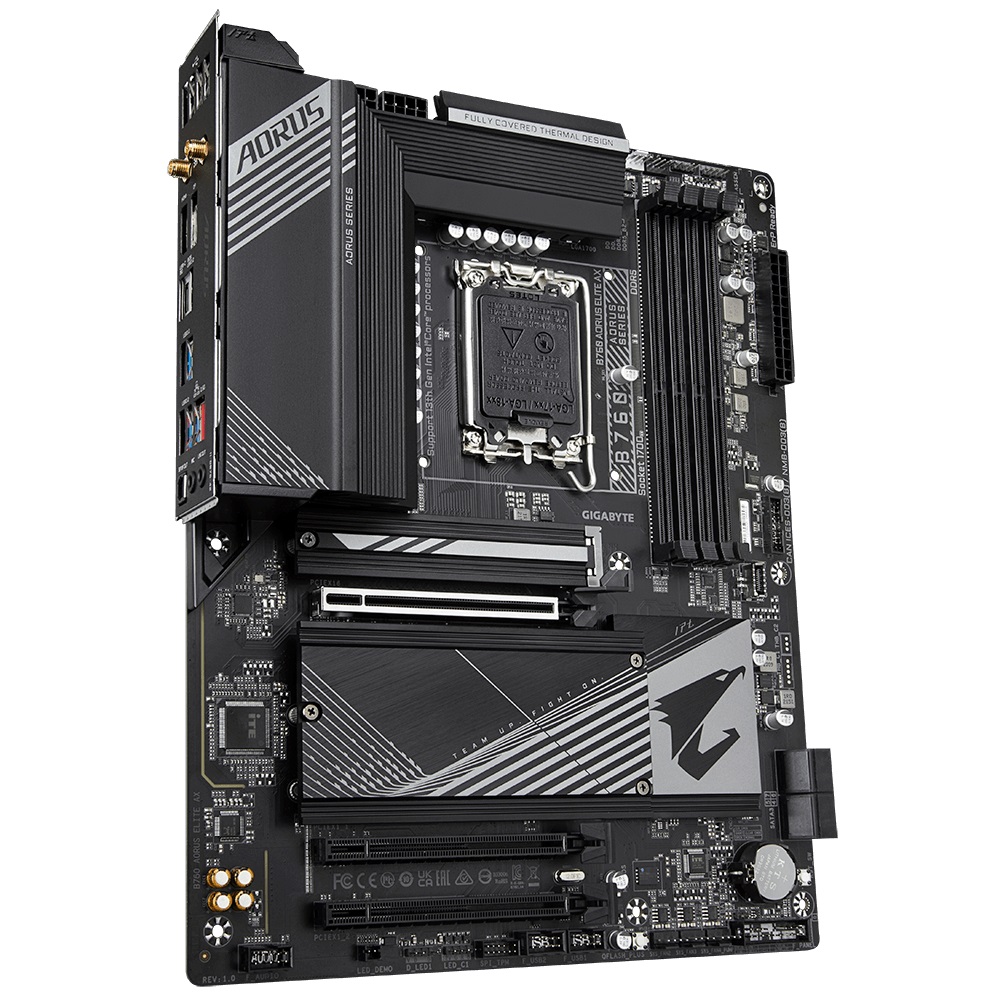

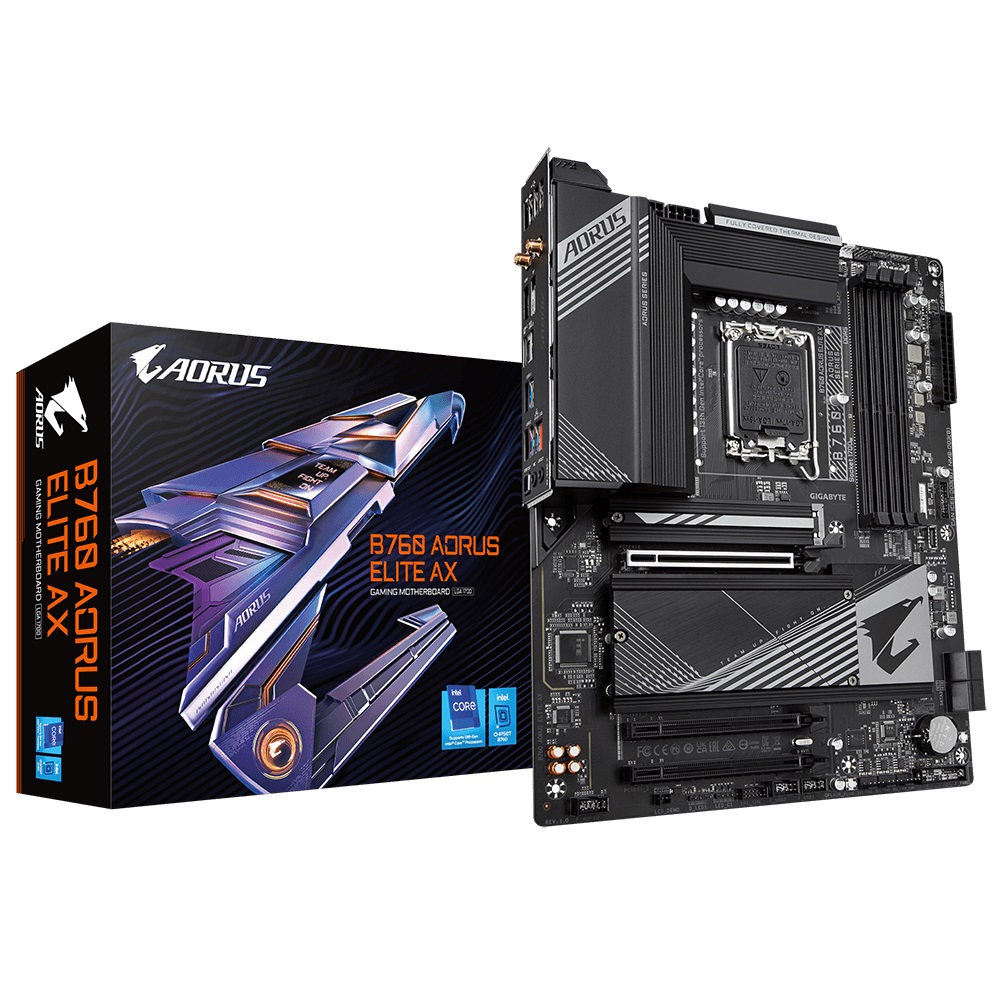

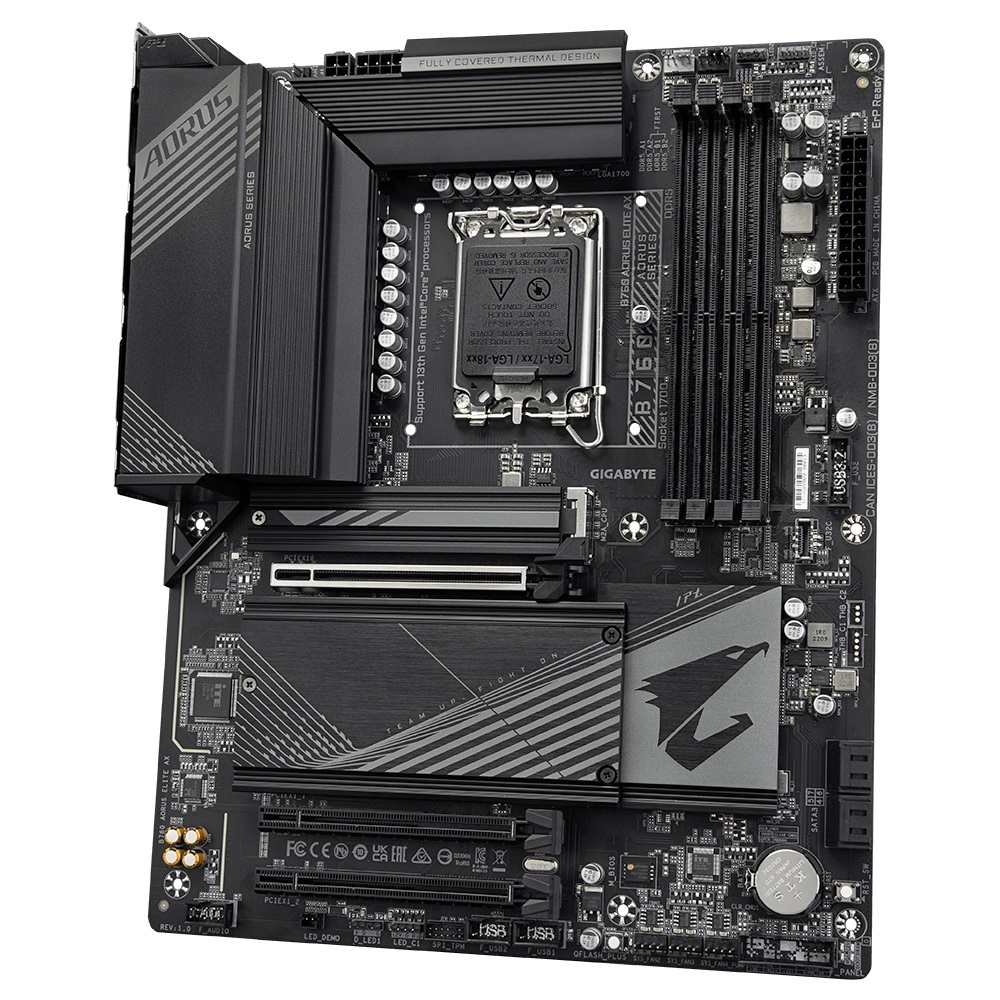

Gigabyte B760 AORUS ELITE AX , Intel B760, Socket1700, 4xDDR5, ATX

   LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
   L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.
Chipset
   Intel® B760 Express Chipset
Memory
   Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
   4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
   Dual channel memory architecture
   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:

   1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.0 version and HDCP 2.3.
   1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
   * Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)
Audio
   Realtek® Audio CODEC
   High Definition Audio
   2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
   Support for S/PDIF Out
LAN
   Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel® Wi-Fi 6E AX211
   WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
   BLUETOOTH 5.3
   Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
CPU:
   1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
   2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Storage Interface
CPU:
   1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
   2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
   4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
   2 x USB Type-C® ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)
   1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
   2 x USB 3.2 Gen 1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
   4 x USB 3.2 Gen 1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
   8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors
   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x 4-pin ATX 12V power connector
   1 x CPU fan header
   1 x CPU fan/water cooling pump header
   3 x system fan headers
   1 x system fan/water cooling pump header
   2 x addressable LED strip headers
   2 x RGB LED strip headers
   3 x M.2 Socket 3 connectors
   4 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x USB Type-C® header, with USB 3.2 Gen 2 support
   1 x USB 3.2 Gen 1 header
   2 x USB 2.0/1.1 headers
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
   1 x reset button
   1 x Q-Flash Plus button
   1 x reset jumper
   1 x Clear CMOS jumper

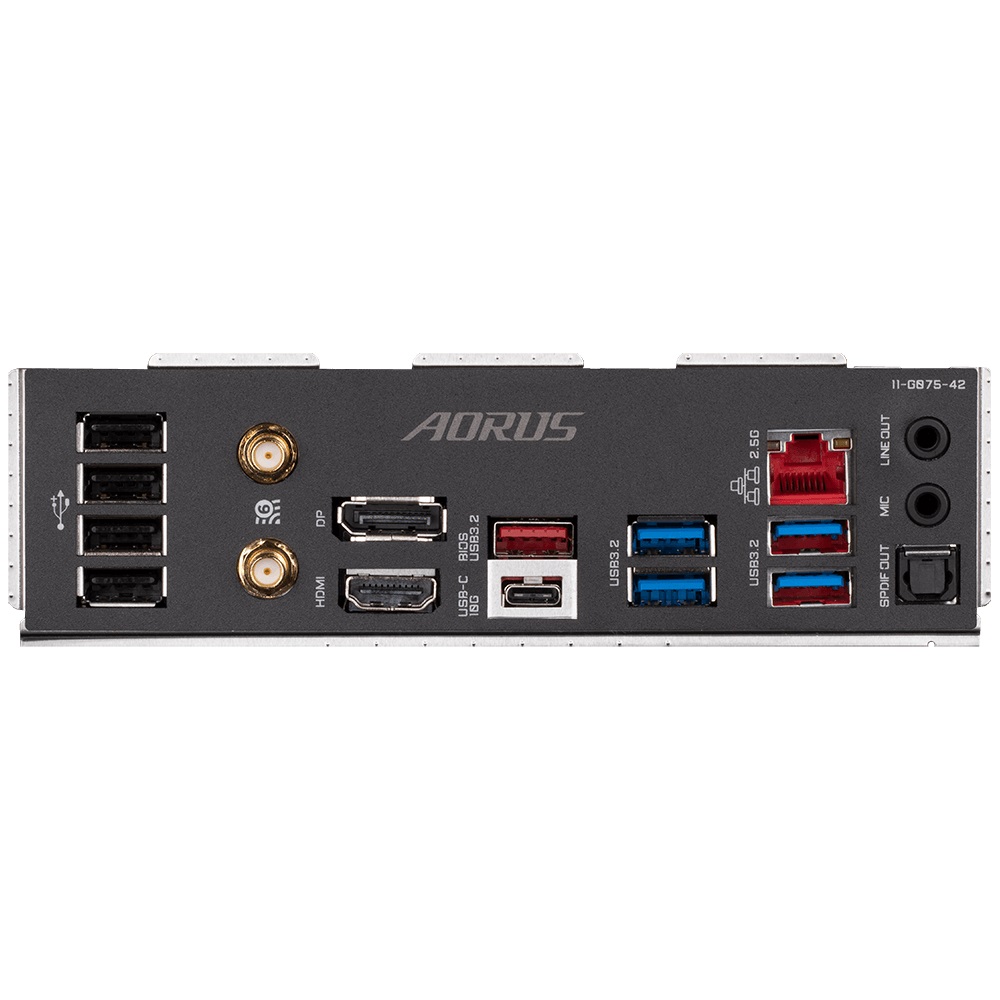

Back Panel Connectors
   1 x USB Type-C® port, with USB 3.2 Gen 2 support
   1 x USB 3.2 Gen 2 Type-A port (red)
   4 x USB 3.2 Gen 1 ports
   4 x USB 2.0/1.1 ports
   2 x SMA antenna connectors (2T2R)
   1 x HDMI port
   1 x DisplayPort
   1 x RJ-45 port
   1 x optical S/PDIF Out connector
   2 x audio jacks
Operating System
   Support for Windows 11 64-bit
   Support for Windows 10 64-bit
Form Factor
   ATX Form Factor; 30.5cm x 24.4cm
