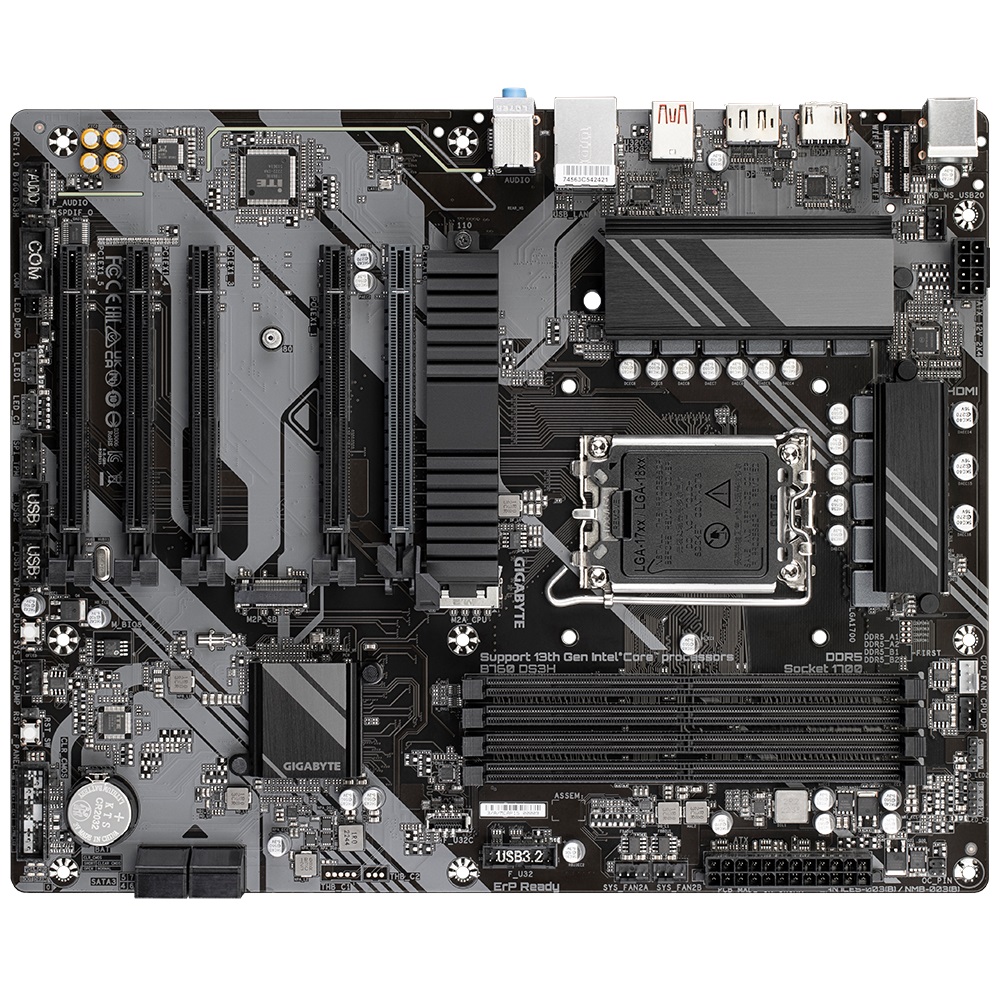

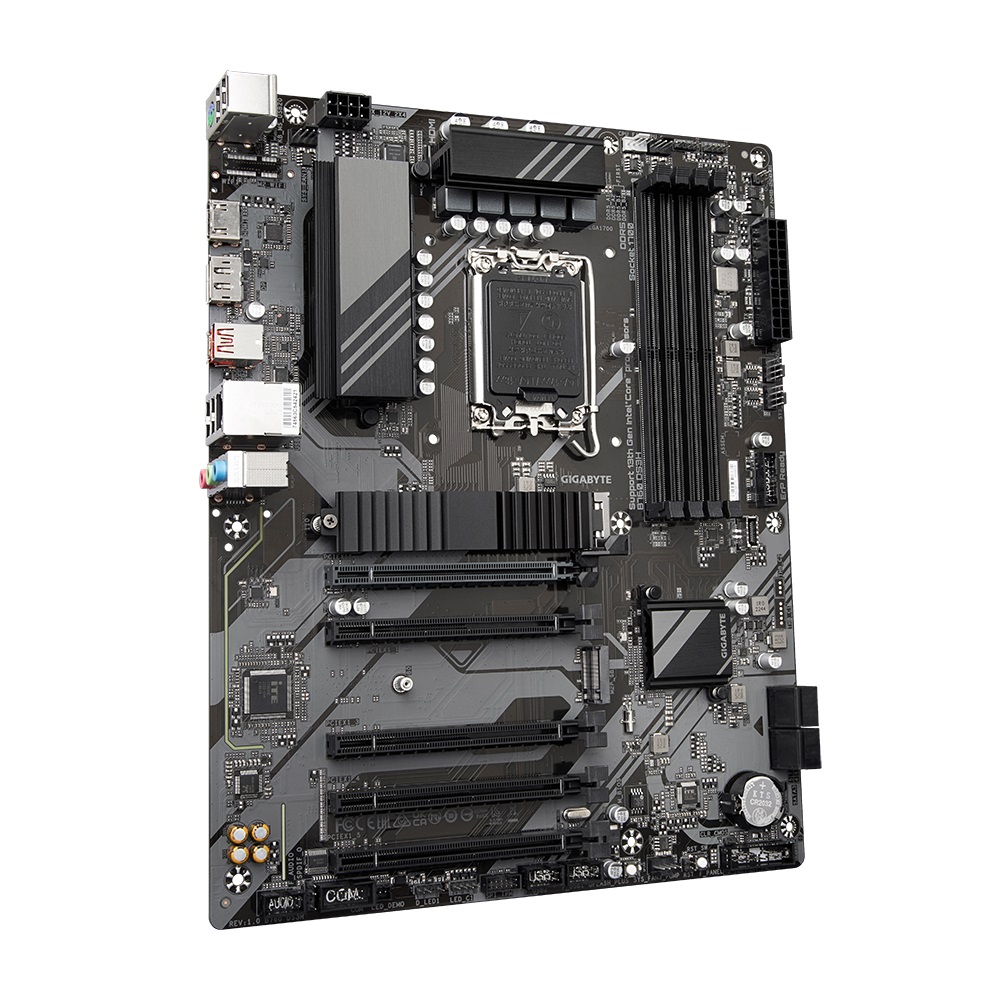

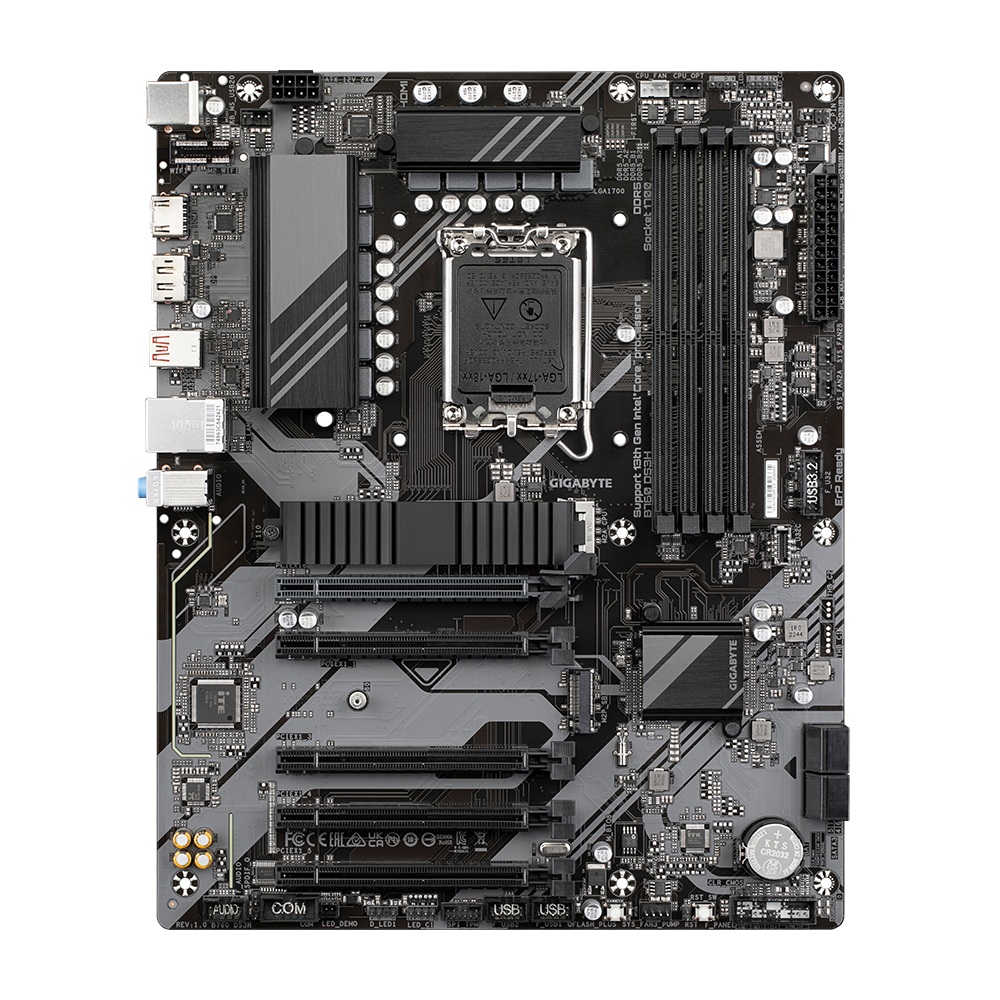

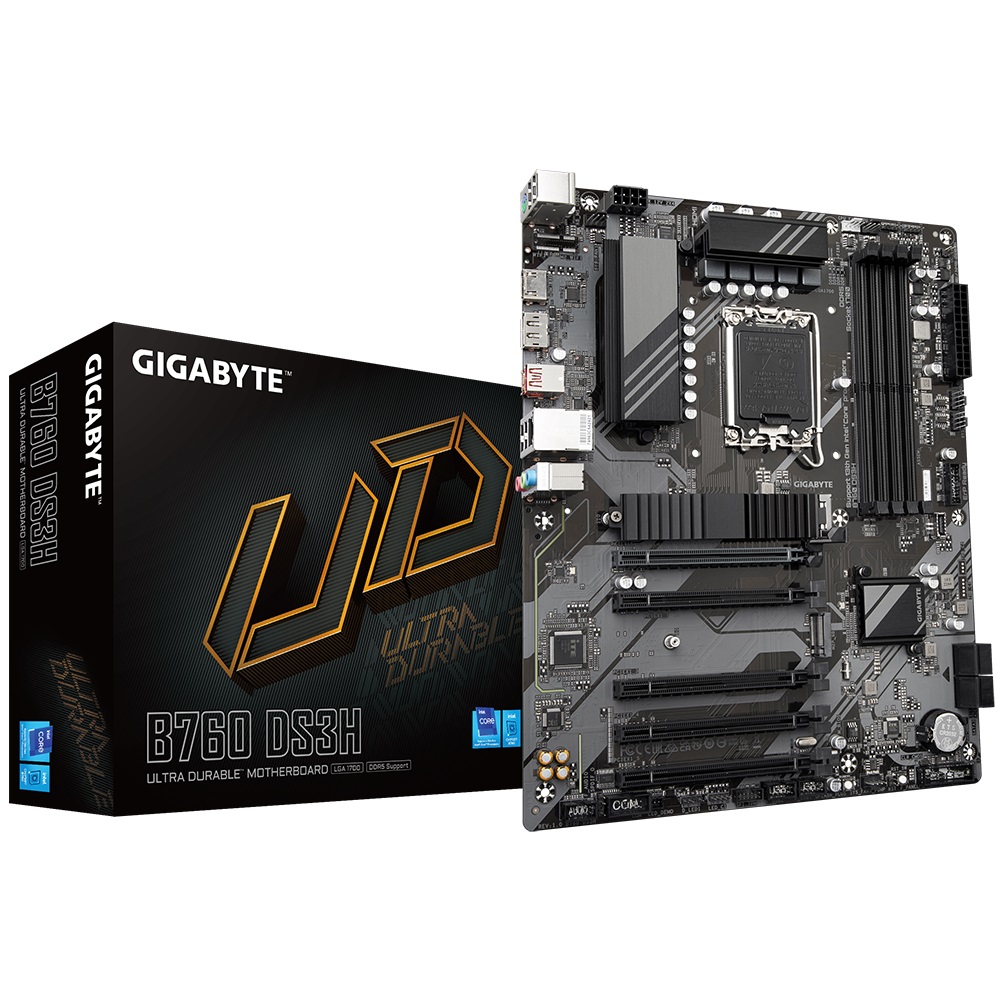

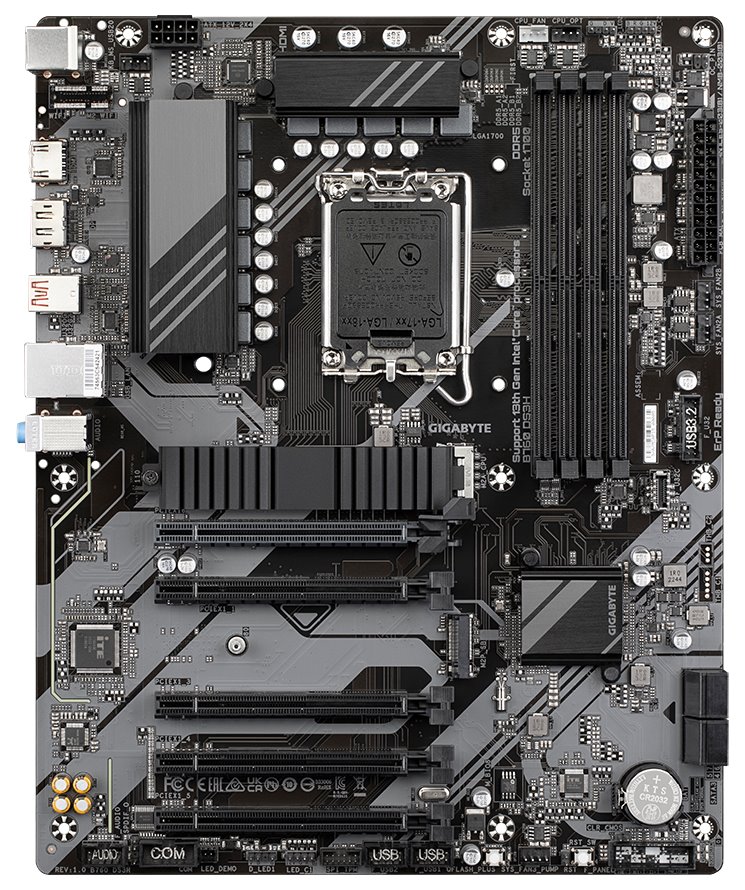

Gigabyte B760 DS3H , Intel B760, Socket1700, 4xDDR5, ATX

   LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
   L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
   Intel® B760 Express Chipset
Memory
   Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
   4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
   Dual channel memory architecture
   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:

   1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.0 version and HDCP 2.3.
   1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
   * Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)
Audio
   Realtek® Audio CODEC
   High Definition Audio
   2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
   Support for S/PDIF Out
LAN
   Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
CPU:
   1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
   4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
   (PCIEX1_1, PCIEX1_3~PCIEX1_5)
Storage Interface
CPU:
   1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:
   1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
   4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
   1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
   1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
   1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
   2 x USB 3.2 Gen 1 ports available through the internal USB header
   4 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
   4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x CPU fan header
   1 x CPU fan/water cooling pump header
   3 x system fan headers
   1 x system fan/water cooling pump header
   2 x addressable LED strip headers
   2 x RGB LED strip headers
   2 x M.2 Socket 3 connectors
   4 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x S/PDIF Out header
   1 x USB Type-C® header, with USB 3.2 Gen 1 support
   1 x USB 3.2 Gen 1 header
   2 x USB 2.0/1.1 headers
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
   1 x serial port header
   1 x Q-Flash Plus button
   1 x reset button
   1 x reset jumper
   1 x Clear CMOS jumper

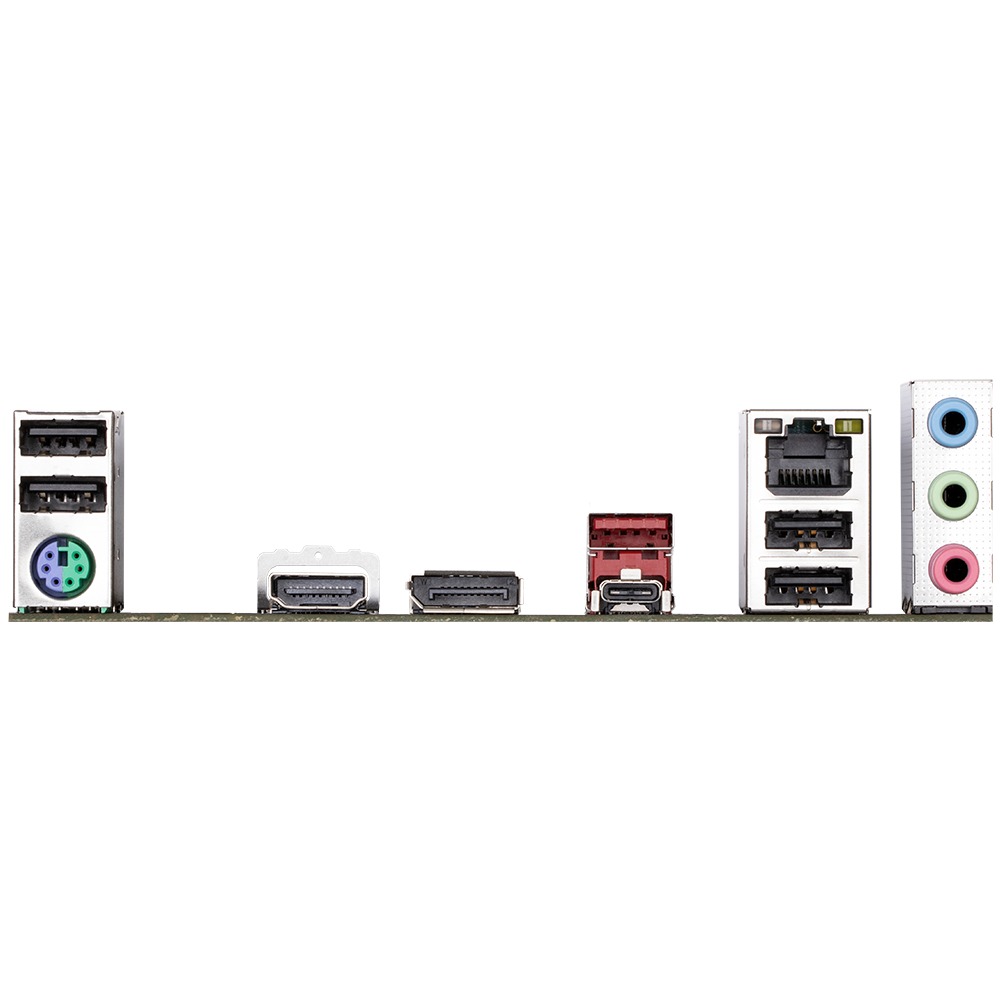

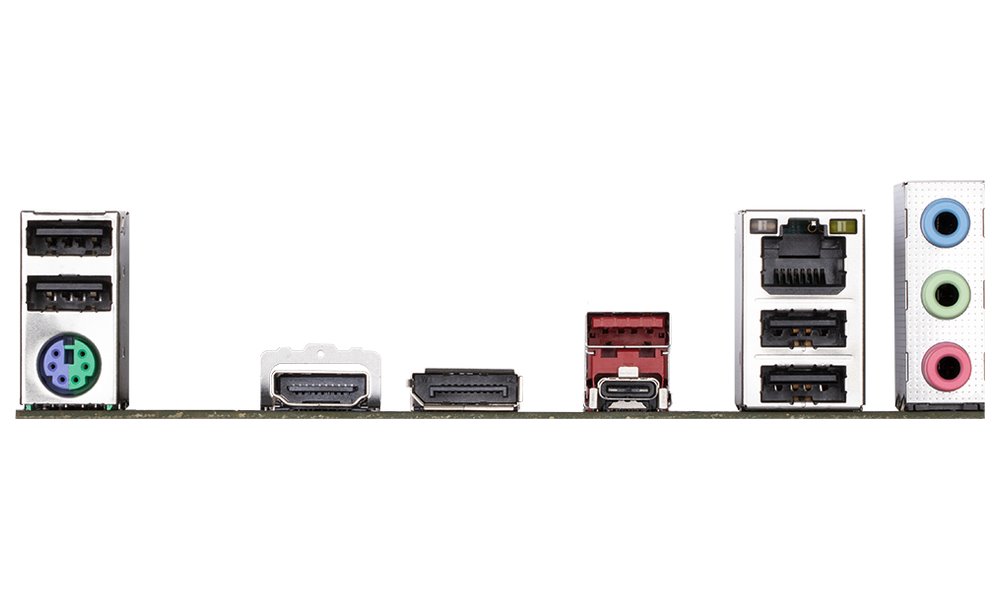

Back Panel Connectors
   1 x PS/2 keyboard/mouse port
   1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
   1 x USB 3.2 Gen 2 Type-A port (red)
   4 x USB 2.0/1.1 ports
   1 x HDMI port
   1 x DisplayPort
   1 x RJ-45 port
   3 x audio jacks
Operating System
   Support for Windows 11 64-bit
   Support for Windows 10 64-bit
Form Factor
   ATX Form Factor; 30.5cm x 24.4cm
