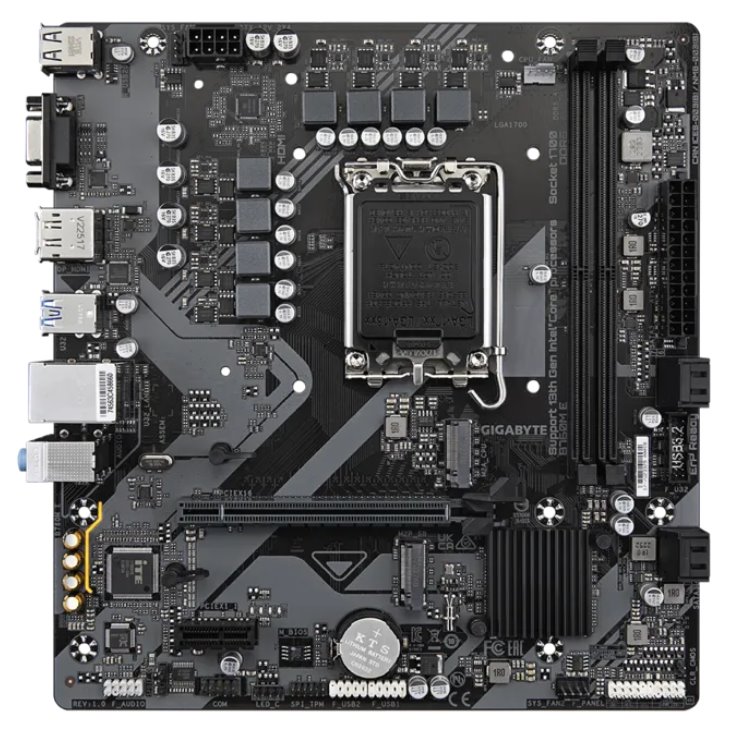

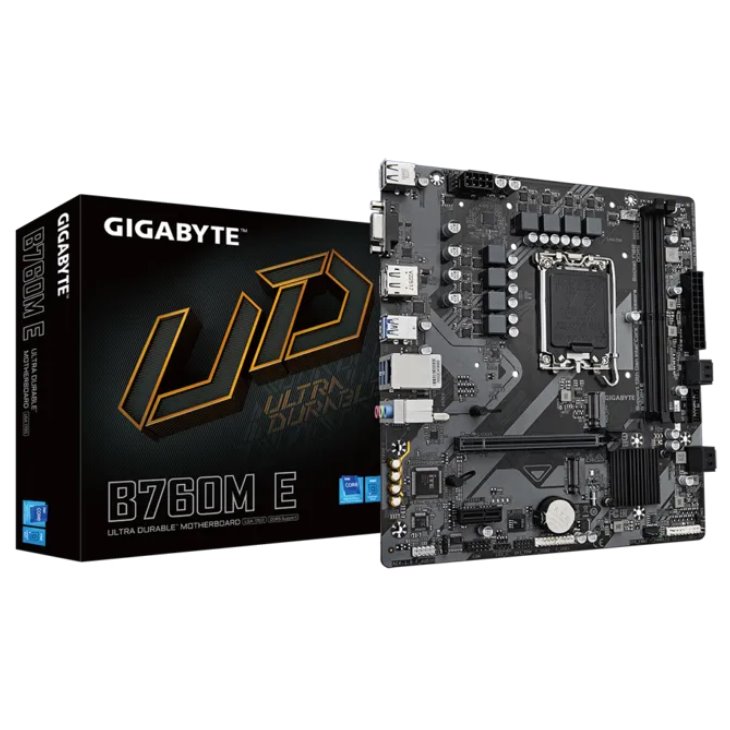

Gigabyte B760M E, Intel B760, LGA1700, 2xDDR5, mATX


Kód:

ITA394777

Part No.:

B760M E

Záruka:

36 Mesiacov

Výrobca
GIGABYTE
DPH
23%
Vaša cena s DPH
84.49 €
Vaša cena bez DPH
68.69 €

 bez DPH


Záruka
36 Mesiacov
Objednať
Vypočítať splátky Už od 1.96 € mesačne

Certifikovaný partner

Rýchle doručenie

Široký sortiment

Osobný odber tovaru



Popis produktu

Supports Intel® Core™ 14th/ 13th /12th processors
Unparalleled Performance:Hybrid 6+1+1 Phases Digital VRM Solution
Dual Channel DDR5:2*DIMMs XMP Memory Module Support
Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design
Fast Networks:GbE LAN
Extended Connectivity:Display Port, HDMI, D-Sub
Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

   CPU
   LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
   L3 cache varies with CPU
   (Please refer "CPU Support List" for more information.)

   Chipset
   Intel ® B760 Express Chipset

   Memory
   Support for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
   2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
   Dual channel memory architecture
   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for Extreme Memory Profile (XMP) memory modules

   (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

   Onboard Graphics
   Integrated Graphics Processor-Intel® HD Graphics support:
   - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
   - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

   * Support for DisplayPort 1.2 version and HDCP 2.3

   - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support native HDMI 2.1 TMDS compatible ports.

   (Graphics specifications may vary depending on CPU support.)
   Support for up to triple-display at the same time

   Audio
   Realtek® Audio CODEC
   High Definition Audio
   2/4/5.1/7.1-channel

   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
   Support for S/PDIF Out

   LAN
   Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

   Expansion Slots
   CPU:
   - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

   * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

   Chipset:
   - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

   Storage Interface
   CPU:
   - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU)
   Chipset:
   - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
   - 4 x SATA 6Gb/s connectors
   RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

   USB
   Chipset:
   - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
   - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

   Internal I/O Connectors
   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x CPU fan header
   2 x system fan headers
   1 x RGB LED strip header
   2 x M.2 Socket 3 connectors
   4 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x S/PDIF Out header
   1 x USB 3.2 Gen 1 header
   2 x USB 2.0/1.1 headers
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
   1 x serial port header
   1 x Clear CMOS jumper

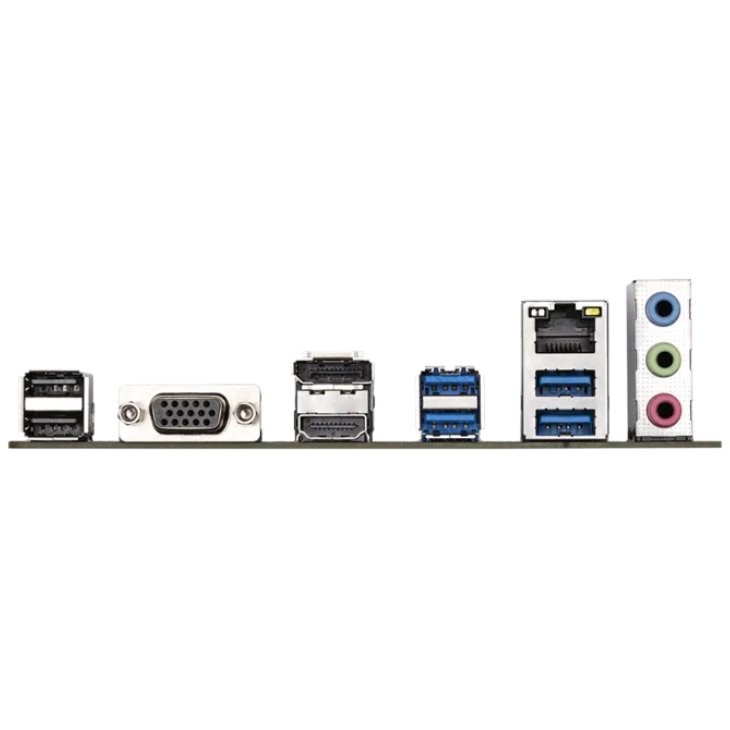

   Back Panel Connectors
   2 x USB 2.0/1.1 ports
   1 x D-Sub port
   1 x DisplayPort
   1 x HDMI port
   4 x USB 3.2 Gen 1 ports
   1 x RJ-45 port
   3 x audio jacks

   I/O Controller
   iTE® I/O Controller Chip

   H/W Monitoring
   Voltage detection
   Temperature detection
   Fan speed detection
   Water cooling flow rate detection
   Fan fail warning
   Fan speed control

   * Whether the fan speed control function is supported will depend on the fan you install.

   BIOS
   1 x 128 Mbit flash
   Use of licensed AMI UEFI BIOS
   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

   Unique Features
   Support for GIGABYTE Control Center (GCC)

   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   Support for Q-Flash

   Bundled Software
   Norton® Internet Security (OEM version)
   LAN bandwidth management software

   Operating System
   Support for Windows 11 64-bit
   Support for Windows 10 64-bit

   Form Factor
   Micro ATX Form Factor; 23.0cm x 21.5cm
