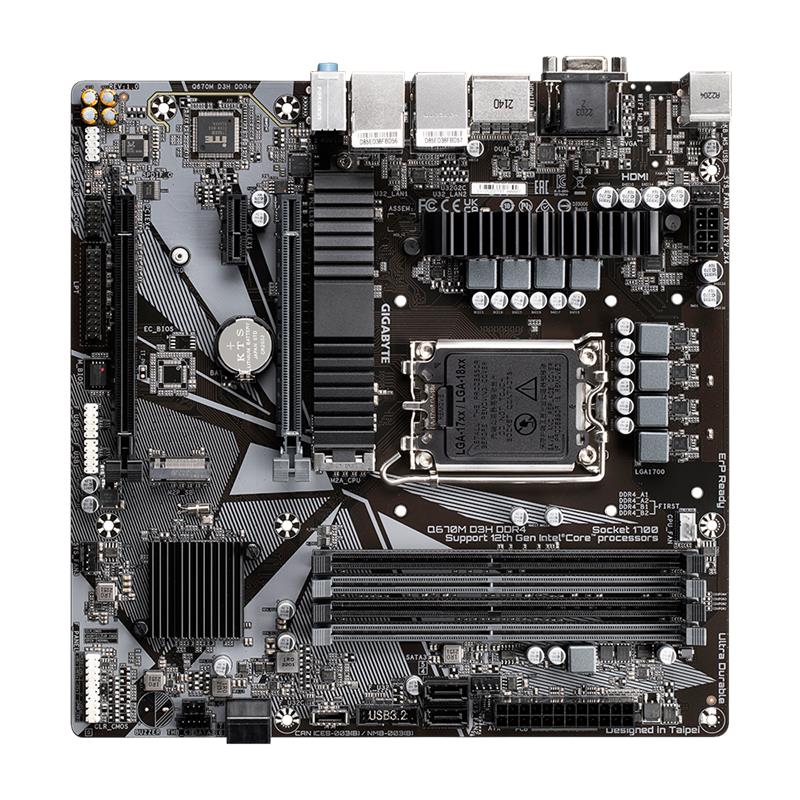

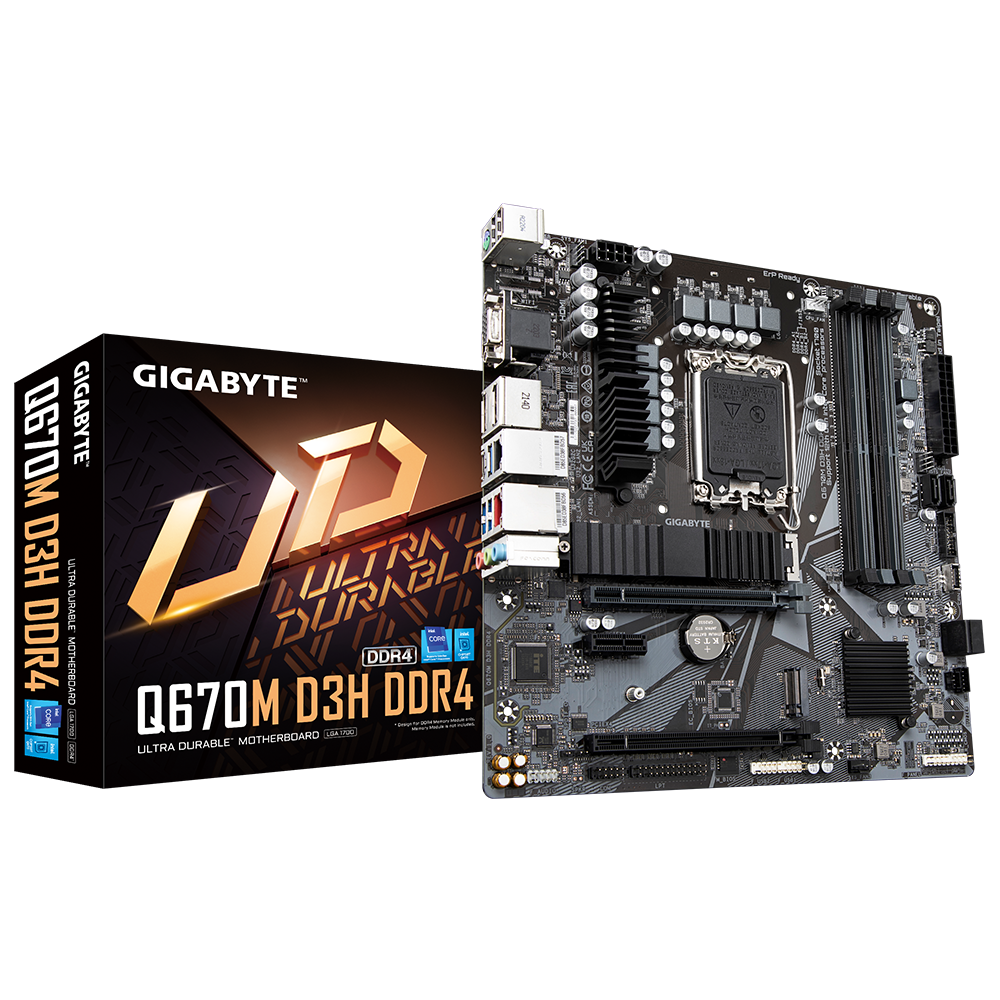

Gigabyte Q670M D3H DDR4 , Intel Q670, LGA1700, 4xDDR4, mATX Q670M D3H DDR4#baz

REPAIRED!!


Intel® Q670 Motherboard with 6+1+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2 with Thermal Guard, Dual Intel GbE LAN, Rear USB 3.2 Gen 2 Type-C®

   Supports Intel® Core™ 14th/ 13th /12th processors
   Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs??
   6+1+1 Phases Hybrid Digital VRM with MOS Heatsink??
   Dual GbE LAN with Bandwidth Management??
   Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with One Thermal Guard
   Rear USB 3.2 Gen 2 Type-C® for Fast and Versatile Connections??
   High Quality Audio Capacitors and Audio Noise Guard?
   Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP??
   Support Intel® vPro™ Technology


   LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
   L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.
Chipset
   Intel® Q670 Express Chipset
Memory
   Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
   4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
   Dual channel memory architecture
   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
   1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
   1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support native HDMI 2.1 TMDS compatible ports.
   1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
   * Support for DisplayPort 1.2 version and HDCP 2.3
   1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
   * Support for DisplayPort 1.2 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to 4 displays at the same time
Audio
   Realtek® Audio CODEC
   High Definition Audio
   2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
   Support for S/PDIF Out
LAN
   Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
   Intel® GbE LAN chip (1 Gbps/100 Mbps) (LAN2)
Expansion Slots
CPU:
   1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
   1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
   1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Storage Interface
CPU:
   1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
   1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P_SB)
   4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 5 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connector supported by the Chipset.
USB
Chipset:
   1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
   1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
   5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
   6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x CPU fan header
   3 x system fan headers
   2 x M.2 Socket 3 connectors
   4 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x S/PDIF Out header
   1 x USB Type-C® header, with USB 3.2 Gen 1 support
   1 x USB 3.2 Gen 1 header
   2 x USB 2.0/1.1 headers
   2 x Thunderbolt™ add-in card connectors
   1 x serial port header
   1 x parallel port header
   1 x Clear CMOS jumper
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

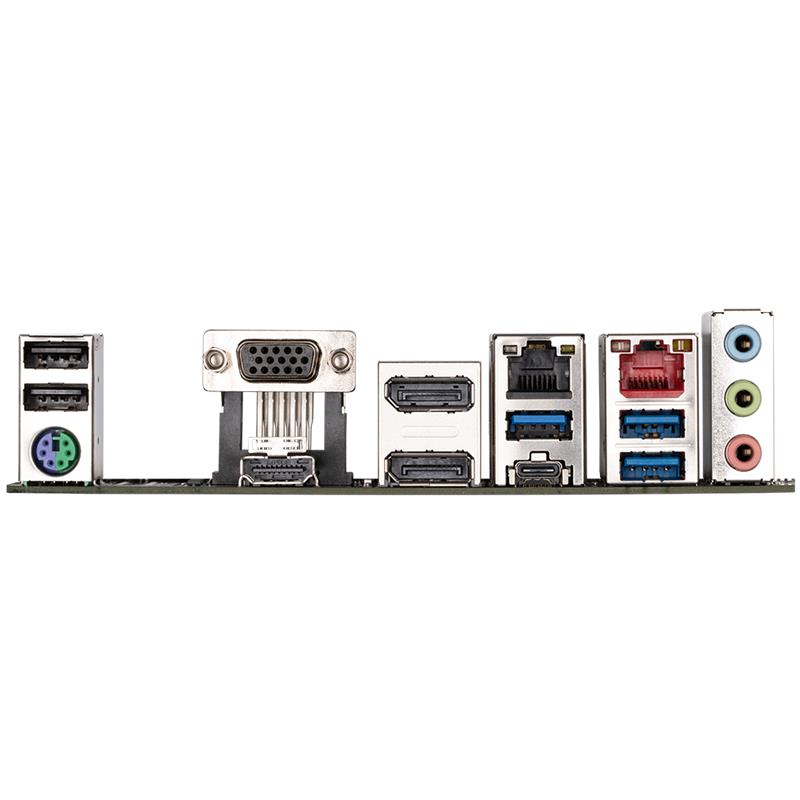

Back Panel Connectors
   1 x PS/2 keyboard/mouse port
   1 x D-Sub port
   1 x HDMI port
   2 x DisplayPorts
   1 x USB Type-C® port, with USB 3.2 Gen 2 support
   3 x USB 3.2 Gen 1 ports
   2 x USB 2.0/1.1 ports
   2 x RJ-45 ports
   3 x audio jacks
Operating System
   Support for Windows 11 64-bit
   Support for Windows 10 64-bit
Form Factor
   Micro ATX Form Factor; 24.4cm x 24.4cm
