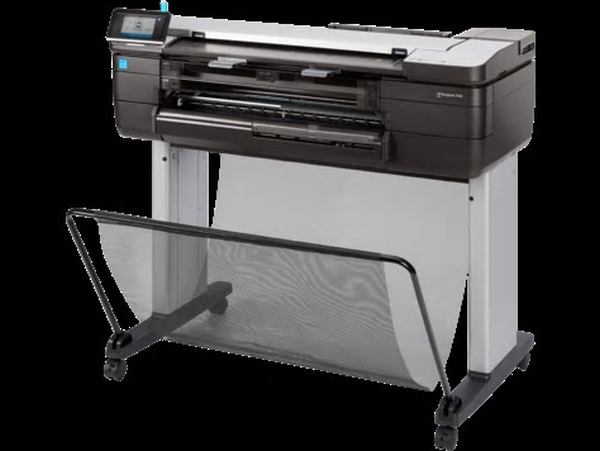

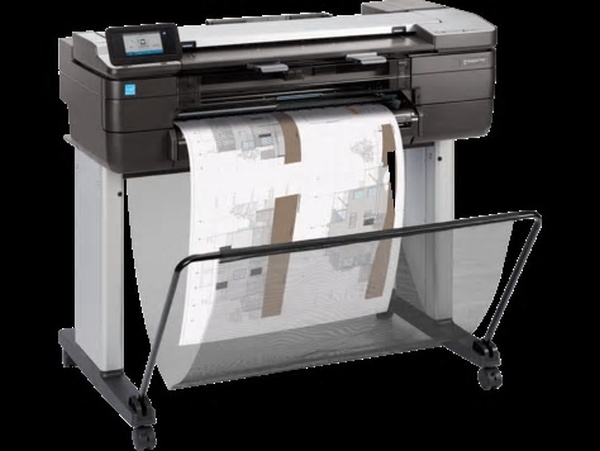

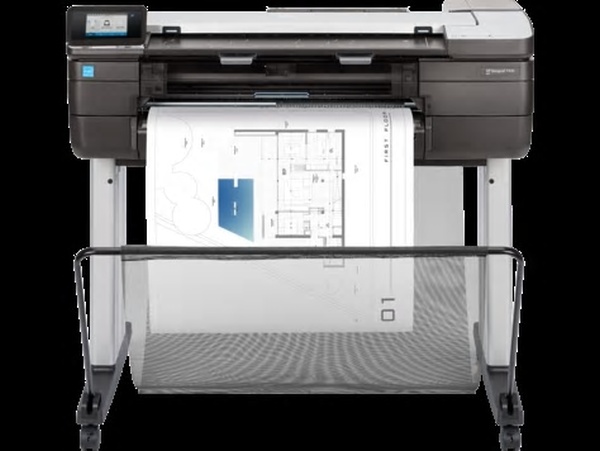

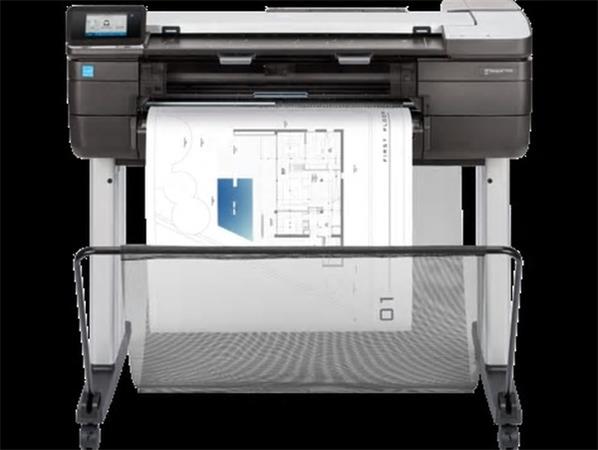

HP DesignJet T830 24" MFP (A1+, USB 2.0, Ethernet, Wi-Fi) F9A28A

HP DesignJet T830 24-in Multifunction Printer

Model size 610 mm Functions Print, copy, scan

Speed specifications

Speed specifications
Print speed line drawing (economode, D plain paper) 81 D prints per hour[1]

Memory specifications

Memory specifications
Memory 1 GB
Internal Storage None

Technical specifications

Print quality (best)Color: Up to 2400 x 1200 optimised dpi
Number of print cartridges 4 (cyan, magenta, yellow, matte black)

Ink types Dye-based (C
M
Y); pigment-based (mK)

Line accuracy ±0.1%[2] Maximum optical density (black) 8 L* min/2.10 D
Scan resolution, optical Up to 600 dpi
Enhanced scanning resolution 600 dpi
Scanner type Sheetfed, CIS (Contact Image Sensor)
Scan size, minimum 203 x 127 mm Copy reduce / enlarge settings 50 to 400%
Copies, maximum Up to 99 copies
Bit depth 24-bit/8-bit

Paper handling
Finished output handling Sheet feed, roll feed, input tray, media bin, automatic cutter
Media types Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
Media sizes, custom Input tray: 210 x 279 to 330 x 482 mm
manual feed: 330 x 482 to 610 x 1897 mm
roll: 279 to 610 mm
Media thickness Up to 11.8 mil

Connectivity
HP ePrint capability Yes
Printing path Windows and Mac printer drivers, Apple AirPrint, HP Print Service Plugin for Android, HP Print for Chrome app for Chrome OS
Connectivity, standard
Gigabit Ethernet (1000Base-T)
Wi-Fi 802.11b/g/n
Wi-Fi Direct
USB Type-A host port
Print languages TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL, URF

Power and operating requirements
Power consumption 35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)
Operating temperature range 5 to 40oC
Operating humidity range 20 to 80% RH

Dimensions and weight
Dimensions (W x D x H) 1098 x 629 x 1155 mm
Weight 51 kg
