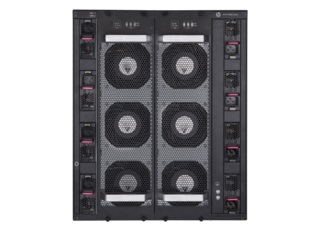

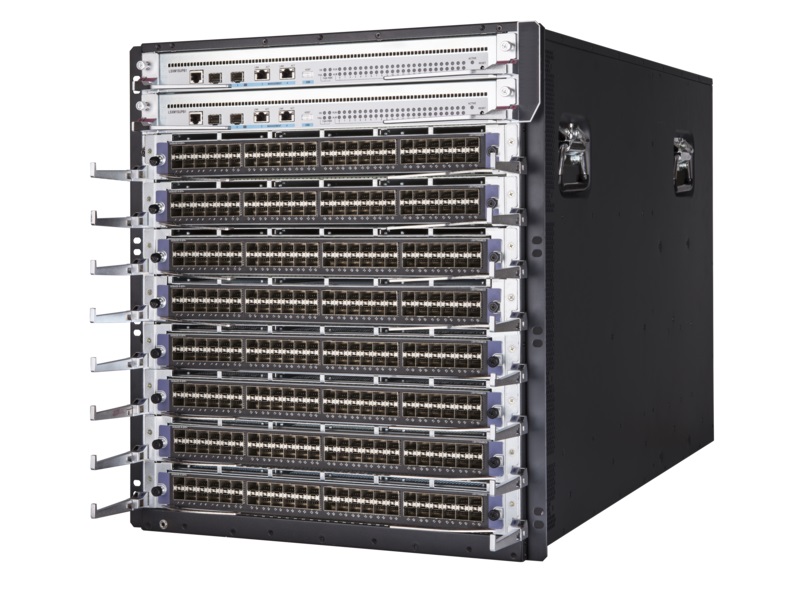

HPE 12908E Switch Chassis JH255A

HPE FlexFabric 12908E Switch Chassis The HPE FlexFabric 12900E Switch Series is a next-generation modular data center core switch designed to support virtualized data centers and the evolving needs of private and public cloud deployments. It offers unprecedented levels of performance, buffering, scale, and availability with high-density GbE, 10GbE, 40GbE and 100GbE connectivity. The switch series includes 1-, 2-, 4-, 8- and 16-slot chassis. Ready for software-defined networking (SDN), the HPE FlexFabric 12900E Switch supports a full Layer 2 and 3 feature set as well as advanced data center features to build resilient scalable fabrics and deliver outstanding convergence times Differentiator 16-slot horizontal chassis, 12U, with 2 MPU slots, 6 switch fabric slots and 8 I/O slots Ports (8) I/O module slots Supports a maximum of 384 10GbE ports or 384 1/10GBASE-T ports or 384 1/10GbE ports or 384 Gigabit Ethernet ports or 384 autosensing 10/100/1000 ports or 384 40GbE ports or 288 100GbE ports, or a combination Memory and processor Quad Core MIPS64 @ 1.2 GHz 1 GB flash 8 GB DDR3 SDRAM Throughput up to 46.0 Bpps Switching capacity 92.0 Tbps Stacking capabilities IRF 2 switches Management features IMC - Intelligent Management Center Command-line interface Out-of-band management (serial RS-232C) SNMP manager Telnet Terminal interface (serial RS-232C) Modem interface IEEE 802.3 Ethernet MIB Ethernet interface MIB Input voltage 100 - 240 VAC, rated -48 to -60 VDC, rated (depending on power supply chosen) Product dimensions (H x W x D) 17.32 x 33.74 x 20.91 in Weight 103.62 lb odkaz na stránky výrobce https://www.hpe.com/us/en/product-catalog/networking/networking-switches/pip.specifications.hpe-flexfabric-12908e-switch-chassis.8703379.html
