Popis produktu:

Key Features

   PCIe Gen5 Performance : Perfect Sync to Win
   Supports Intel® Core™ 14th/ 13th/12 processors
   Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
   EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
   PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
   Unparalleled Performance : Hybrid 8+1+1 Phases VRM Solution
   Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
   Fast Networks : 2.5GbE LAN
   Extended Connectivity : Front USB-C® 10Gb/s, DP, HDMI
   Next Generation Storage : 3*PCIe 4.0 x4 M.2 Connectors
   Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
   Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

   CPU
   LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™,
   Pentium® Gold and Celeron® Processors
   (Go to GIGABYTE's website for the latest CPU support list.)
   ?L3 cache varies with CPU

   Chipset
   Intel® B760 Express Chipset

   Memory
   Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
   4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
   Dual channel memory architecture
   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for Extreme Memory Profile (XMP) memory modules
   (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

   Onboard Graphics
   Integrated Graphics Processor-Intel® HD Graphics support:
   - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

   * Support for DisplayPort 1.2 version and HDCP 2.3

   - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support for native HDMI 2.1 TMDS compatible ports.

   (Graphics specifications may vary depending on CPU support.)

   Audio
   Realtek® Audio CODEC
   High Definition Audio
   2/4/5.1/7.1-channel

   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

   Support for S/PDIF Out

   LAN
   Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

   Expansion Slots
   CPU:
   - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

   * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

   Chipset:
   - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

   Storage Interface
   CPU:
   - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
   Chipset:
   - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
   - 4 x SATA 6Gb/s connectors
   ?RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

   USB
   Chipset:
   - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
   - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
   - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
   - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
   - 1 x USB 2.0/1.1 port on the back panel
   Chipset+2 USB 2.0 Hubs:
   - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

   Internal I/O Connectors
   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x CPU fan header
   1 x CPU fan/water cooling pump header
   3 x system fan headers
   1 x system fan/water cooling pump header
   3 x addressable RGB Gen2 LED strip headers
   1 x RGB LED strip header
   3 x M.2 Socket 3 connectors
   4 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x S/PDIF Out header
   1 x USB Type-C® header, with USB 3.2 Gen 2 support
   1 x USB 3.2 Gen 1 header
   2 x USB 2.0/1.1 headers
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
   1 x serial port header
   1 x Q-Flash Plus button
   1 x reset jumper
   1 x Clear CMOS jumper

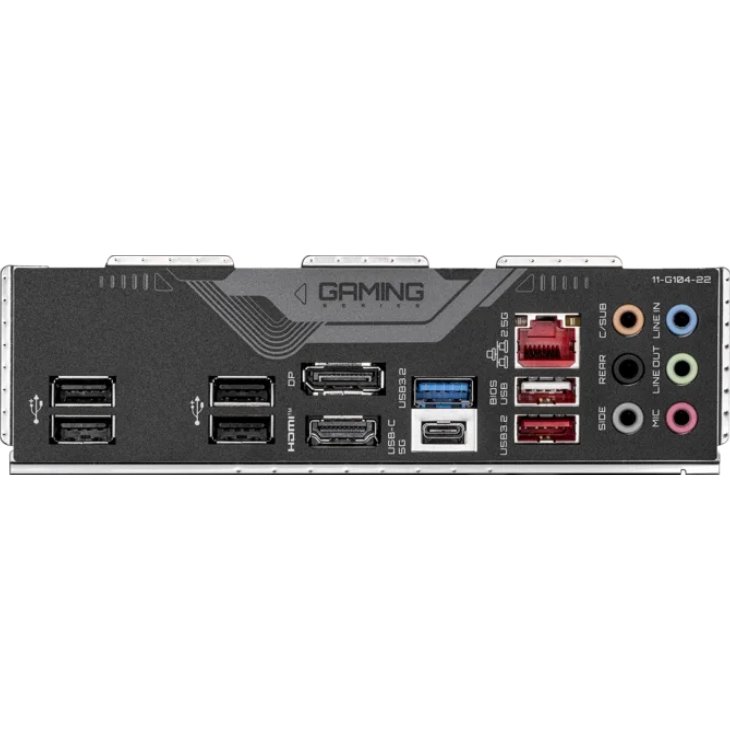

   Back Panel Connectors
   1 x USB 3.2 Gen 2 Type-A port (red)
   1 x USB Type-C® port, with USB 3.2 Gen 1 support
   1 x USB 3.2 Gen 1 port
   5 x USB 2.0/1.1 ports
   1 x DisplayPort (Note)
   1 x HDMI port (Note)
   1 x RJ-45 port
   6 x audio jacks

   (Note) Actual support may vary by CPU.

   I/O Controller
   iTE® I/O Controller Chip

   H/W Monitoring
   Voltage detection
   Temperature detection
   Fan speed detection
   Water cooling flow rate detection
   Fan fail warning
   Fan speed control

   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

   BIOS
   1 x 256 Mbit flash
   Use of licensed AMI UEFI BIOS
   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

   Unique Features
   Support for GIGABYTE Control Center (GCC)

   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

   Support for Q-Flash
   Support for Q-Flash Plus
   Support for Smart Backup

   Bundled Software
   Norton® Internet Security (OEM version)

   Operating System
   Support for Windows 11 64-bit
   Support for Windows 10 64-bit

   Form Factor
   ATX Form Factor; 30.5cm x 24.4cm
