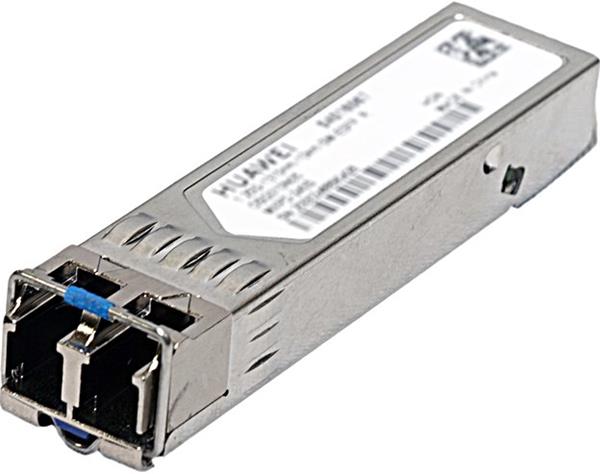

Huawei Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) eSFP-GE-SX-MM850

Part Number 2315204
Model eSFP-GE-SX-MM850
Description Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC)
Level-1 category GE eSFP Optical Modules
Module name eSFP-GE-SX-MM850
Connector type LC/DLC
Optical fiber type MMF
Form factor eSFP
Transmission rate [bit/s] 1G
Target transmission distance [km] Multimode optical fiber (diameter: 62.5 µm): 220 m Multi-mode (OM1) optical fiber (diameter: 62.5 µm): 275 m Multimode optical fiber (diameter: 50 µm): 500 m Multimode (OM2) optical fiber (diameter: 50 µm): 550 m
Application standard/Type 1000BASE-SX
Working case temperature [°C(°F)] -20°C to +85°C (-4°F to +185°F)
Type of the end face of the fiber ceramic ferrule PC or UPC
DDM options Supported
Modal bandwidth [MHz*km] Multimode optical fiber: 160 MHz*km Multi-mode (OM1) optical fiber: 200 MHz*km Multimode optical fiber: 400 MHz*km Multi-mode (OM2) optical fiber: 500 MHz*km
Center wavelength [nm] 850
Overload power (AVG) [dbm] 0
Minimum Tx optical power (AVG) [dbm] -9.5
Maximum Tx optical power (AVG) [dbm] -2.5
Minimum extinction ratio [db] 9
Rx sensitivity (OMA) [dbm] -17
