Popis produktu:

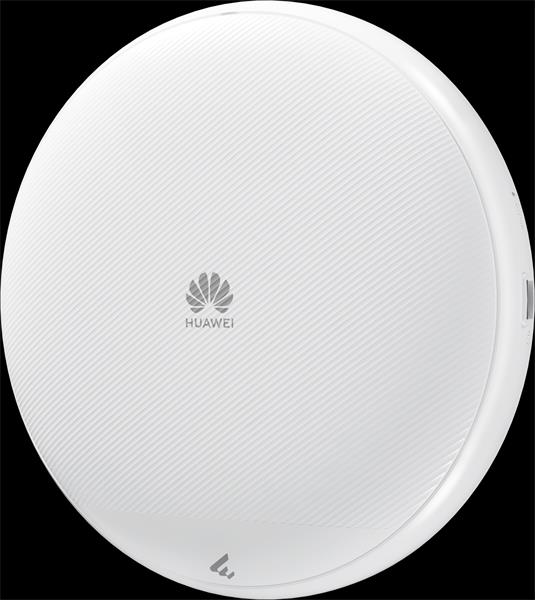

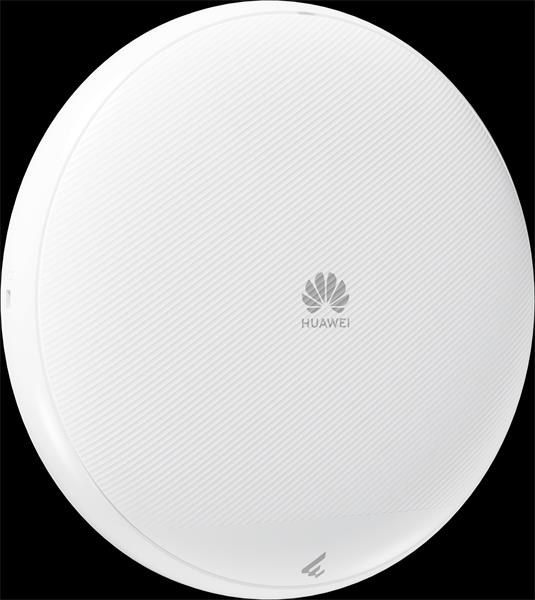

Settled AP | Wi-Fi 7 | 13.66 Gbps device rate | Tri-radio | 300 access users recommended | Max. 1024 access users | 26 dBm transmit power | 1 x 100M/GE/2.5GE/5GE electrical port, 1 x 10M/100M/GE electrical port, 1 x USB port | Smart antenna | 30 m optimal coverage range

First supported version
V600R024C00

Installation Type
Wall,Ceiling,T-Rail

Dimensions without packaging (H x W x D) [mm(in.)]
Diameter x depth: 220 mm x 45 mm (8.66 in. x 1.77 in.)

Dimensions with packaging (H x W x D) [mm(in.)]
72 mm x 260 mm x 255 mm (2.83 in. x 10.24 in. x 10.04 in.)

Weight without packaging [kg(lb)]
0.745 kg (1.64 lb)

Weight with packaging [kg(lb)]
1.230 kg (2.71 lb)

CPU
4-core, 1.0 GHz

Memory
DDR4 512 MB

Console port
Bluetooth console

Power supply mode
PoE,DC power adapter

Storage
NAND Flash 512 MB

Rated input voltage [V]
12 V

Input voltage range [V]
DC: 12 V ± 10% PoE: 802.3at/af

Service port surge protection
PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B

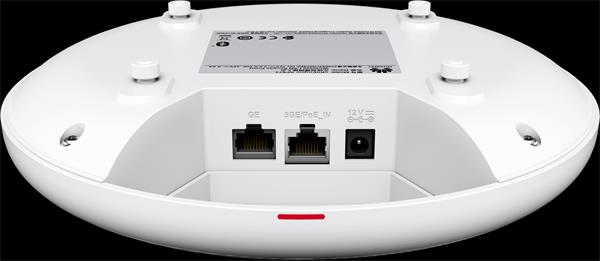

Maximum number of physical ports on the entire device
5GE (RJ45) x 1, 100M/1000M/2500M/5000M auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing

Long-term operating temperature [°C(°F)]
–10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)

Storage temperature [°C(°F)]
–40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH]
5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)]
–60 m to +5000 m (–196.85 ft to +16404.20 ft)

Atmospheric pressure [kPa]
53kPa - 106kPa ETSI 300 019-2-3

Ground
floating ground

USB
USB 3.0 is unavailable currently and will be supported through software upgrade in the future.

BLE
BLE5.2

Radio number
3

MIMO spatial streams
Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 Radio 2 (6 GHz): 4x4

Wi-Fi standard
2.4 GHz: 802.11b/g/n/ax/be 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be 6 GHz: 802.11a/n/ac/ac Wave 2/ax/be

Radio interface
Built-in smart antennas

Antenna gain
2.4 GHz: 4 dBi/chain (peak gain) 2 dBi (combined gain) 5 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) 6 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) BT: 4 dBi

Maximum transmit power
2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz (2x2): 20 dBm/chain 23 dBm (combined power) 6 GHz (4x4): 20 dBm/chain 26 dBm (combined power) BLE: < 10 dBm

3G/LTE filte (ACC)
Supported

MTBF [year]
110.878

MTTR [hour]
2

Maximum power consumption [W]
21.1 W (excluding USB)

Maximum heat dissipation [BTU/hour]
66

802.3bt power supply description
The power supply mode is negotiated to 802.3at. When the 5 W USB port is used, the maximum transmit power of radios 0, 1, and 2 decreases by 3 dBm. Other functions are not restricted.

802.3at power supply description
The power supply mode is negotiated to 802.3at. When the 5 W USB port is used, the maximum transmit power of radios 0, 1, and 2 decreases by 3 dBm. Other functions are not restricted.

802.3af power supply description
The power supply mode is negotiated to 802.3af. Wi-Fi service: A maximum of 2.4 GHz (2x2) + 5 GHz (2x2) is supported. The USB is unavailable. Other functions are not restricted.

DC power supply description
No function is limited.

Operating frequency band
2.4GHz,5GHz,6GHz

Frequency stability [ppm]
+/-20
