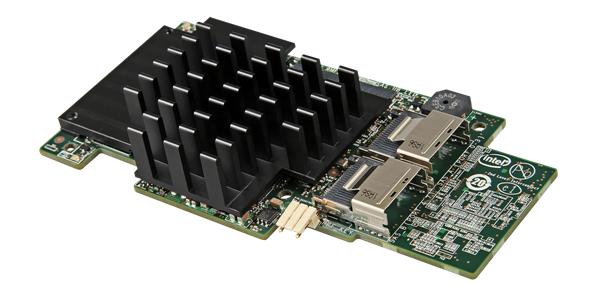

Intel® Integrated Server RAID Module RMS25CB040

SPECIFICATIONS-Essentials
Status Launched
Launch Date Q1'12
Expected Discontinuance 2H '17
Description Intel® Integrated RAID Module RMS25CB080, SIOM Connector, LSI2208 ROC, 8P Internal SAS, MegaRAID SWStack, 1GB DDR3, R0,1,10,5,50,6,60
Target Market Mainstream
Board Form Factor Storage IO Slot Mezzanine Module
Data Transfer Rate 6 Gb/s
Supported Devices SAS/SATA
Supported Operating Systems Windows, Linux, VMWare (see THOL)
Compatible Battery Backup Options Intel® RAID Smart Battery AXXRSBBU9 and Intel® RAID Maintenance Free Backup AXXRMFBU2
RAID Level Supported 0, 1, 5, 6, 10, 50, 60
# of Ports Internal 8
# of Ports External 0
# of Devices Supported 128
Embedded Memory 1 GB
PCIe Host Interface PCI Express 2 x8
IO Processor Model LSI2208
Extended Warranty Available for Purchase (Select Countries) Yes
Included Items RAID Controller module, Quick Start User Guide, Mounting standoffs. Note: Cables sold separately
Recommended Customer Price N/A
