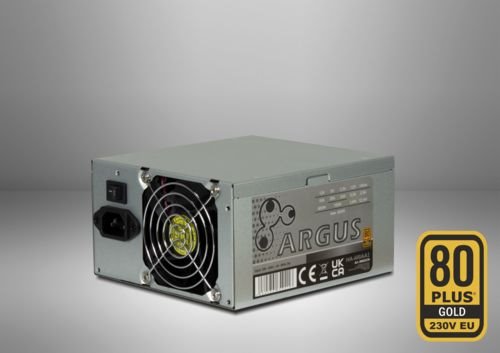

INTER-TECH zdroj server IPC HA-600AA2 600W 88882239

Features

600Watt power supply
80PLUS EU Gold
Rear-mounted 80mm fan
Numerous connections for mainboard, drives and peripherals

Input
Input voltage
Frequency
Power consumption
AC 200 - 240 V~
50 Hz
8A @230V

Output
Output voltage
+ 3.3V
+ 5V
+ 12V
- 12V
+ 5Vsb
Total rated power
Rated power 3.3V + 5V
Voltage tolerance
Ripple/ Noise
Rated current
max. 20A
max. 20A
max. 50A
max. 0.3A
max. 2.5A
max. 600W
max. 100W
+/- 3%
<50mV @ +3.3V, +5V, +5Vsb
<100mV @ +12V
<120mV @ -12V

Safety
Overload protection
Overvoltage protection
Overcurrent protection
Short-circuit protection
No Load Protection
+
+
+
+
+

Economic data
Effiziecy
@ 10% load
@ 20% load
@ 50% load
@ 100% load
Standby power consumption
MTBF

84.51 %
90.01 %
92.26 %
91.03 %
< 0.30 W
100.000 hrs

Environmental
Temperature

Humidity

Altitude
0°C - 40°C (operating)
-20°C - 90°C (storage)
up to 85% (operating, non condensing)
up to 95% (storage, non condensing)
0 - 5000m (operating)
0 - 5000m (storage)

Scope of delivery

Power supply
Power cord
Screws
Cable ties
Manual
