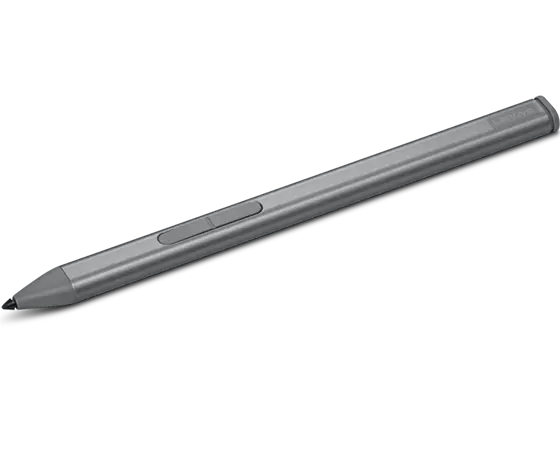

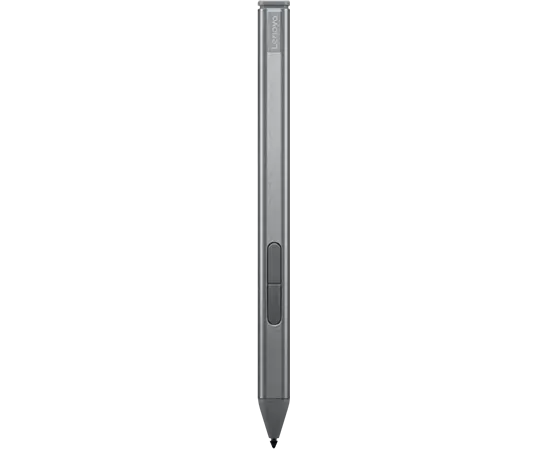

Lenovo Slim Pen 4X81P44052

Part Number
4X81P44052

Key Details:
Diameter 9.5mm
Supported WGP, MPP2.0, AES2.0, and AES1.0 protocols
Paper like writing
Up to 4096 levels of pressure sensitivity
Supported tilt detection
Rechargeable battery
Supported magnetical attachment

Tech Specs
Color
Storm Grey
Battery Life
From new battery to Shut down (continuous use) AES1.0 : Approximately 250 [hours] AES2.0 : Approximately 220 [hours] WGP : Approximately 160 [hours] MPP2.0 : Approximately 170 [hours] Sleep : Approximately 310 [days]
Weight
10. 4 ± 0.5
Hardware Requirements
Operating Temperature:+0~+40? Humidity: +0~+90%
Warranty Type
Customer Replaceable Unit (CRU)
Brand
Lenovo
OS Requirements
Windows 11
Packed Weight
65g
Agency Approvals
FCC(EMC) IC(EMC) CE(EMC) CB UKCA SABS CoC VCCI(EMC) KC(EMC)
Package Type
Brown Box
Packed Dimensions (L x D x H)
225*55*25mm
Length
131.9mm
Special/Added Features
Magnet, Type-C charging
Warranty Period
1 Year
Maximum Operating Temperature
40?
Minimum Operating Temperature
5?
Maximum Relative Humidity (%)
80%
Minimum Relative Humidity (%)
30%
Battery Charging Time
Approximately 160 [min.] at Room Temperature
Included Accessory
Common Warranty*1 User Guide*1 Slim Pen*1
Diameter
Width: 9. 6 [mm] (body), Thickness: 1 [mm]
Input Rating Voltage
5V
Oscillating Frequency
1.8Mhz
Presure Resolution
Up to 4096 levels, depends on touch IC’s F/W setting
Shifting Time to Sleep
Condition : Tip switch / Side switch free Shift to Sleep mode after approximately 10 [min.] Condition : Tip switch or / and Side switch press Shift to Off mode after approximately 4 [min.]
