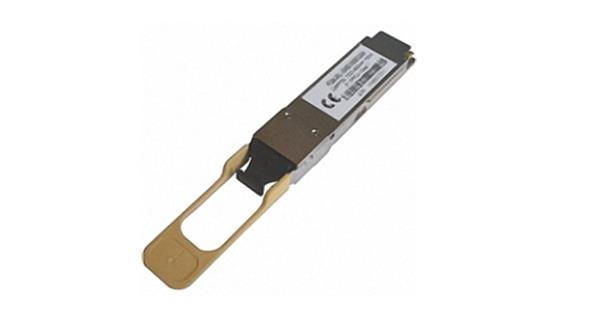

QSFP28 transceiver 100G SR4 850nm 100M QSFP-100G-MM-100M

Popis
Tento QSFP28 je modul vysielača a prijímača pre 100 Gbit/s a vyhovuje štandardu QSFP28 MSA a IEEE 802.3bm 100GBASE-SR4.
Vnútorne obsahuje vysielač a prijímač pre 4x 25 Gbit/s cez 850nm multimódové vlákno.

Vhodné pre 100 Gigabit Ethernet a dátové centrum.

Modul je vybavený MPO konektorom.

Product Features
Hot pluggable QSFP28
QSFP28 MSA IEEE 802.3bm, 100G BASE SR4 Ethernet standard
DDM function, Digital Diagnostic Monitoring
MPO Multimode QSFP28 transceiver
Management interface specifications as per SFF-8636
850nm Quad VCSEL Laser
4-channel PIN photo detector
up to 70 m reach on OM3 fiber
up to 100 m reach on OM4 fiber
Power supply +3.3V power supply
Compliant with IEC 60950-1, 60825-1 and 60825-2 Class 1 / CDRHClass I Laser Eye Safety
RoHS 6 compliant
Temperature range: 0°C to 70°C
