Supermicro Hybrid M.2 NVMe/SATA SSD RAID 0,1 Card x8 PCIe Gen4 Host interface AOC-SLG4-2H8M2

upermicro Low Profile 2x PCIe Gen 4 Hybrid NVMe/SATA M.2 RAID Carrier

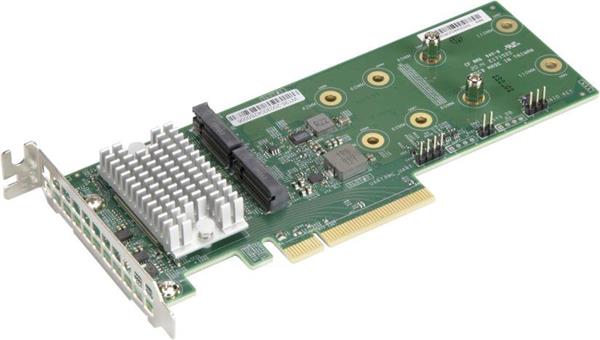

The Supermicro MegaRAID Low Profile AOC-SLG4-2H8M2 is a PCIe Gen 4.0 x8 M.2 SSD carrier card that enables the user to add up to two NVMe or SATA M.2 SSDs. M.2 solid state technology is an optimized, high-performance, scalable storage solution, effectively streamlined for enterprise and client systems that leverage the cutting-edge power of PCI Express 4.0 technology. AOC-SLG4-2H8M2 supports adjustable stand-offs in 22110, 2280, & 2242 M.2 SSD form factors with RAID 0 and RAID 1.
AOC-SLG4-2H8M2
This product is only available through Supermicro.
Compatible with Supermicro motherboards only.
Product Note: Supermicro AOC-SLG4-2H8M2, as a Gen 4 NVMe M.2 adapter, is carrying its new accessory - a uniquely designed heatsink - when being compared to the previous gen product - AOC-SLG3-2H8M2 - for Gen 3 NVMe M.2 and without heatsink. While adopting 22x110mm M.2s, it is suggested to ONLY select the M.2s qualified by referencing each system’s AVL with AOC-SLG4-2H8M2.
Compliance
RoHS
RoHS Compliant 6/6, Pb Free
Key Features
Broadcom 3808 SAS controller, dual M-Key sockets, 16 Gb/s per port, with RAID 0 and 1.
• Broadcom SAS3808 I/O RAID Controller
• x8 PCIe Gen4 Host interface
• Dual M-Key sockets (for 2x M.2 SSD)
• Adjustable stand-offs supporting 22110, 2280, & 2242 M.2 SSD form factors
• Support NVMe Gen 4 (16 Gbps) M.2 modules and SATA Gen 3 (6 Gbps) M.2 modules
• Supports RAID 0 and RAID 1
• Support MCTP over PCIe/ I2C
• Support BMC-enabled management
• Support secure erase
• Support hardware secure boot
• Support on-board LEDs for SSD Activity and Status
• UEFI Configuration utility
• OS Support: Windows, Linux, and VMWare
• Power Consumption: 7W (AOC only, maximum; M.2 power consumption excluded)
• Thermal operating range: System dependent (55°C or higher w/ enough airflow)
