Popis produktu:

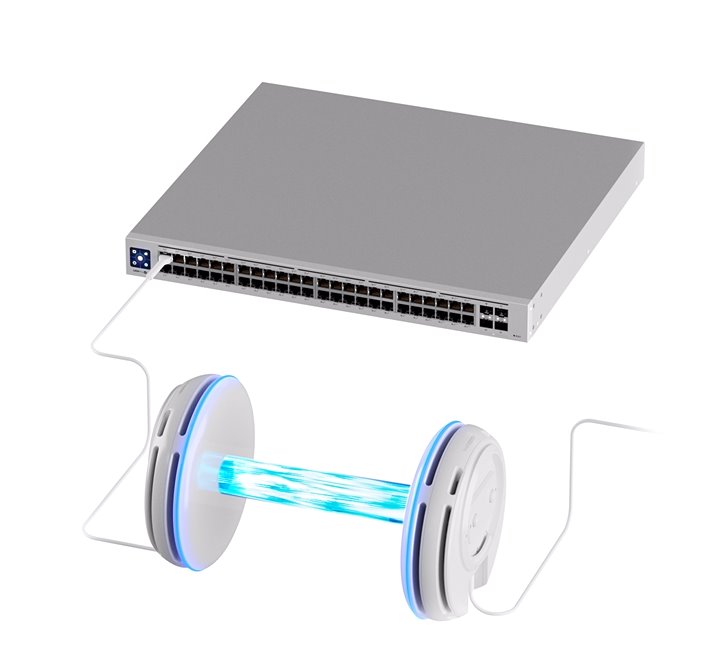

60 GHz beztrátový point-to-point bridge s porty 10G SFP+ uplink pro maximální propustnost

- 500 m maximum dosah
- 60 GHz & 5 GHz dual-radio s redundancí (záložním kmitočtem 5GHz)
- (1) 10G SFP+ a (1) GbE PoE++ port
- napájení přes PoE++*
- jednoduché zaměření pomocí integrovaných LED

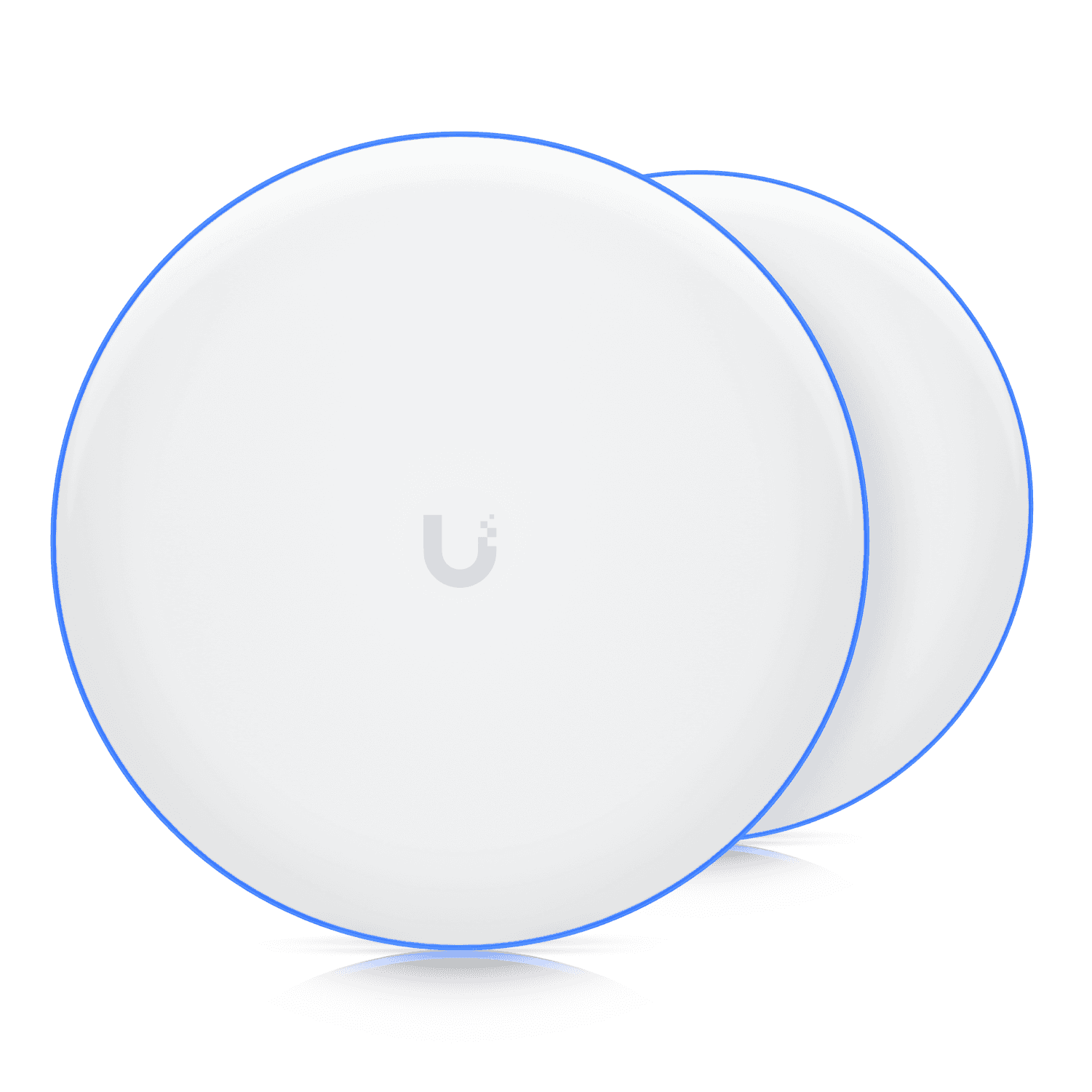

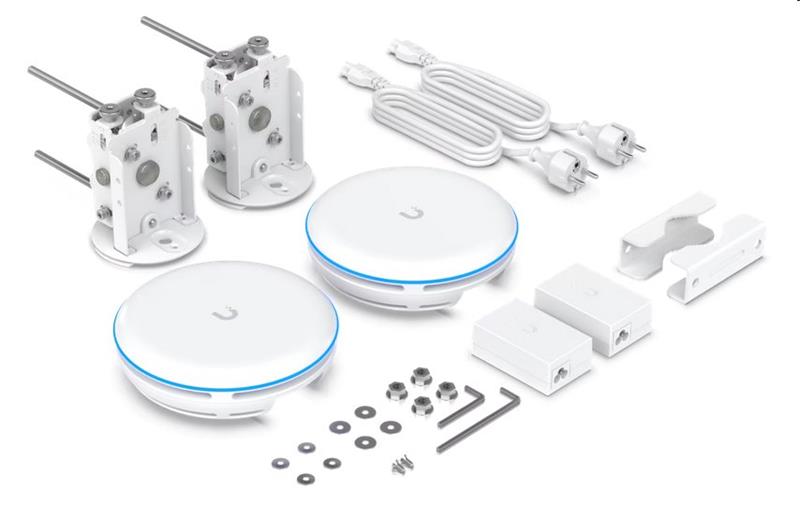

- balení obsahuje 2 zařízení - kompletní spoj
pozn: nelze nastavit samostatně a provozovat bez příslušného UniFi controlleru
*POE++ adaptér je součástí balení

Technical Specifications
Mechanical

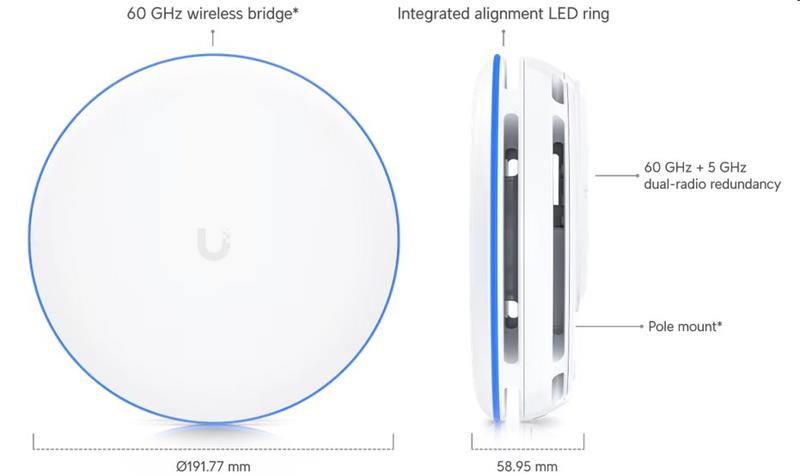

Dimensions O191.8 x 59 mm (O7.6 x 2.3")
Weight Without mount: 1.7 kg (3.8 lb)
With mount: 2.9 kg (6.3 lb)
Enclosure material Aluminum alloy, UV-resistant polycarbonate
Mount material Stainless steel
Pole mount diameter 1-2.5" on pipe outer diameter
Weatherproofing IPX6


Hardware

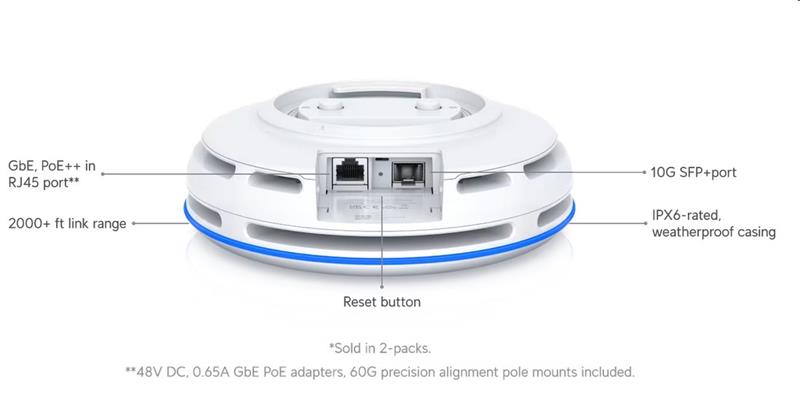

Networking interface (1) GbE RJ45 port
(1) 1/10G SFP+ port
Management interface Ethernet
Bluetooth
Power method PoE++
                      Passive PoE:
                      4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
                      2-pairs (4, 5+; 7, 8-)
Power supply UniFi PoE switch
                     48V, 0.65A Gigabit PoE adapter (included)
Supported voltage range 48V DC ± 10%
Max. power consumption 31.2W
Max. TX power
2.4 GHz  ---
5 GHz  23 dBm
6 GHz  ---
60GHz  16dBm

MIMO
2.4 GHz  ---
5 GHz    2x2
6 GHz   ---

Max. data rate
2.4 GHz   ---
5 GHz   866.6 Mbps (BW80)
6 GHz  ---
60GHz   6 Gbps (60 GHz)

Antenna gain
2.4 GHz   ---
5 GHz   14 dBi
6 GHz  ---
60GHz   21dBi

Maximum range 500 m (1,640 ft)
LEDs R/G/B
Button Factory-reset

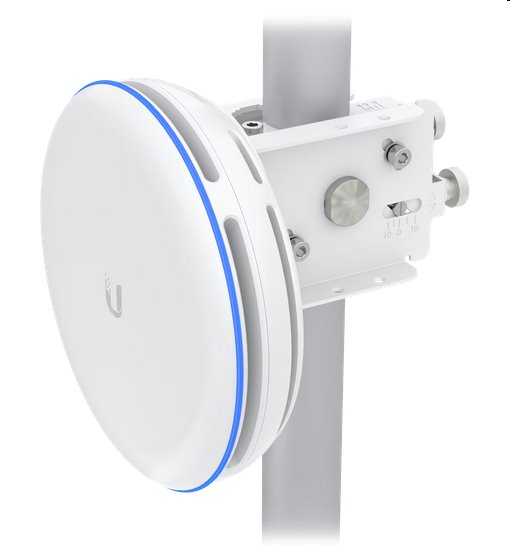

Mounting 60G precision alignment pole mount (Included)
Ambient operating temperature -40 to 55° C (-40 to 131° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE, terragraph


Software
WiFi standards 802.11a/b/g/n/ac
Wireless security WPA2 AES (Always On)
Operating modes PtP
VLAN Management VLAN only
RF
Operating frequency* 57 to 66 GHz
*Dependent on regional regulations.
Channel bandwidth 2,160/4,320 MHz (Channel Bonding Enabled)
Operating channels* 58,320/59,400/60,480/61,560/62,640/63,720/64,800 MHz
*Dependent on regional regulations.
Backup RF
Operating frequency*
US/CA
U-NII-1: 5,150 - 5,250 MHz
U-NII-2A: 5,250 - 5,350 MHz
U-NII-2C: 5,470 - 5,725 MHz
U-NII-3: 5,725 - 5,850 MHz

Worldwide
5,150 - 5,725 MHz
*Dependent on regional regulations.
Channel bandwidth 20/40/80 MHz


Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40))
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
